Lite-ON LH20A1S

Aug 2,2007 0

4. DVD Error Correction



Review Pages

1. Introduction
2. CD - DVD Reading
3. CD Error Correction
4. DVD Error Correction
5. CMC Magnetics CDR
6. Verbatim - CDR
7. Mitsubishi Kagaku - CDRW
8. DaTARIUS DVD Analyzer R 2x
9. TYG03
10. MCC 03RG20
11. TTH02
12. TTG02
13. ProdiscS05
14. ProdiscF01
15. OPTODISC R016
16. Infodisc-R20
17. CMC MAG AE1
18. YUDEN000 T03
19. MCC 004 (000)
20. RITEK R04
21. RICOHJPN R03 (004)
22. PRODISC R04 004
23. OPTODISC R16 000
24. OPTODISC OR8
25. DAXON AZ3 (000)
26. CMC MAG M01 000 (00)
27. RICOHJPN D00 001
28. MKM 003 000
29. MKM 03RD30
30. MKM A03 000
31. MKM 01RW6X01
32. Media List
33. Conclusion



DVD Error Correction

In the following tests, we examine the DVD reading capabilities of the drive (error correction) with scratched / defective DVD media. For the tests, we used CDVD Benchmark and Nero CDSpeed. The reference test media comes from ALMEDIO.

- Single Layer media

ABEX TDR-821

This is a single sided, single layer DVD-ROM with a 4.7GB capacity, and its surface has an artificial scratch of dimensions varying from 0.4 to 3.0 mm.

ABEX TDR-825

This is also a single sided, single layer DVD-ROM of 4.7GB capacity. The data structure of the disc is exactly the same as that of the TDR-821, with the difference that there are no scratches on it but instead, defective areas of dimensions ranging from 0.5 to 1.1 mm. There are also fingerprints sized between 65 and 75 micrometers.

- Dual Layer media

ABEX TDR-841

This is an 8.5GB dual layer, single sided DVD-ROM disc with artificial scratches of dimensions ranging from 0.4 to 3.0mm, on both layers.

ABEX TDR-845

The disc is a single sided, dual layer DVD-ROM disc with a capacity of 8.5GB. The only difference between the TDR-845 and the TDR-841 is that the first includes defective areas and fingerprints.

Our drive here had some hard time reading both middle of the first and the second layer that is why we see the sharply drop down of the speed, but managed to finish the test correctly.

ABEX TDV-541

The TDV-541 is a single sided, dual layer DVD-VIDEO disc, with a capacity of 8.5GB.The disc is based upon the TDV-540 series which is designed for inspection and adjustment of DVD-VIDEO players. The disc checks the layer switch operation from layer 0 to layer 1 and also includes test pictures and test signals for DVD sound files.

The speed fluctuates dramatically around the layer change where the drive had some hard times reading the disc.

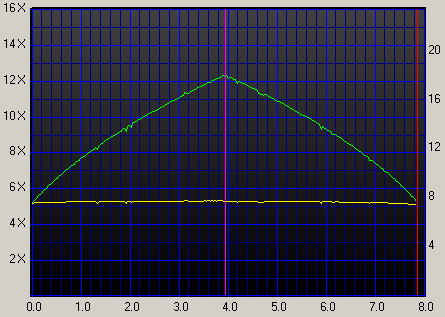

ABEX TDV-545

The TDV-545 disc is based on the TDV-540 series. It is a single sided, dual layer DVD-VIDEO disc with a capacity of 8.5GB.The TDV-545 includes artificial black dots on the data surface, sized from 0.4 to 1.0 mm. It also has 65 - 75 micrometer fingerprints.

A flawless reading here, easily overcoming any defects.

Much better at handling DVD defects. Other than the TDV-541 disc, the drive read all other test discs with a near perfect performance.
