We burned some DVD+R DL and DVD-R DL discs with data content. For this task we used "Create Data Disc" from Nero CDSpeed in order to fully burn the discs.
Traxdata DVD+R DL 2.4X @ 2.4X
The drive started burning the media at 2.47X and maxed out at 2.48X with an average of 2.47X using CLV writing strategy. Burning ended after 43:34mins.
Verbatim DVD+R DL 2.4X @ 8X
Using Z-CLV writing strategy, burning started at 4.04X reaching a max speed of 8.02 and reporting an average speed of 6.94X. Writing ended after 16:59mins.

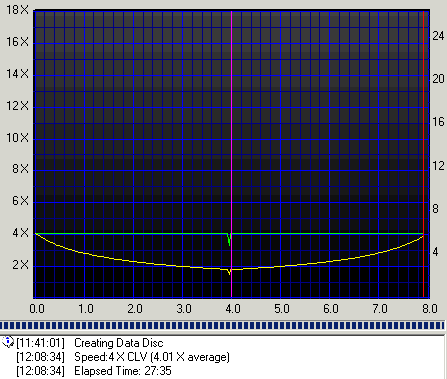

Traxdata DVD-R DL 4X @ 4X
With Traxdata DVD-R DL 4X and CLV writing strategy, the test started at 4.00X and maxed out at 4.03X, reporting an average speed of 4.01X and a completion time of 27:35mins.

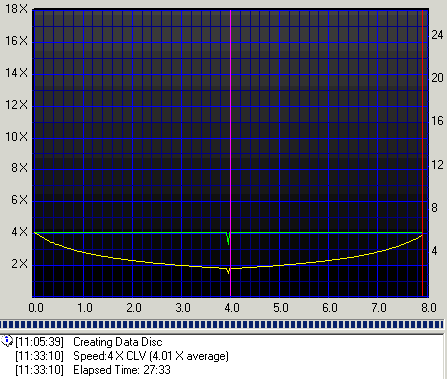

Verbatim DVD-R DL 4X @ 4X
The test started at 4.00X and writing speed maxed out at 4.03X with an average speed of 4.01X, completing the burn in 27:33mins.
