LiteOn SHW-1635S

Nov 23,2005 0

15. CDSpeed/PlexTools Scans - Page 4



Review Pages

1. Introduction
2. Transfer Rate Reading Tests
3. CD Error Correction Tests
4. DVD Error Correction Tests
5. Protected Disc Tests - Reading Tests
6. DAE Tests
7. Protected AudioCDs
8. CD Recording Tests
9. C1 / C2 Error Measurements
10. Writing Quality Tests - Clover System Tests
11. DVD Recording Tests
12. CDSpeed/PlexTools Scans - Page 1
13. CDSpeed/PlexTools Scans - Page 2
14. CDSpeed/PlexTools Scans - Page 3
15. CDSpeed/PlexTools Scans - Page 4
16. CDSpeed/PlexTools Scans - Page 5
17. Writing Quality Tests - Almedio AEC-1000
18. DVD+R DL - Page 1
19. DVD+R DL - Page 2
20. 1635S vs SA300 - Page 1
21. 1635S vs SA300 - Page 2
22. 1635S vs SA300 - Page 3
23. 1635S vs SA300 - Page 4
24. BookType Setting
25. Conclusion



In order to test the writing quality and readability of the burned media we used two readers with two software applications:
  • The LiteON SOHD-167T with patched firmware being able to read DVD5 up to 16X CAV and DVD9 up to 10X CAV. For the transfer rate tests we used the latest Nero CDSpeed version.
  • The Plextor PX-716A with the latest available firmware. For scanning the disc, we used the latest PlexTools version at 2X CLV reading speed, BURST mode, with middle accuracy.

In general, a "perfect" disc should have a smooth reading curve, very low PIE/POE and zero (0) POF error rates. Most times however, even though a disc has very low PIE/POE error rates, the reading curve may not be smooth containing dropoffs. Due to the fact that we overspeed the reading capabilities of the LiteON SOHD-167T, such drops are expected, especially near the outer area of the disc.

The measurements below should be taken not as the absolute criteria of the burning quality, but as an indication level.

8X DVD-R Writing Speed

- BenQ 8X DVD-R @ 8X

- Bulkpaq 8X DVD-R @ 8X

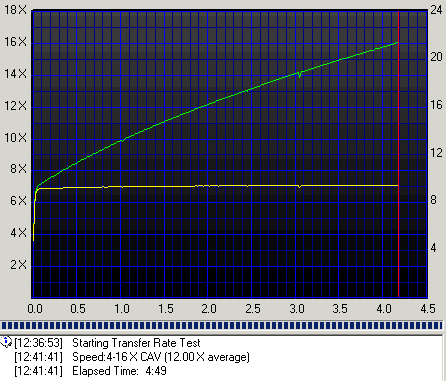

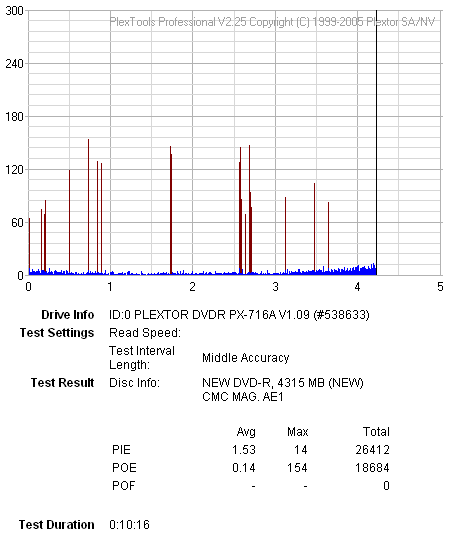

- Datawrite 8X DVD-R @ 8X

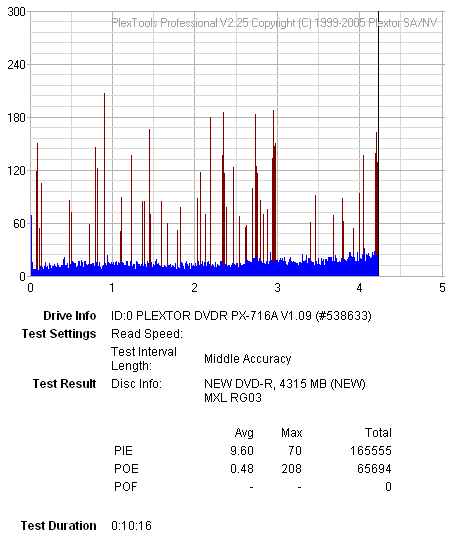

-Maxell 8X DVD-R @ 8X

- MMore 8X DVD-R @ 8X

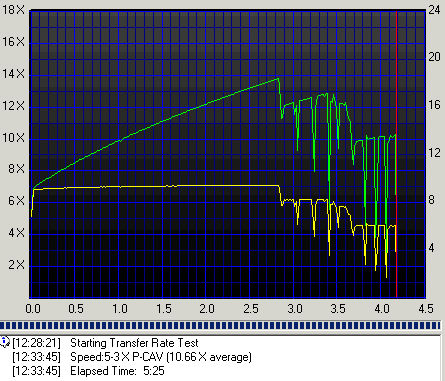

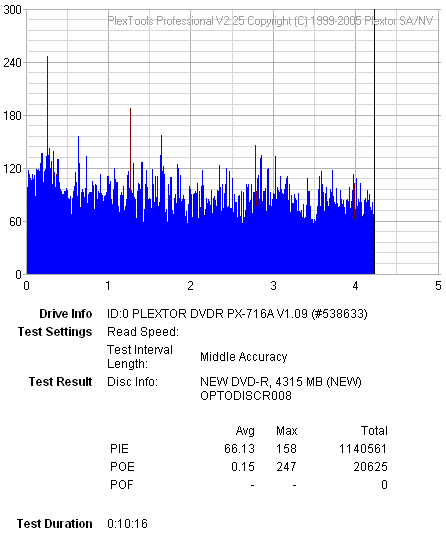

- Optodisc 8X DVD-R @ 8X

- Prodisc(1) 8X DVD-R @ 8X

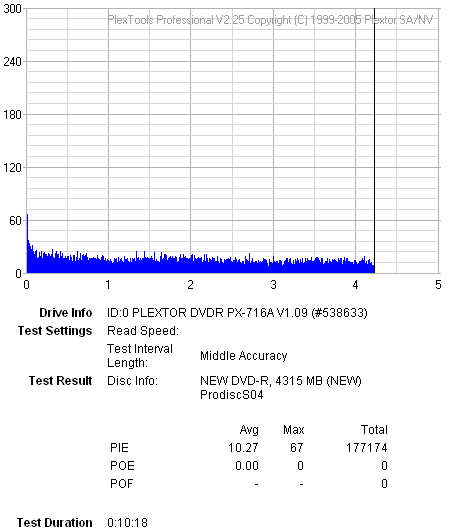

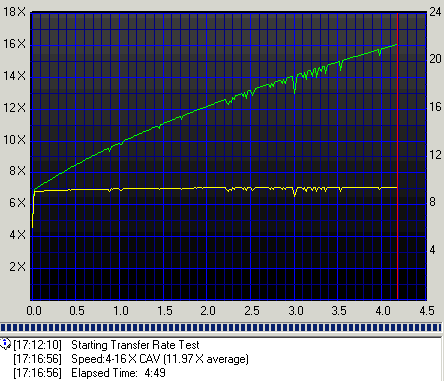

- Prodisc(2) 8X DVD-R @ 8X

- Ridisc(Red) 8X DVD-R @ 8X

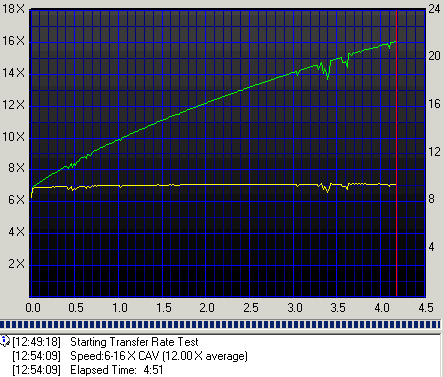

- Ridisc(Blue) 8X DVD-R @ 8X

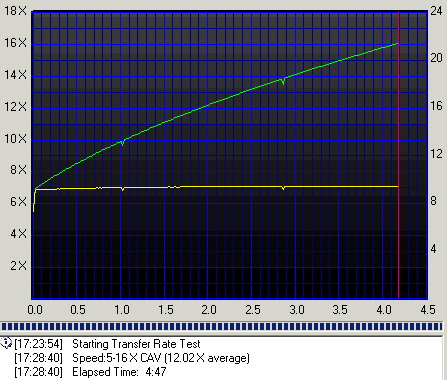

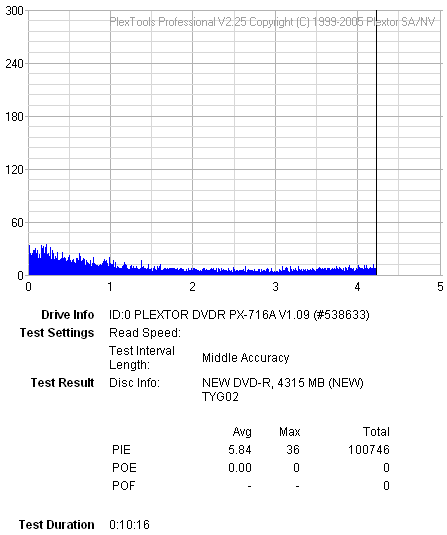

- TY 8X DVD-R @ 8X

- Summary

At 8X burning speed with 8X certified DVD-R media, the burning quality has improved. Low PI Values and some smooth CD-speed graphs indicate good quality burns.
