LiteOn SHW-1635S

Nov 23,2005 0

9. C1 / C2 Error Measurements



Review Pages

1. Introduction
2. Transfer Rate Reading Tests
3. CD Error Correction Tests
4. DVD Error Correction Tests
5. Protected Disc Tests - Reading Tests
6. DAE Tests
7. Protected AudioCDs
8. CD Recording Tests
9. C1 / C2 Error Measurements
10. Writing Quality Tests - Clover System Tests
11. DVD Recording Tests
12. CDSpeed/PlexTools Scans - Page 1
13. CDSpeed/PlexTools Scans - Page 2
14. CDSpeed/PlexTools Scans - Page 3
15. CDSpeed/PlexTools Scans - Page 4
16. CDSpeed/PlexTools Scans - Page 5
17. Writing Quality Tests - Almedio AEC-1000
18. DVD+R DL - Page 1
19. DVD+R DL - Page 2
20. 1635S vs SA300 - Page 1
21. 1635S vs SA300 - Page 2
22. 1635S vs SA300 - Page 3
23. 1635S vs SA300 - Page 4
24. BookType Setting
25. Conclusion



We measured the C1 / C2 error rate on the recorded discs we burned at the maximum supported writing speed of 48X. The software we used was PleXTools Professional v2.25, and more specifically, the built-in Q-Check utility. The reader was the Plextor PX-716A (firmware v1.09).

  • BenQ 80min 52X @ 48X

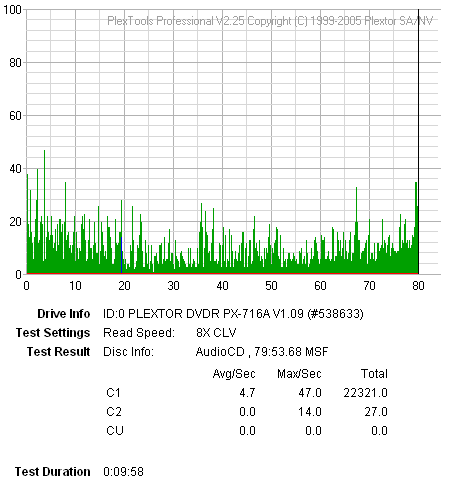

  • Intenso 80min 52X @ 48X

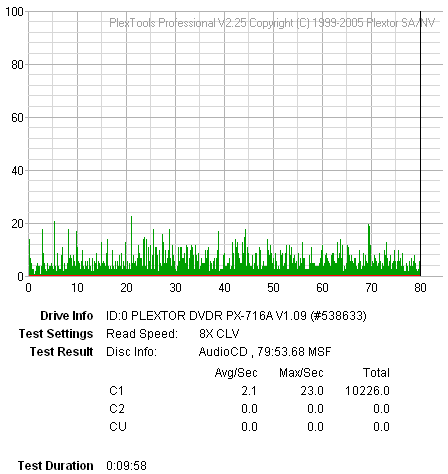

  • MMore 80min 52X @ 48X

  • Traxdata 80min 52X @ 48X

  • TY 80min 48X @ 48X

- Summary

According to the above Plextools scans, the LiteOn 1635S produced some good quality burns, with almost no C2 errors. Some C2 errors were reported with BenQ, Intenso and quite an amount of them with Traxdata media. Now let us continue on to the next page and the Clover CDX tests.

- Appendix

  • Media ID codes
Media Label
Manufacturer Name
Lead Out TIme
BenQ 52X
Ritek
79m59s70f
Intenso 52X Prodisc 79m59s71f
MMore 52X Moser Baer India 79m59s74f
Traxdata 52X
Ritek
79m59s70f
TY 80min 48X
Taiyo Yuden
79m59s72f
