LiteON SOHW-1633S Recorder - Page 10

C1 / C2 Error Measurements

We measured the C1 / C2 error rate on the recorded discs we burned at the maximum supported writing speed of 48X. The software we used is PleXTools Professional v2.16, and more specifically the built-in Q-Check utility. The reader was the Plextor PX-712A (firmware v1.05).

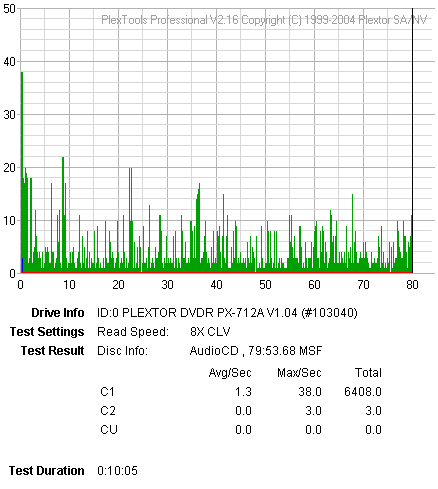

SKC 80min 52X @ 48X

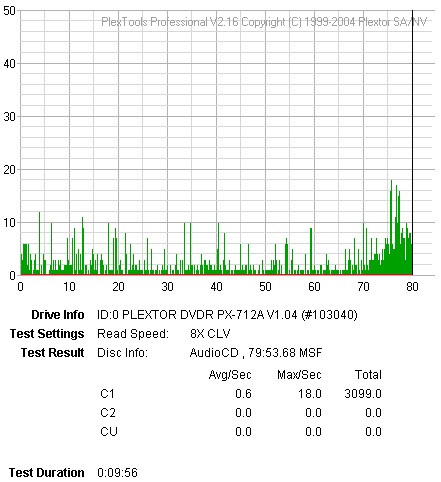

BenQ 80min 52X CD-R @ 48X

MMore 80min 52X @ 48X

Waitec 80min 52X @ 48X

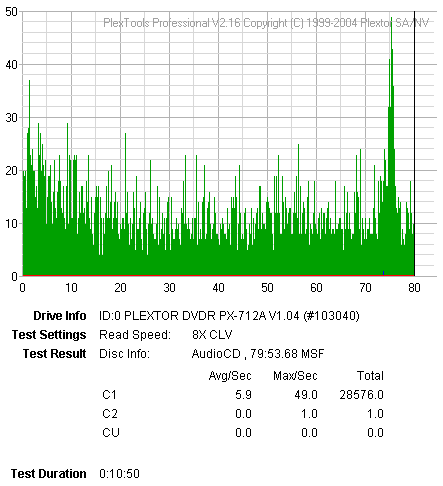

Maxell 80min 48X @ 48X

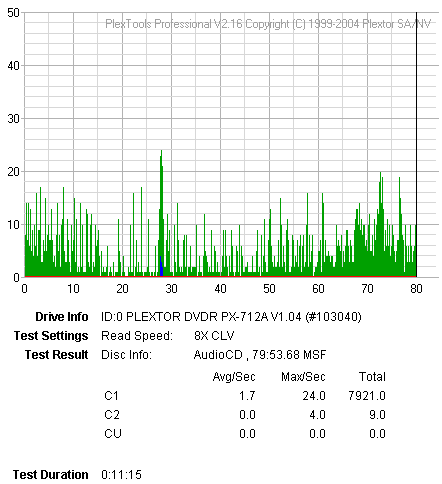

TY 80min 48X @ 48X

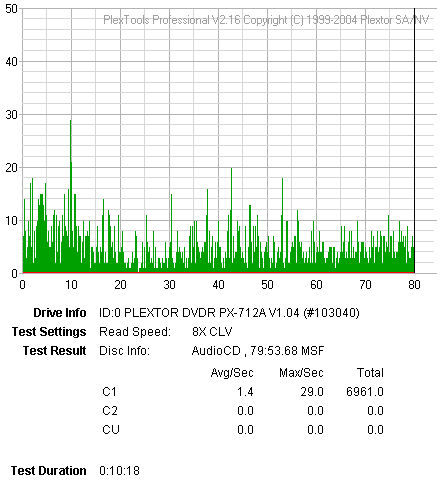

TraxData 80min 52X @ 48X

- Summary

CD writing quality performance was rather good with the LiteON SOHW-1633S for 48X writing speed. C2 errors were reported with Waitec, TY and MMore media. However, in these cases there was no error with CDSpeed.

- Appendix

Media ID codes

Media Label	ID Code	Manufacturer Name	Lead Out TIme
BenQ 80min 48X	97m22s67f	Daxon Technology	79:59.74
Maxell 80min 48X	97m15s17f	Ritek	79:59.70
SKC 80min 52X	97m26s26f	SKC Co., Ltd.	79:59.73
MMore 80min 48X	97m17s 6f	Moser Baer India, Ltd.	79:59.74
TraxData 80min 52X	97m15s17f	Ritek	79:59.70
Taiyo Yuden 80min 48X	97m24s 1f	Taiyo Yuden	79:59.72
Waitec 80min 52X	97m28s26f	Multi Media Masters & Machinery SA	79:59.74
