Mitsumi DW-7872TE DVD±RW recorder - Page 11

Writing Quality Tests - C1 / C2 Error Measurements

The C1 / C2 error rate was measured for the recorded discs burned during the previous writing tests (jitter). The software used was UMDoctor Pro II, and the reader was the Optorite DD0203 drive.

Taiyo Yuden 48x recorded at 8x

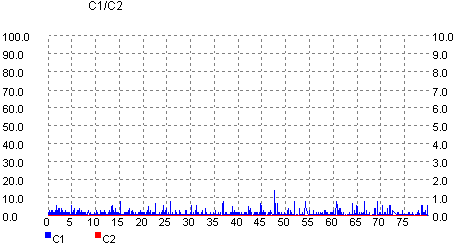

Taiyo Yuden 48x recorded at 16x

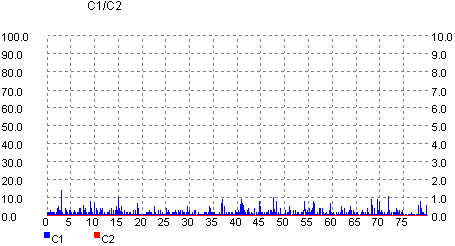

Taiyo Yuden 48x recorded at 24x

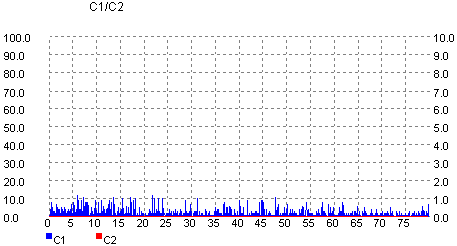

Taiyo Yuden 48x recorded at 32x

Taiyo Yuden 48x recorded at 40x

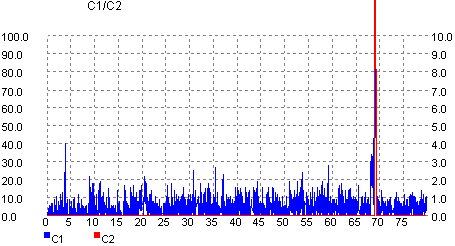

HiSpace 48x recorded at 40x

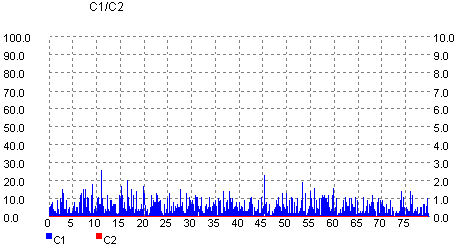

CMC Magnetics 48x recorded at 40x

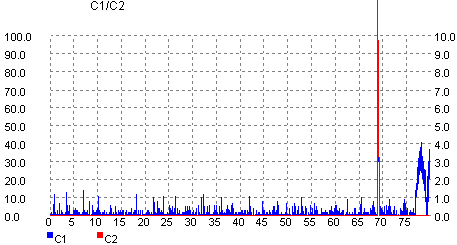

Ritek 48x recorded at 40x

Mam 52x recorded at 40x

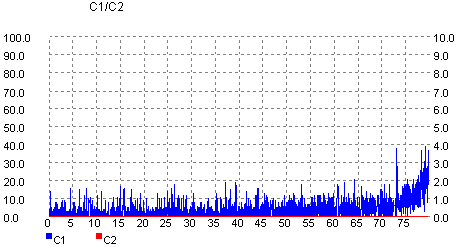

Maxell 48x recorded at 40x

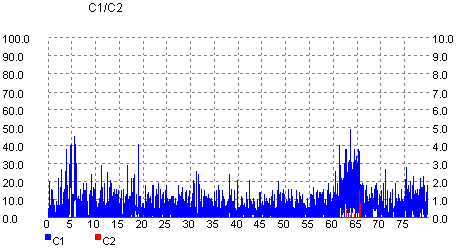

Creation 48x recorded at 40x

Below is presented information on the CD-R media used in this test.

Disc	ID Code	Capacity
Taiyo Yuden 48X	TaiyoYuden 97m24s01f	79:59:72
HiSpace 48x	97m25s07f	79:59:00
CMC Magnetics 48x	CMC Magnetics 97m26s66f	79:59:71
Ritek 48x	Fuji 97m26s45f	79:59:73
Mam 52X	Mitsui 97m27s58f	79:59:74
Maxell 48X	Ritek 97m15s17f	79:59:70
Creation 48X	Plasmon 97m27s18f	79:59:74

- Summary

According to our measurement the drive's CD writing quality is good with all media brands but mostly with Taiyo Yuden. The C1 levels are all quite low. However there were some cases that C2 errors were reported. The strange thing is that all the C2 error were occured at the 68 minute for all cases.
