Optorite DD1205 Dual DVD±RW Recorder - Page 1

After the DD1203 recorder, Optorite decided to support the Double Layer format by releasing it's new DD1205 burner. Based for one more time on the Sanyo chipset, the new recorder is ready to face the strong competition, competition which has already moved onto 4X writing speed for DL media.

The dual burner offers 2.4X DVD+R9, 12X DVD+R, 8x DVD-R, 4X DVD±RW writing and 12X DVD-ROM reading. The drive also supports 40X recording for CD-R media and 24X for HS-RW.

- Features

"Safe-BP" has achieved enough detection performance at more than 40x speed with the improvement of the electric circuit for the detection of disarrangement of pickup servo. When a disarrangement of this servo is detected at high speed recording condition, a drive stops the recording immediately and restarts the recording at lower recording speed.

Shock-BP always monitors the condition of focus servo and tracking servo and stops the recording when it detects the change in rapid servo condition, then, restarts the recording at the stop position after the servo condition is recovered.

A generic name for Flexible Speed and Flexible Strategy. 'FlexSS-BP' technology automatically selects the optimum recording speed for each disc, because some CDs cannot stand high speed recording with high recording power.

Flexible Speed

When a drive determines that it is barely tracing the placed disc correctly due to the variations between discs, and it determines that the placed disc cannot stand a high power laser at high speed recording, the drive selects a suitable recording speed for the disc and continues to record.

Flexible Strategy

It measures and evaluates the recording condition of the recorded area at the switching zones.

HD-BURN
Developed by SANYO Electric Co., Ltd., a high density recording technology that doubles the recording capacity of conventional CD-R media (700MB).

- Specifications

Interface	E-IDE / ATAPI (Ultra DMA mode2)
Internal Buffer Size	2MB
Data tranfer speed ( ATA I/F)	33MB/sec
Random Access Time:	DVD 130ms and CD 100 ms
Write Speed	HD-Burn	24X
	DVD+R	12X
	DVD+RW	4X
	DVD-R	8X
	DVD-RW	4X
	CD-R	40X
	CD-RW	24X
Read Speed	DVD+R	12X
	DVD+RW	12X
	DVD-R	12X
	DVD-RW	1X2
	CD-R	40X
	CD-RW	40X
	CD-DA	40X
	DVD-ROM	12X single 8X double
	CD-ROM	40X
Writng Type	DVD+R: Incremental Write (Multi Session Support) DVD-R: Disc at Once, Incremental Recording (Multi-Border Support) DVD+RW: Random Write DVD-RW: Rigid Restricted Overwriting, Incremental Write CD-R/RW: Disc at Once, Session at Once, Track at Once, Packet Writing (Multi Session Support)
Support Media Type	DVD-ROM, DVD single layer / Dual layer, DVD+R/RW, DVD-R/RW, CD-DA, CD-ROM [Mode1, Mode2 (Form1/2)], CD-ROM / XA, Mixed mode CD, CD-R/RW, CD Extra, CD-TEXT
Support Formats	DVD-ROM (UDF Bridge), DVD-ROM (ISO 9660), DVD-ROM (UDF), DVD-VIDEO, DVD-VR
Disc Size	8/12 cm discs
OS Compatibility	Windows 98SE/ME/XP/NT/2000
Dimensions (WHD)	148.5x42.5x194.2mm
Weight	<1.0kg (2.2lb)
Power Requirements	DC +5V± 5% / 12V± 10%, Max. 2.0A
MTBF	> 30.000 POH (duty 20%)
Enviromental Specifications	Operating Temprature: 5°C to 45 °C Storage Temprature -30°C to 60°C

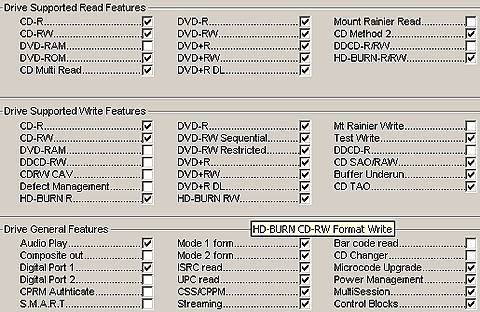

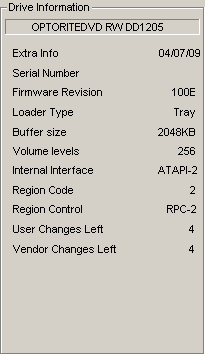

Below are the drive's main specifications as given by NeroInfoTool and DVDInfoPro:

As with the DD1203, the DD1205 also uses the RPC II region control, allowing a user to change the drive's region at most 5 times. In our screenshot there are 4 changes left since we had to set the first.

- Retail package

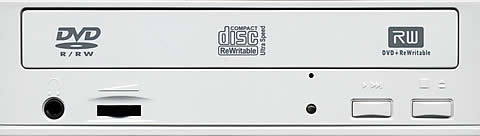

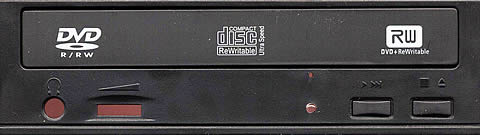

The retail package includes the Optorite DD1205, a quick installation guide, mounting screws and a sound cable. There are also Nero v6 OEM version and Sonic MyDVD. We were also pleasantly surprised to see included, an alternative black bezel.

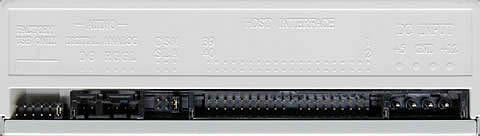

On the rear panel you can see the analogue and digital outputs (SPDIF), the IDE connector and the power input.

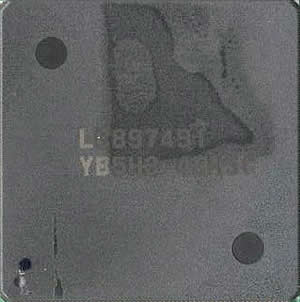

Removing the screws and opening the drive's cover voids the drive's warranty. For reference reasons, we post the following pictures. You can click on the mainboard picture for a higher resolution image:

- Installation

The drive was installed as secondary master and WindowsXP recognized it as "OPTORITE DVD RW DD1205". The drive arrived with firmware v100e.

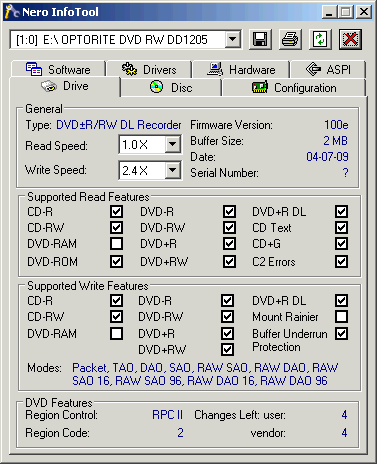

Below is a screenshot from Nero Burning Rom, showing the drive's specs.

We will be comparing the Optorite drive with the previous model, the DD1203 in order to observe the common and not so common points between the two drives.

- Testing software

In order to perform our tests we used:
