PIONEER DVR-S706 DVD±R/RW recorder - Page 11

Writing Quality Tests - C1 / C2 / CU Error Measurements

The C1 / C2 / CU error rate was measured from the recorded discs burned during the previous writing tests (jitter). The software used is PlexTools Professional v2.11 and the reader is the Plexwritter Premium drive.

MEDIA		C1	C2	CU
Taiyo Yuden	Avg/Sec	0.4	0	0
	Max/Sec	19	0	0
	Total	2077	0	0
CMC	Avg/Sec	1.5	0	0
	Max/Sec	37	51	0
	Total	7361	92	0
That`s	Avg/Sec	0.7	0.1	0
	Max/Sec	23	35	0
	Total	3435	690	0
Traxdata	Avg/Sec	4.5	3.4	0
	Max/Sec	45	304	0
	Total	21536	16227	0
Mam	Avg/Sec	4.4	1.3	0
	Max/Sec	54	125	0
	Total	20973	6449	0

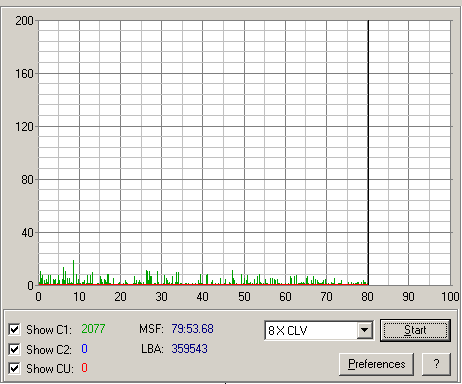

Taiyo Yuden 48x recorded at 24x

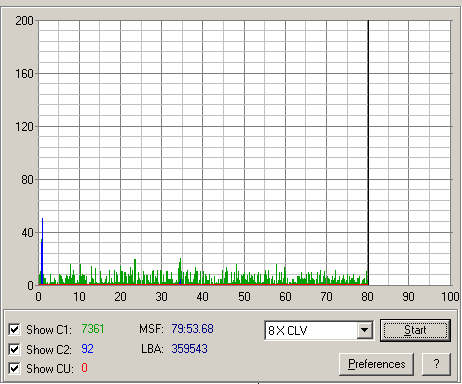

CMC Magnetics 48x recorded at 24x

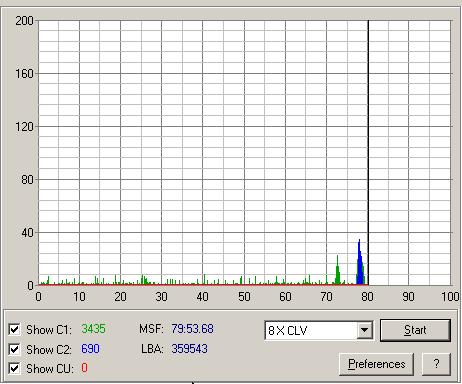

That`s 48x recorded at 24x

Traxdata 52x recorded at 24x

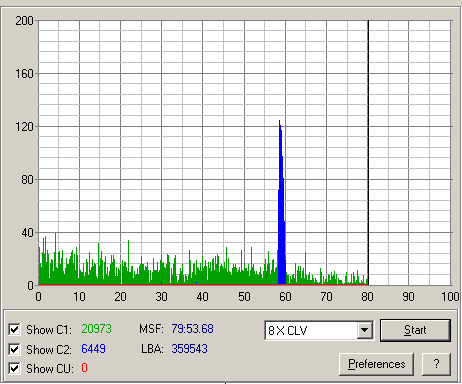

Mam 52x recorded at 24x

- Summary

According to our measurements CD writing quality is generally good.

- Appendix

Media ID codes

Media Label	ID Code	Manufacturer Name	Lead Out Time
MMore 80min 52X	97m17s 6f	Moser Baer India	79m59s74f
Intenso 80min 52X	97m32s19f	Prodisc	79m59s71f
CMC Magnetics 80min 48X	97m26s66f	CMC Magnetics	79m59s71f
Mam SGUltra 80min 52X	97m27s58f	Mitsui Chemicals	79m59s74f
BenQ 80min 48X	97m22s67f	Daxon Technology	79m59s74f
TY 80min 48X	97m24s 1f	Taiyo Yuden	79m59s72f
TraxData 80min 52X	97m15s17f	Ritek	79m59s70f
