Ricoh MP5308D DVD±R/RW Recorder - Page 13
In the following screenshots you can see the PI/PIF scans for the DVD-R/RW media we burned with the LiteOn SOHW-832S. The software we used for all measurements is the KProbe v2.1.0, and the reader is a LiteOn LDW-811S with "HS0Q patched" firmware, being able to read DVD±R/RW media up to 8X CAV. All scans have been performed at 8X with PI/PIF Sum8. Note that LiteOn drives cannot report PO but PIF errors, despite what KProbe reports. In addition, all discs have been scanned with PX-712A v1.02 using PlexTools v2.14 for comparison levels.
Comparing the KProbe/PlexTools scans we can see major differences at the reported PI/PIF error rates. The main explanation is that we have two different readers, with different pickup/chipset combination, scanning at different reading speeds (8X CAV for KProbe, 2X CLV for PlexTools). Its interesting to see the disc scanned at low & high speed, since when error rate increases at a specific disc area, it should appear at both scans...else it would be, perhaps, a reading glitch of the tested reader.
Note: PI/PIF errors only give us a quick look at the error rate of the burned media. Those scans should be taken not as the absolute criteria of the burning quality but as an indication level.
- DVD-R Media
BenQ 4X DVD-R @ 4X
Maxell 4X DVD-R @ 4X
CMC Magnetics 4X DVD-R @ 4X
That's 8X DVD-R @ 4X
TraxData 4X DVD-R @ 4X

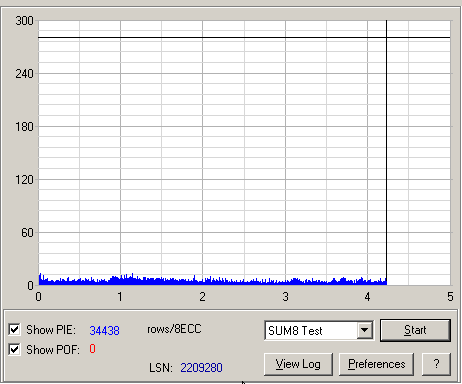

MKM/Verbatim 8X DVD-R @ 8X
Maxell 8X DVD-R @ 8X

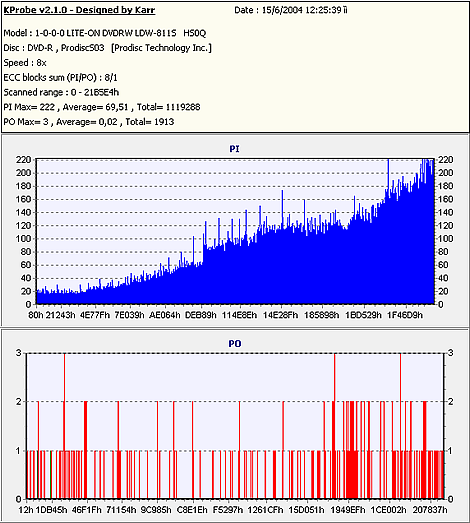

Proformance 4X DVD-R @ 4X
TDK 4X DVD-R @ 4X
Bulkpaq 4X DVD-R @ 4X
N-Star 4X DVD-R @ 4X
Mirror Platinum 4X DVD-R @ 4X

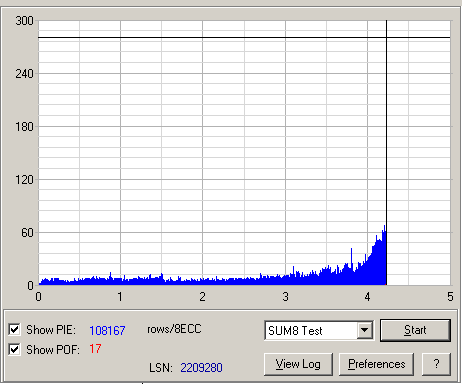

MMore 4X DVD-R @ 4X
Mitsubishi Chemicals 4X DVD-R @ 8X

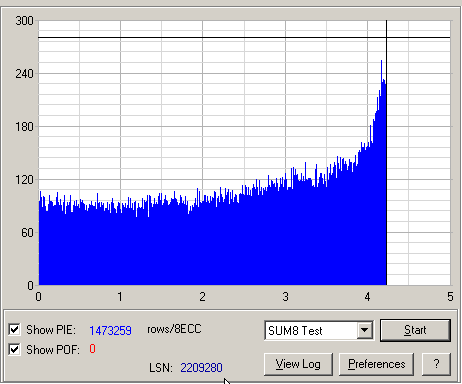

Vanguard 4X DVD-R @ 4X
- DVD-RW Media
MKM 4X DVD-RW @ 4X
- Summary
Ricoh creates DVD-Rs with low PI/PIF error levels and offers compatibility with the majority of the media we use. Only with N-Star 4X & Vanguard 4X the writing quality isn`t acceptable with high PI/PIF error level.
- Appendix
Disc Label |
Disc Information |
Max Allowed Writing Speed |
Total Recording Time (mins) |
That's 8X |
TYG02 |
8X |
9:22 |
MKM/Verbatim 8X |
MCC 02RG20 |
8X |
9:20 |
CMC 4X |
CMC MAG.AF1 |
4X |
14:04 |
TraxData 4X |
RITEKG04 |
4X |
14:02 |
Maxell 4X |
MXL RG02 |
4X |
14:03 |
Vanguard 4X |
VANGUARD |
4X |
14:02 |
MMore 4X |
MBI 01RG20 |
4X |
14:00 |
MCC 4X |
MCC 01RG20 |
8X |
9:20 |
BenQ 4X |
SONY04D1 |
4X |
14:00 |
Maxell 8X |
MXL RG03 |
8X |
9:21 |
Proformance 4X |
PRODISCS03 |
4X |
14:02 |
TDK 4X |
TTG01 |
4X |
14:01 |
Bulkpaq 4X |
PRINCO |
4X |
14:03 |
N-Star 4x |
VDSPMSAB 01 |
4X |
14:00 |
Mirror Platinum 4X |
AN31 |
4X |
14:00 |
MKM 4X RW |
MCC 01RW4X |
4X |
14:02 |
