OPTORITE DVD RW DD0405 - Page 13

KProbe PI/PO quality results

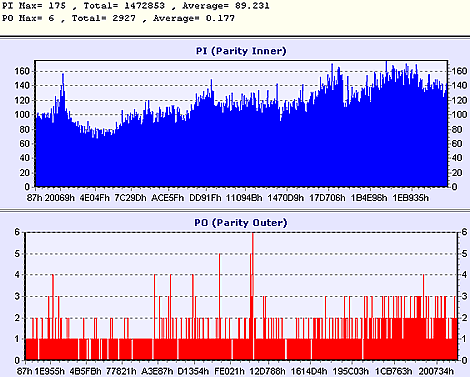

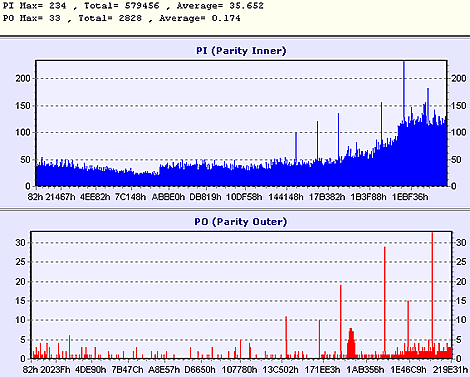

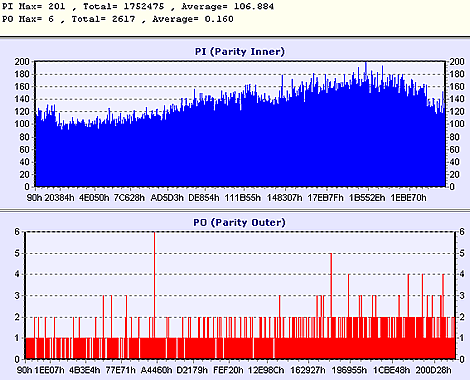

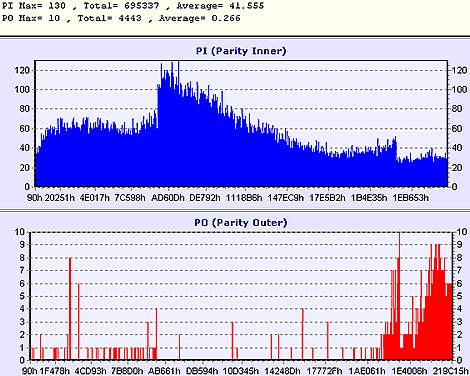

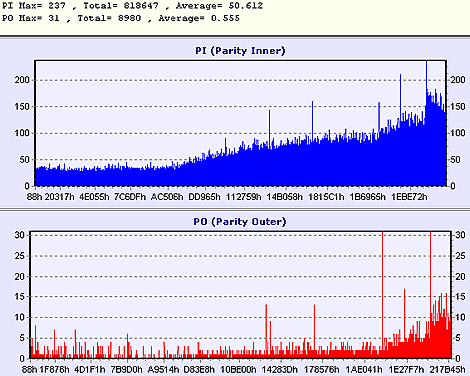

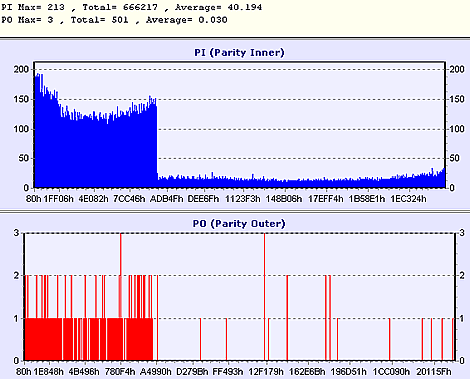

The following screenshots show the PI/PO scans for the various DVD-/+R and DVD-/+RW media, recorded with Optorite DD0405 at the maximum permitted speed.

The software used for the measurements was the KProbe v1.1.26, the ECC was set to 8 and the reader was LiteOn LDW-811s. The specific methodology is very dependent on the drive used as a reader, while the reliability of the PI/PO provided output is also not technically confirmed. Hence as a result, we cannot safely come up with conclusive results, although we do make a comparison of the drive's behavior when using various DVD recordable/rewritable media.

The discs used came from CMC, Verbatim, Maxell, JVC, Mam, Taiyo Yuden, TDK, and Mitsubishi Chemicals . Further details about each disc type are presented at the bottom of this page.

• CMC 8x DVD+R (Recorded at 8x)

• That's 8x DVD+R (Recorded at 8x)

• MCC 4x DVD+R (Recorded at 8x)

• Mitshubishi Kagaku 8x DVD+R (Recorded at 8x)

• Verbatim 8x DVD-R (Recorded at 8x)

• Thats 8x DVD-R (Recorded at 8x)

• Maxell 8x DVD-R (Recorded at 8x)

• CMC 8x DVD-R (Recorded at 8x)

• MCC 4x DVD-R (Recorded at 4x)

• Mitshubishi Kagaku 4X DVD-RW (Recorded at 4x)

• TDK 2x DVD-RW (Recorded at 2x)

• Taiyo Yuden 4x DVD-R (Recorded at 4x)

• Maxell 4x DVD-R (Recorded at 4x)

• Mitshubishi Kagaku 4x DVD+RW (Recorded at 4x)

• Mitshubishi Kagaku 4x DVD-RW (Recorded at 4x)

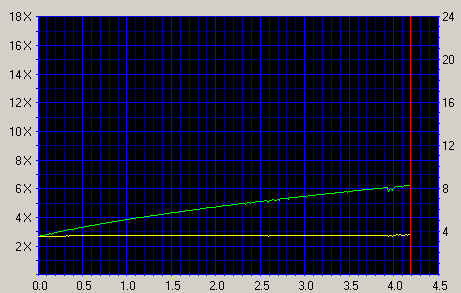

All used discs that were certified for 8x writing were successfully written at 8x. Apart from this, among the used discs the MCC 4x DVD+R was written at 8x but gave back worst PI/PO measurements. All discs had increased PIPO values at the end of their surface but the results are quite acceptable. In the case of MAM-e media, CDSpeed and KProbe did not manage to read the disc.
