Abit’s name is undoubtedly one of the most prestigious in the world of motherboard production. For many years, Abit’s products were synonymous with over clocking. So it wasn't a surprise that they would once again release motherboards with advanced overclocking capabilities.

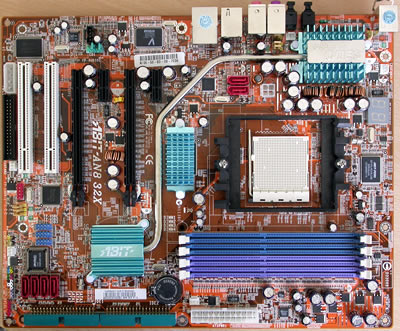

The new AN8 32X is a board for AMD's socket 939 processors with 2GHz HT and also incorporates Nvidia's NF4 SLI X16 chipset. It further supports Dual DDR 400, NV SATA RAID, NV GbE w/Firewall, 7.1 CH Audio, NVIDIA SLI Tech., ABIT Silent OTES, ABIT µGuru Tech.

- Specifications

CPU	- Supports Socket 939 Athlon64/ 64FX/ 64X2 Processors with 2GHz system bus using Hyper Transport™ Technology - Supports AMD CPU Cool 'n' Quiet Technology
Chipset	NVIDIA® NF4 SLI X16 / NF4 SLI Chipset
Memory	- Four 184-pin DIMM sockets - Supports Dual channel DDR 400 ECC/non-ECC un-buffered memory - Supports maximum memory capacity up to 8GB
NVIDIA SLI Technology	- Two PCI-Express X16 slots support NVIDIA Scalable Link Interface - Two full-bandwidth 16-lane PCI Express
NV SATA 3Gb/s RAID	- Supports 4 ports SATA 3Gb/s RAID 0/1/0+1/5 - Supports SATA AHCI, providing native command queuing and native hot plug
2nd SATA RAID	- Serial ATA 3Gbps by Sil 3132 PCIE controller - Supports SATA RAID 0/1 NCQ
Audio	- On board 7.1 CH Audio CODEC (ALC850) - Supports auto jack sensing and optical S/PDIF In/ Out
NV GbE	NVIDIA® Gigabit Ethernet with NV Firewall ActiveArmor
IEEE1394	Supports IEEE1394a
Internal I/O Connectors	- 2 x PCI Express x16 (two full-bandwidth 16-lane PCI Express) - 2 x PCI Express x1, 2 x PCI slots - 1 x Floppy port supports up to 2.88MB - 6 x SATA connectors - 2 x Ultra DMA 133/100/66/33 connectors - 3 x USB 2.0 headers, 1 x IEEE 1394 header - 1 x Guru Link
Back Panel I/O	- 1 x PS/2 Keyboard, 1 x PS/2 Mouse - 4 x USB ports, 1 x RJ-45 LAN port, 1 x IEEE 1394 - 1 x S/P DIF In, 1 x S/P DIF Out
Form Factor	ATX form factor 305 x 245mm
ABIT Engineered	- ABIT Patented Silent OTES™ Technology* - ABIT µGuru™ Technology
Compatible Accessories	Guru Clock
