AMD's Partners Bring The Fury To The Market

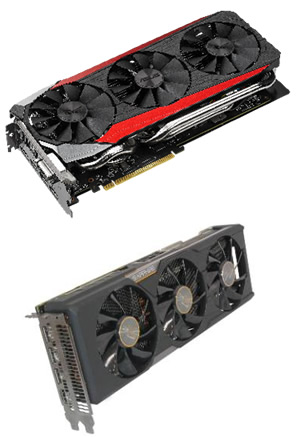

AMD recently released the AMD Radeon R9 Fury X GPU, the company's most advanced GPU for the enthusiast market. Now comes the Fury -- the AMD Radeon R9 Fury GPU. The air-cooled Radeon R9 Fury GPU will be available starting Tuesday, July 14th from add-in card suppliers. New Fury models include the ASUS Strix Radeon R9 Fury and the Sapphire Tri-X Radeon R9 Fury graphics cards.
These share many similar features and capabilities, starting with the High Bandwidth Memory (HBM). Co-developed by AMD with industry partners, this is delivering more than 3x the bandwidth per watt than GDDR5 along with a 4096-bit memory interface for new advances in power and efficiency. The Radeon R9 Fury GPU delivers 60% more memory bandwidth over GDDR5 powering extreme performance.
The AMD Radeon R9 Fury GPU joins AMD's new generation of Radeon R9 Series graphics cards ready for high resolution gaming today as well as the DirectX 12 games of tomorrow:
R9 FURY X |
R9 FURY |
R9 390X |
R9 390 |
R9 380 |
|
GPU ARCHITECTURE |
28nm |
28nm |
28nm |
28nm |
28nm |
API SUPPORT |
DirectX 12, Mantle, OpenGL 4.5, Vulkan, OpenCL 2.0 |
DirectX 12, Mantle, OpenGL 4.5, Vulkan, OpenCL 2.0 |
DirectX 12, Mantle, OpenGL 4.5, Vulkan, OpenCL 2.0 |
DirectX 12, Mantle, OpenGL 4.5, Vulkan, OpenCL 2.0 |
DirectX 12, Mantle, OpenGL 4.5, Vulkan, OpenCL 2.0 |
HIGH-BANDWIDTH MEMORY (HBM) |
Yes |
Yes |
No |
No |
No |
Virtual Super resolution (VSR) |
Yes |
Yes |
Yes |
Yes |
Yes |
AMD FreeSync technology |
Yes |
Yes |
Yes |
Yes |
Yes |
AMD liquidVR technology |
Yes |
Yes |
Yes |
Yes |
Yes |
4K RESOLUTION SUPPORT |
Yes |
Yes |
Yes |
Yes |
Yes |
FRAME RATE TARGET CONTROL (FRTC) |
Yes |
Yes |
Yes |
Yes |
Yes |
DDMA AUDIO |
Yes |
Yes |
Yes |
Yes |
Yes |
HDMI (WITH 4K, STEREO 3D, DEEP COLOR & X.V.COLOR) |
Yes |
Yes |
Yes |
Yes |
Yes |
AMD POWERTUNE TECHNOLOGY |
Yes |
Yes |
Yes |
Yes |
Yes |
AMD ZeroCore Power Technology |
Yes |
Yes |
Yes |
Yes |
Yes |
AMD TRUEAUDIO TECHNOLOGY |
Yes |
Yes |
Yes |
Yes |
Yes |
AMD EYEFINITY TECHNOLOGY (MAXIMUM DISPLAYS) |
Up to 6 displays with DisplayPort MST hub |
Up to 6 displays with DisplayPort MST hub |
Up to 6 displays with DisplayPort MST hub |
Up to 6 displays with DisplayPort MST hub |
Up to 6 displays with DisplayPort MST hub |
AMD HD3D Technology |
Yes |
Yes |
Yes |
Yes |
Yes |
VIDEO CODEC ENGINE (VCE) (WITH H.264, MPEG-4 ASP, MPEG-2, VC-1 & BLU-RAY 3D) |
Yes |
Yes |
Yes |
Yes |
Yes |
GPU CLOCK SPEED |
Up to 1050 MHz |
Up to 1000 MHz |
Up to 1050 MHz |
Up to 1000 MHz |
Up to 970 MHz |
MEMORY BANDWIDTH |
512 GB/s |
512 GB/s |
384 GB/s |
384 GB/s |
|
MEMORY INTERFACE |
4096-bit HBM |
4096-bit HBM |
512-bit GDDR5 |
512-bit GDDR5 |
256-bit GDDR5 |
MEMORY AMOUNT |
4GB HBM |
4GB HBM |
8GB GDDR5 |
8GB GDDR5 |
Up to 4GB GDDR5 |
STREAM PROCESSING UNITS |
4096 (64 Compute Units) |
3584 (56 Compute Units) |
2816 (44 Compute Units) |
2560 (40 Compute Units) |
1792 (28 Compute Units) |
REQUIRED POWER SUPPLY CONNECTORS |
2x 8-pin |
2x 8-pin |
1 x 6-pin, 1 x 8-pin |
1 x 6-pin, 1 x 8-pin |
2 x 6-pin |
AMD CROSSFIRE SUPPORT (MAXIMUM NUMBER OF GPUS AND CROSSFIRE BRIDGE INTERCONNECT REQUIRED) |
4, no |
4, no |
4, no |
4, no |
2, no |
FORM FACTOR |
Full height, dual slot, liquid-cooled |
Full height, dual slot |
Full height, dual slot |
Full height, dual slot |
Full height, dual slot |
The AMD Radeon R9 Fury GPU, like others within the AMD Radeon R9 300 family, is built on AMD?s GCN Architecture for unified graphics processing and computing. This results in higher frame rates in the latest games at high resolutions and at the highest settings. In fact, the AMD Radeon R9 Fury GPU supports Virtual Super Resolution (VSR) that automatically re-renders games at higher resolutions (up to 4K) and then dynamically rescales them for HD displays at higher quality and details.
What?s more, the AMD Radeon R9 Fury GPU is architected for virtual reality gaming, enabling smooth images with high frame rates and low latencies thanks to AMD LiquidVR technology.
