Asus, ASRock Unveil New Motherborads For Intel's Braswel SoC

Asus, ASRock Unveil New Motherborads For Intel's Braswel SoC

PC components 0

Taiwanese motherboard makers ASRock and Asus have both unveiled new microATX and mini ATX motherboards based on Intel's 14nm "Braswell" SoC. ASRock has released a total of seven models, as you see below. They are based on Pentium N3700 (4-core, 1.6 ~ 2.4GHz, Intel HD Graphics 16 EUs), the Celeron N3150 (4-core, 1.6 ~ 2.08GHz, Intel HD Graphics 12 EUs), the Celeron N3050 (4-core, 1.6 ~ 2.08GHz, Intel HD Graphics 12 EUs ), Celeron N3050 (2- core, 1.6 ~ 2.16GHz, Intel HD Graphics).

The three microATX models support normal DDR3 / DDR3L DIMM memory, while the Mini-ITX models support SO-DIMM.

Asus' solution is the N3150M-E microATX motherboard with a fanless heatsink. It is equipped with a Celeron N3150 processor (6W TDP), which features 4 cores, a base clock of 1.6GHz that bursts at 2.08GHz, and 2MB of L2 cache. Onboard graphics are via Intel?s Gen8, with 12 EUs having a boost frequency of 600 MHz.

There is a full PCIe 2.0 x16 slot, allowing for those internal arrangements of Atom plus discrete graphics or just for an additional PCIe card, such as a RAID card for a storage platform. By default the N3150M-E gives two SATA 6 Gbps ports, a COM header, a USB 2.0 header and a USB 3.0 header. There are also two USB 3.0 ports on the rear, along with a Realtek network port and Realtek ALC887 audio. Onboard video outputs are via a VGA and a HDMI connector, and we also get an LPT port.



Model

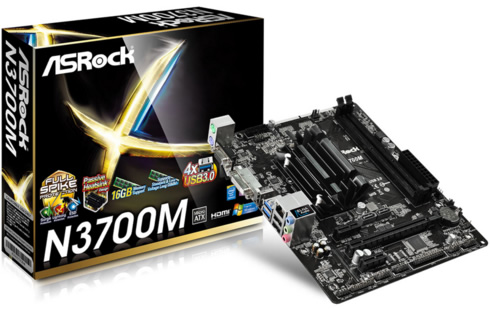

N3700M
N3050M
N3150M
N3700-ITX
N3150B-ITX
N3150-ITX
N3050B-ITX
Form Factor

Micro ATX Form Factor: 8.9-in x 7.0-in, 22.6 cm x 17.8 cm

Solid Capacitor design

High Density Glass Fabric PCB

Mini-ITX Form Factor

Solid Capacitor design

High Density Glass Fabric PCB- Mini-ITX Form Factor

Solid Capacitor for CPU power

High Density Glass Fabric PCB

CPU Intel Quad-Core Pentium Processor N3700 (up to 2.4 GHz) Intel Dual-Core Processor N3050 (up to 2.16 GHz) Intel Quad-Core Processor N3150 (up to 2.08 GHz) Intel Quad-Core Pentium Processor N3700 (up to 2.4 GHz) Intel Quad-Core Processor N3150 (up to 2.08 GHz) Intel Quad-Core Processor N3150 (up to 2.08 GHz) Intel Dual-Core Processor N3050 (up to 2.16 GHz)
Memory

Dual Channel DDR3/DDR3L Memory Technology

2 x DDR3/DDR3L DIMM Slots

Supports DDR3/DDR3L 1600/1066 non-ECC, un-buffered memory

Max. capacity of system memory: 16GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.

**If only one DIMM module is installed, please install it into DDR3_A1.

Dual Channel DDR3/DDR3L Memory Technology

2 x DDR3/DDR3L SO-DIMM Slots

Supports DDR3/DDR3L 1600/1066 non-ECC, un-buffered memory

Max. capacity of system memory: 16GB*

*Due to the operating system limitation, the actual memory size may be less than 4GB for the reservation for system usage under Windows 32-bit OS. For Windows 64-bit OS with 64-bit CPU, there is no such limitation.

**If only one SO-DIMM module is installed, please install it into DDR3_A1.

Slots

1 x PCI Express 2.0 x16 Slot (PCIE2 @ x1 mode)

2 x PCI Express 2.0 x1 Slots

1 x PCI Express 2.0 x1 Slot

1 x Half-size Mini-PCI Express Slot

1 x PCI Express 2.0 x1 Slot

1 x PCI Express 2.0 x1 Slot

1 x Half-size Mini-PCI Express Slot

1 x PCI Express 2.0 x1 Slot
Graphics

Intel 8th generation (Gen 8) graphics: up to 16 EUs inside

DirectX 11.1, Pixel Shader 5.0

Three graphics output options: D-Sub, DVI-D and HDMI

Supports Triple Monitor
- Supports HDMI with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz

Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

Supports HW Accelerated Decoders: H.264 @ level 5.2, H.265/HEVC @ level 5 (GPU accelerated), JPEG, VP8

Supports HDCP with DVI-D and HDMI Ports

Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

Intel 8th generation (Gen 8) graphics: up to 12 EUs inside
- DirectX 11.1, Pixel Shader 5.0

Three graphics output options: D-Sub, DVI-D and HDMI

Supports Triple Monitor

Supports HDMI with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz

Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

Supports HW Accelerated Decoders: H.264 @ level 5.2, H.265/HEVC @ level 5 (GPU accelerated), JPEG, VP8

Supports HDCP with DVI-D and HDMI Ports

Supports Full HD 1080p Blu-ray (BD) playback with DVI-D and HDMI Ports

Intel 8th generation (Gen 8) graphics: up to 16 EUs inside

DirectX 11.1, Pixel Shader 5.0

Three graphics output options: DVI-D, HDMI and DisplayPort 1.1a

Supports Triple Monitor

Supports HDMI with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz

Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

Supports DisplayPort 1.1a with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz

Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

Supports HW Accelerated Decoders: H.264 @ level 5.2, H.265/HEVC @ level 5 (GPU accelerated), JPEG, VP8

Supports HDCP with DVI-D, HDMI and DisplayPort 1.1a Ports

Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort 1.1a Ports

Intel 8th generation (Gen 8) graphics: up to 12 EUs inside

DirectX 11.1, Pixel Shader 5.0

Dual graphics output: Support HDMI and D-Sub ports by independent display controllers

Supports HDMI with max. resolution up to 2560x1600 @ 60Hz

Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

Supports HW Accelerated Decoders: H.264 @ level 5.2, H.265/HEVC @ level 5 (GPU accelerated), JPEG, VP8

Supports HDCP with HDMI Port

Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port

Intel 8th generation (Gen 8) graphics: up to 12 EUs inside

DirectX 11.1, Pixel Shader 5.0

Three graphics output options: DVI-D, HDMI and DisplayPort 1.1a

Supports Triple Monitor

Supports HDMI with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz

Supports DVI-D with max. resolution up to 1920x1200 @ 60Hz

Supports DisplayPort 1.1a with max. resolution up to 4K x 2K (3840x2160) @ 30Hz or 2560x1600 @ 60Hz

Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

Supports HW Accelerated Decoders: H.264 @ level 5.2, H.265/HEVC @ level 5 (GPU accelerated), JPEG, VP8

Supports HDCP with DVI-D, HDMI and DisplayPort 1.1a Ports

Supports Full HD 1080p Blu-ray (BD) playback with DVI-D, HDMI and DisplayPort 1.1a Ports

Intel 8th generation (Gen 8) graphics: up to 12 EUs inside

DirectX 11.1, Pixel Shader 5.0

Dual graphics output: Support HDMI and D-Sub ports by independent display controllers

Supports HDMI with max. resolution up to 2560x1600 @ 60Hz

Supports D-Sub with max. resolution up to 1920x1200 @ 60Hz

Supports Auto Lip Sync, xvYCC and HBR (High Bit Rate Audio) with HDMI Port (Compliant HDMI monitor is required)

Supports HW Accelerated Decoders: H.264 @ level 5.2, H.265/HEVC @ level 5 (GPU accelerated), JPEG, VP8

Supports HDCP with HDMI Port

Supports Full HD 1080p Blu-ray (BD) playback with HDMI Port

Audio

7.1 CH HD Audio (Realtek ALC887 Audio Codec)*

Supports Surge Protection (ASRock Full Spike Protection)

ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)

Premium Blu-ray Audio support

Supports Surge Protection (ASRock Full Spike Protection)
- ELNA Audio Caps

7.1 CH HD Audio (Realtek ALC887 Audio Codec)*

Supports Surge Protection (ASRock Full Spike Protection)

ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

7.1 CH HD Audio with Content Protection (Realtek ALC892 Audio Codec)

Premium Blu-ray Audio support

Supports Surge Protection (ASRock Full Spike Protection)

ELNA Audio Caps

7.1 CH HD Audio (Realtek ALC887 Audio Codec)*

Supports Surge Protection (ASRock Full Spike Protection)

ELNA Audio Caps

*To configure 7.1 CH HD Audio, it is required to use an HD front panel audio module and enable the multi-channel audio feature through the audio driver.

Lan

PCIE x1 Gigabit LAN 10/100/1000 Mb/s

Realtek RTL8111GR

Supports Wake-On-WAN

Supports Wake-On-LAN

Supports Lightning/ESD Protection (ASRock Full Spike Protection)

Supports LAN Cable Detection

Supports Energy Efficient Ethernet 802.3az

Supports PXE

Rear Panel I/O

1 x PS/2 Mouse Port

1 x PS/2 Keyboard Port

1 x D-Sub Port

1 x DVI-D Port

1 x HDMI Port

2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))

2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Line in / Front Speaker / Microphone

1 x PS/2 Mouse/Keyboard Port

1 x DVI-D Port

1 x HDMI Port

1 x DisplayPort 1.1a

1 x Optical SPDIF Out Port

2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))

4 x USB 3.0 Ports (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection))

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

1 x PS/2 Mouse Port

1 x PS/2 Keyboard Port

1 x Parallel Port (ECP/EPP Support)

1 x Serial Port: COM1

1 x D-Sub Port

1 x HDMI Port

2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))

2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Line in / Front Speaker / Microphone

1 x PS/2 Mouse/Keyboard Port

1 x DVI-D Port

1 x HDMI Port

1 x DisplayPort 1.1a

1 x Optical SPDIF Out Port

2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))

4 x USB 3.0 Ports (ASMedia ASM1074 hub) (Supports ESD Protection (ASRock Full Spike Protection))

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Rear Speaker / Central / Bass / Line in / Front Speaker / Microphone

1 x PS/2 Mouse Port

1 x PS/2 Keyboard Port

1 x Parallel Port (ECP/EPP Support)

1 x Serial Port: COM1

1 x D-Sub Port

1 x HDMI Port

2 x USB 2.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))

2 x USB 3.0 Ports (Supports ESD Protection (ASRock Full Spike Protection))

1 x RJ-45 LAN Port with LED (ACT/LINK LED and SPEED LED)

HD Audio Jacks: Line in / Front Speaker / Microphone

Storage

2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug

2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug

2 x SATA3 6.0 Gb/s Connectors by ASMedia ASM1061, support NCQ, AHCI and Hot Plug

2 x SATA3 6.0 Gb/s Connectors, support NCQ, AHCI and Hot Plug
Connector

1 x Print Port Header

2 x COM Port Headers

1 x TPM Header

1 x Chassis Intrusion Header

1 x CPU Fan Connector (3-pin)

1 x Chassis Fan Connector (3-pin)

1 x 24 pin ATX Power Connector

1 x Front Panel Audio Connector

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))*

*USB3_2_3 is shared with USB_45.

1 x COM Port Header

1 x TPM Header

1 x CPU Fan Connector (3-pin)

1 x Chassis Fan Connector (3-pin)

1 x 24 pin ATX Power Connector

1 x Front Panel Audio Connector

2 x USB 2.0 Headers (Support 4 USB 2.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))

1 x USB 3.0 Header (Supports 2 USB 3.0 ports) (Supports ESD Protection (ASRock Full Spike Protection))*

*USB3_3_4 is shared with USB_5_6.

BIOS

64Mb AMI UEFI Legal BIOS with GUI support

Supports Plug and Play

ACPI 1.1 compliant wake up events

Supports jumperfree

SMBIOS 2.3.1 support

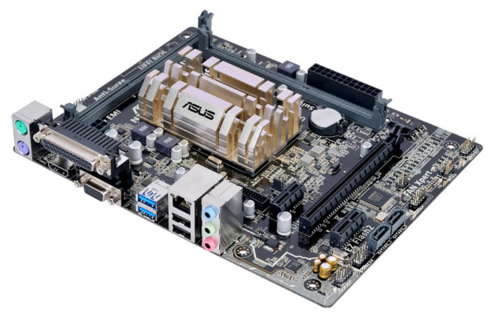

Asus N3150M-E

  • CPU: Intel Celeron? Quad-Core N3150 SoC onboard Processors
  • Memory:
    • 2 x U-DIMM, Max. 8GB, DDR3 1600/1066 MHz Non-ECC, Un-buffered Memory
    • Dual Channel Memory Architecture
  • Integrated Graphics Processor:
    • Multi-VGA output support : HDMI/RGB ports
    • Supports HDMI with max. resolution 3840 x 2160 @ 30 Hz
    • Supports RGB with max. resolution 1920 x 1200 @ 60 H
    • Maximum shared memory of 512 MB
  • Expansion Slots:
    • 1 x PCIe 2.0 x16 (x1 mode)
    • 2 x PCIe 2.0 x1
  • Storage:
    • Built-in Controller :
      • 2 x SATA 6Gb/s port(s), dark brown,
      • Supports Intel? Smart Connect Technology
  • LAN: Realtek? RTL8111H, 1 x Gigabit LAN Controller(s)
  • Audio: Realtek ALC887-VD2 8-Channel High Definition Audio CODEC
  • USB Ports:
  • Built-in Controller : 4 x USB 3.0 port(s) (2 at back panel, blue, 2 at mid-board)
  • GL852G USB Hub : 4 x USB 2.0 port(s) (2 at back panel, , 2 at mid-board)
  • ASUS 5X Protection :
    • ASUS LANGuard - Advanced LAN protection
    • ASUS Enhanced DRAM Overcurrent Protection - Short circuit damage prevention
    • ASUS ESD Guards - Enhanced ESD protection
    • ASUS High-Quality 5K-Hour Solid Capacitors - 2.5x long lifespan with excellent durability
    • ASUS Stainless Steel Back I/O - 3x more durable corrosion-resistant coating
  • ASUS Exclusive Features :
    • AI Suite 3
    • Anti-Surge
    • Low EMI Solution
    • ASUS UEFI BIOS EZ Mode featuring friendly graphics user interface
    • USB 3.0 Boost
  • ASUS Quiet Thermal Solution :
    • Fanless Design Heat-sink solution
    • ASUS Fan Xpert
  • Back I/O Ports:
    • 1 x PS/2 keyboard (purple)
    • 1 x PS/2 mouse (green)
    • 1 x D-Sub
    • 1 x HDMI
    • 1 x LAN (RJ45) port(s)
    • 2 x USB 3.0 (blue)
    • 2 x USB 2.0
    • 1 x Parallel port(s)
    • 3 x Audio jack(s)
  • Internal I/O Ports:
    • 1 x USB 2.0 connector(s) support(s) additional 2 USB 2.0 port(s)
    • 1 x COM port(s) connector(s)
    • 2 x SATA 6Gb/s connector(s)
    • 1 x CPU Fan connector(s) (1 x 4 -pin)
    • 1 x Chassis Fan connector(s) (1 x 4 -pin)
    • 1 x 24-pin EATX Power connector(s)
    • 1 x 4-pin ATX 12V Power connector(s)
    • 1 x Front panel audio connector(s) (AAFP)
    • 1 x Internal speaker connector(s)
    • 1 x System panel(s)
  • Form Factor:
    • mATX Form Factor
    • 8.9 inch x 7.0 inch ( 22.6 cm x 17.8 cm )


Related Posts
