ASUS ZenFone 4 Family Released in North America
The ASUS ZenFone 4 family has been released in North America, equipped with dual-camera systems: Meet the ZenFone 4 Pro, ZenFone 4, and ZenFone 4 Max.

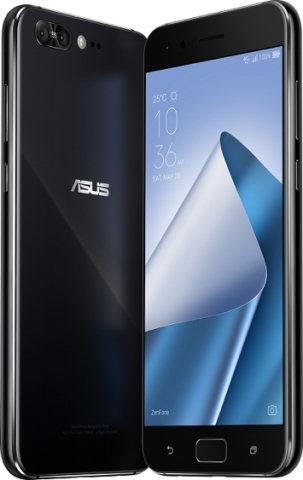

ZenFone 4 Pro: 10X zoom, 8X light sensitivity, 6GB RAM
The 5.5" ZenFone 4 Pro features a dual-camera system. Its main camera is equipped with the Sony IMX362 image sensor with a large 1/2.55-inch size, 1.4µm pixels and a wide, f/1.7-aperture lens. The dual-camera system on the ZenFone 4 Pro also has a 16MP camera with a 2X optical zoom and a 10X total zoom. The ASUS SuperPixel Engine increases captured light by up to 8X, and optical image stabilization (OIS) enables blur-free handheld exposures of up to 1/4 seconds.
The ZenFone 4 Pro is built on the Qualcomm Snapdragon 835 Mobile Platform featuring the Qualcomm Spectra 180 ISP and the Qualcomm Adreno 540 GPU. The ZenFone 4 Pro also features an integrated Snapdragon X16 LTE modem for connectivity up to 600Mbps as well as multi-gigabit 2x2 802.11ac Wi-Fi with MU-MIMO. Moreover, the built-in portable Wi-Fi hotspot lets users share LTE connectivity with other mobile devices such as laptops.
Built-in NFC enables mobile payments with Android Pay, and a front-mounted live fingerprint reader offers security and fast phone unlocking in just 0.3 seconds. To help prevent unauthorized use, the ZenFone 4 Pro has an extra-secure live fingerprint sensor. A capacitive sensor detects fingerprint details in the usual way, but there's an additional infrared optical sensor that detects blood flow under the skin. The ZenFone 4 Pro is available in Pure Black.

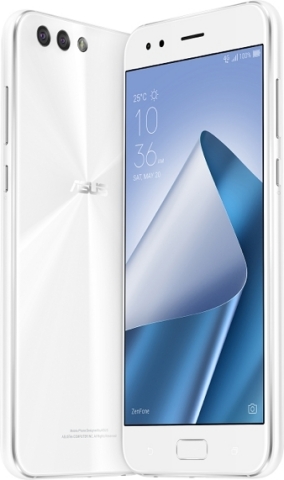

ZenFone 4: Dual cameras, 120° landscape photos
The 5.5" ZenFone 4's dual-camera system features a main camera with the Sony IMX362 image sensor and a f/1.8 aperture lens, as well as a 120° wide-angle lens.
The smartphone is powered by the Snapdragon 630 Mobile Platform and a high-capacity 3300mAh lithium-polymer battery. ASUS BoostMaster fast-charge technology means less charging and more moving. The ZenFone 4 also features 4GB of RAM and the Adreno 508 GPU. The device also features a quick 0.3 seconds fingerprint sensor and NFC, and is available in both Midnight Black and Moonlight White.

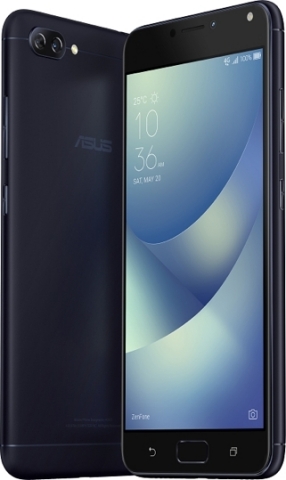

ZenFone 4 Max 5.5" and 5.2"
The ZenFone 4 Max smartphones are designed to be all-day photography companions, featuring a dual-rear-camera system with a 13MP main camera and a 120° wide-view camera. The ZenFone 4 Max comes in two different sizes. The ZenFone 4 Max (ZC554KL) features a 5.5-inch display and a 5000mAh battery with ASUS PowerMaster technology for a 46 days of 4G standby time. The ZenFone 4 Max (ZC520KL) features a 5.2-inch display with a fast-charging 4100mAh battery for up to 37 days 4G standby. With its massive battery power, the ZenFone 4 Max smartphones can double as a power bank to charge other devices, supplying 5V at 1A to attached devices when using a USB On-The-Go (OTG) cable. While charging other devices, the ZenFone 4 Max monitors its own charge level and will not allow the battery to drain below 30% capacity.
The ZenFone 4 Max smartphones run on the Qualcomm Snapdragon 430 and 425 Mobile Platforms, featuring the Qualcomm Adreno 505 and 308 graphics processors, respectively. They also support 4G LTE Category 4 for mobile download speeds up to 150Mbps.
| ZenFone 4 Pro | ZenFone 4 | |
| Colors | Pure Black | Midnight Black
Moonlight White |
| Design | Front 2.5D curved glass display
Front and rear Corning Gorilla Glass 2.1mm slim bezel 172g weight 156.9 x 75.6 x 7.6mm Live fingerprint sensor |
Front 2.5D curved glass display
Front and rear Corning Gorilla Glass 2.1mm slim bezel 155g weight 75.24 x 155.36 x 7.7mm Front fingerprint sensor |
| Display | 5.5" FHD 1920 x 1080 AMOLED display
500cd/m2 brightness for outdoor readability Capacitive touch panel with 10-point multi-touch (supports glove touch) Blue-light filter for eye care |
5.5" FHD 1920 x 1080 Super IPS+ display
600 cd/m2 brightness for outdoor readability Capacitive touch panel with 10-point multi-touch (supports glove touch) Blue-light filter for eye care |
| CPU | Qualcomm Snapdragon 835 Mobile Platform with 10nm, 64-bit processor | Qualcomm Snapdragon 630 Mobile Platform with 14nm, 64-bit processor |
| GPU | Qualcomm Adreno 540 | Qualcomm Adreno 508 |
| RAM/ROM | 6GB RAM / 64GB ROM | 4GB RAM / 64GB ROM |
| Main rear camera | 12MP Sony IMX362 image sensor
1/2.55" sensor size, 1.4μm pixel size f/1.7 aperture lens 83° field of view 25mm focal length World’s fastest 0.03s Dual Pixel PDAF (100% pixel used for focusing) 4-axis, 4-stop optical image stabilization for steady photos Color correction (RGB) sensor LED Flash Laser and continuous focus PixelMaster camera modes: Auto mode with low light and HDR / Pro / Super Resolution (48MP) / Beauty / GIF Animation / Panorama / Slow Motion / Time Lapse with Power Saving Mode / 9 various filters |
12MP Sony IMX362 image sensor
1/2.55" sensor size, 1.4μm pixel size f/1.8 aperture lens 83° field of view 25mm focal length World’s fastest 0.03s Dual Pixel PDAF (100% pixel used for focusing) 4-axis, 4 stop optical image stabilization for steady photos Color correction (RGB) sensor LED Flash Instant camera switching PixelMaster camera modes: Auto mode with low light and HDR / Pro / Super Resolution (48MP) / Beauty / GIF Animation / Panorama / Slow Motion / Time Lapse with Power Saving Mode / 9 various filters |
| Second rear camera | 16MP Sony IMX351 image sensor
2X optical zoom 10X total zoom 50mm focal length |
8MP 120° wide-angle camera with 200% wider view |
| Front camera | 8MP Sony IMX319 image sensor
F1.9 aperture 87.4° field of view 1.4μm pixel size |
8MP
F2.0 aperture 84° field of view 24mm focal length |
| Video recording | 4K UHD at 30 fps video recording
3-axis electronic image stabilization for selfie and rear camera shake-free videos Still image capture during video recording |
4K UHD at 30 fps video recording
3-axis electronic image stabilization for rear camera's shake-free videos Still image capture during video recording |
| Wireless technology | LTE Category 12
802.11a/b/g/n/ac/ad Wi-Fi Bluetooth 5.0 Wi-Fi direct NFC |
LTE Category 12
802.11a/b/g/n/ac Wi-Fi Bluetooth 5.0 Wi-Fi direct NFC |
| Connectivity | USB-C 2.0
Front live fingerprint sensor, 0.3 seconds fingerprint unlock, support 5 fingers 360° recognition |
USB-C 2.0
Front fingerprint sensor, 0.3 seconds fingerprint unlock, support 5 fingers 360° recognition |
| SIM cards | Hybrid slot: Dual SIMs and one MicroSD card
Slot 1: 2G/3G/4G nano-SIM card Slot 2: 2G/3G/4G nano-SIM card or MicroSD card |
Hybrid slot: Dual SIMs and one MicroSD card
Slot 1: 2G/3G/4G nano-SIM card Slot 2: 2G/3G/4G nano-SIM card or MicroSD card |
| Navigation | GPS, A-GPS, GLONASS, BDSS, GAL | GPS, A-GPS, GLONASS, BDSS, GAL |
| Operating system | Android N with new ASUS ZenUI 4.0 | Android N with new ASUS ZenUI 4.0 |
| Battery | 3600mAh capacity | 3300mAh capacity |
| Audio | Dual speakers
Triple internal mics with ASUS noise reduction technology FM radio Audio CODEC Hi-Res Audio 192kHz/24-bit standard that is 4 times better than CD quality DTS (Digital Theater System) Headphone:X 7.1 virtual surround sound for headphone support |
Dual speakers
Audio CODEC integrated into PMIC Hi-Res Audio 192kHz/24-bit standard that is 4 times better than CD quality DTS (Digital Theater System) Headphone:X 7.1 virtual surround sound for headphone support Dual internal mics with ASUS noise reduction technology |
| ZenFone 4 Max (ZC554KL) | ZenFone 4 Max (ZC520KL) | |
| Colors | Deepsea Black | Deepsea Black |
| Design | 2.5D-contoured glass display
Premium metal body and multiple color selections 181g weight 154 x 76.9 x 8.9mm |
2.5D-contoured glass display
Premium metallic finished design and multiple color selections 156g weight 150.5 x 73.3 x 8.73 mm |
| Display | 5.5" HD IPS (720 x 1280) display
Capacitive touch panel with 10 points multi-touch Blue-light filter for eye care |
5.2" HD IPS (720 x 1280) display
Capacitive touch panel with 10 points multi-touch Blue-light filter for eye care |
| CPU | Qualcomm Snapdragon 430 Mobile Platform with 64-bit Octa-core Processor | Qualcomm Snapdragon 425 Mobile Platform with 64-bit Quad-core Processor |
| GPU | Qualcomm Adreno 505 | Qualcomm Adreno308 |
| RAM/ROM | 3GB RAM / 32GB ROM | 2GB RAM / 16GB ROM |
| Main rear cameras | 13MP
f/2.0 aperture 25mm equivalent focal length in 35mm film camera 80° field of view LED flash Instant cameras switching Phase detection auto-focus PixelMaster camera mode: |
13MP
f/2.0 aperture 25mm equivalent focal length in 35mm film camera 80° field of view LED flash Instant cameras switching Phase detection auto-focus PixelMaster camera mode: |
| Second rear
camera |
120° wide-angle camera
200% wider view for more friends and scenery in the frame 17.9mm equivalent focal length in 35mm film camera |
120° wide-angle camera 200% wider view for more friends and scenery in the frame 17.9mm equivalent focal length in 35mm film camera |
| Video recording | 1080p FHD video recording at 30 fps
Take still photo while recording video Electronic image stabilization for shake-free videos 120˚ wide angle video |
1080p FHD video recording at 30 fps
Take still photo while recording video Electronic image stabilization for shake-free videos 120˚ wide angle video |
| Front camera | 8MP
24mm equivalent focal length in 35mm film camera 85° field of view Softlight LED flash Auto with HDR features, Beauty, Selfie Panorama, GIF Animation modes |
8MP
24mm equivalent focal length in 35mm film camera 85° field of view Softlight LED flash Auto with HDR features, Beauty, and Selfie Panorama modes |
| Wireless technology | Integrated 802.11b/g/n 2.4Ghz; Wi-Fi Direct
4G LTE Cat 4 150/50Mbps (download/upload) |
Integrated 802.11b/g/n 2.4Ghz; Wi-Fi Direct
4G LTE Cat 4 150/50Mbps (download/upload) |
| Connectivity | Bluetooth 4.1
Micro-USB 2.0 (supports OTG) 0.3s ultrafast fingerprint unlock, five-finger, 360° recognition |
Bluetooth 4.1
Micro-USB 2.0 (supports OTG) 0.3s ultrafast fingerprint unlock, five-finger, 360° recognition |
| SIM cards | Triple Slots: 2 x SIM & 1 x MicroSD card Slot 1: Nano SIM (2G / 3G / 4G) Slot 2: Nano SIM (2G / 3G / 4G) Both SIM card slots support 3G WCDMA / 4G LTE network band. But only one SIM card can connect to 4G LTE service at a time. |
Triple Slots: 2 x SIM & 1 x MicroSD card Slot 1: Nano SIM (2G / 3G / 4G) Slot 2: Nano SIM (2G / 3G / 4G) Both SIM card slots support 3G WCDMA / 4G LTE network band. But only one SIM card can connect to 4G LTE service at a time. |
| Navigation | GPS, AGPS, GLO, BDS | GPS, AGPS, GLO |
| Operating system | Android N with ASUS ZenUI, featuring:
Animated weather / Depth of field effect / |
Android N with ASUS ZenUI, featuring:
Animated weather / Depth of field effect / |
| Battery | 5000mAh capacity with fast charging
2X faster reverse charging (1A) Up to 46 days 4G standby Up to 40 hours 3G talk time Up to 22 hours video playback Up to 26 hours Wi-Fi web browsing ASUS PowerMaster Technology: Power bank mode for 2X-faster reverse charging 10% battery provides 91 hours standby 2X-longer battery lifespan |
4100mAh capacity with fast charging
2X faster reverse charging (1A) Up to 37 days 4G standby Up to 31 hours 3G talk time Up to 101 hours Music playback Up to 21 hours Wi-Fi web browsing ASUS PowerMaster Technology: Power bank mode for 2X-faster reverse charging 10% battery provides 88 hours standby 2X-longer battery lifespan |
| Audio | Loudspeaker with PMIC internal amplifier
2 x internal microphones with ASUS Noise Reduction Technology |
Loudspeaker with PMIC internal amplifier
2 x internal microphones with ASUS Noise Reduction Technology |
