BenQ DW1620A DL Recorder - Page 15

KProbe/PlexTools Scans - Page 4

In the following screenshots you can see the PI/PIF scans for the burned DVD±R media . The software we used for all measurements is KProbe v2.4.0, and the reader is the LiteOn LDW-811S with "HS0Q patched" firmware, being able to read DVD±R/RW media up to 8X CAV. All scans have been performed at 8X with PI/PIF Sum8. In addition, all discs have been scanned with the PX-712A (v1.04 firmware) using PlexTools v2.16 for comparison levels.

Comparing the KProbe and PlexTools scans we can see major differences in the reported PI/PIF error rates. The main explanation is that we have two different readers, with different pickup/chipset combinations, scanning at different reading speeds (8X CAV for KProbe, 2X CLV for PlexTools). It's interesting to see the disc scanned at low & high speeds, since when the error rate increases at a specific disc area, it should appear in both scans...else it would be, perhaps, a reading glitch of the tested reader.

Note: PI/PIF errors only give us a quick look at the error rate of the burned media. Those scans should be taken not as the absolute criteria of the burning quality but as an indication level.

4X DVD-R Writing Speed

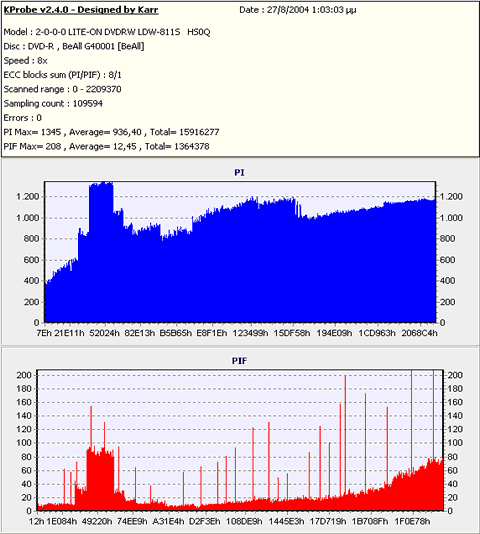

• BeALL 4X DVD-R @ 4X

• BenQ 4X DVD-R @ 4X

• Mam-e 4X DVD-R @ 4X

• Maxell 4X DVD-R @ 4X

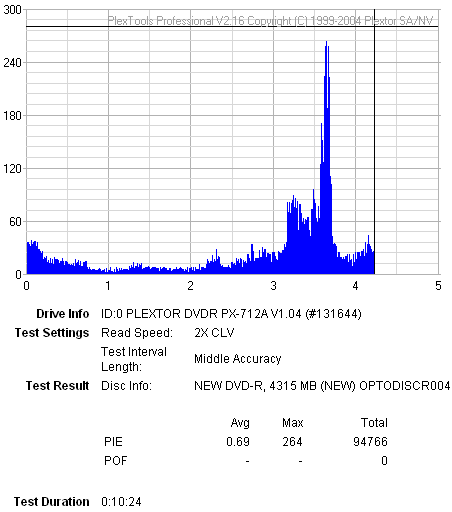

• Optodisc 4X DVD-R @ 4X

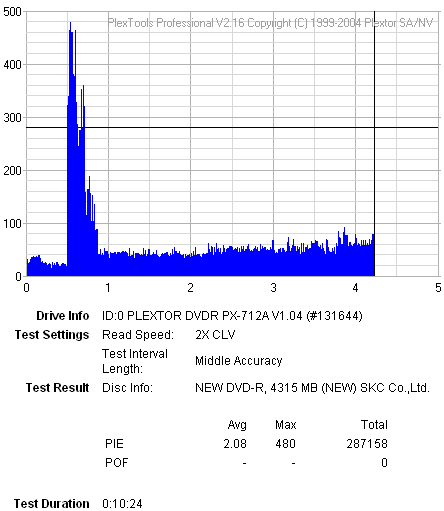

• SKC 4X DVD-R @ 4X

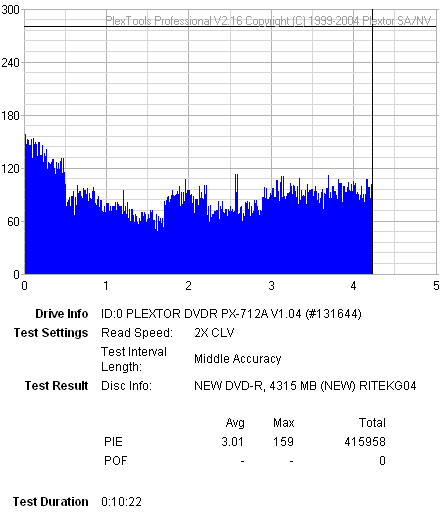

• TraxData 4X DVD-R @ 4X

• Verbatim 4X DVD-R @ 4X

- Summary

Here too, the two graphs show a totally different picture. The PIF scans with Plextools were low, while the KProbe scans in most cases were the opposite. The best results came with Maxell and Verbatim 4X rated media.
