Datawrite Media Tests - Page 8

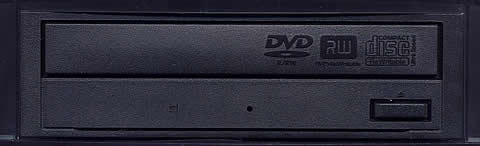

Freecom FX-50 ( v2.46)

Drive	Freecom FX-50 DVD+/-RW 16X Burner
Media	DVD		CD
Transfer Rate Write	+R	16x CAV (9 - 22MBytes/sec)	-R	48x CAV (3000-200kBytes/sec)
		13x CAV (7.3 - 17.5MBytes/sec)		48xZCLV (3000-7200kBytes/sec)
		12x ZCLV (8.2 – 16.6MByte/sec)		40x CAV (2550-6000kBytes/sec)
		8x ZCLV (5.5 -11MBytes/sec)		40xZCLV (3000-6000kBytes/sec)
		6x ZCLV (5.5-8.2MBytes/sec)		32xPCAV (2550-4800kBytes/sec)
		4x CLV (5.5 MBytes/sec)		32x ZCLV (3000-4800kBytes/sec)
		2.4x CLV (3.3 MBytes/sec)		24x PCAV (2550-3600kBytes/sec)
	+R9	4x CLV (5.5 MBytes/sec)		24x ZCLV (3000-3600kBytes/sec)
		2.4x CLV (3.3 MByte/sec)		16x CLV (2400kBytes/sec)
	+RW	4x CLV (5.5 MBytes/sec)		8x CLV (1200kBytes/sec)
		2.4x CLV (3.3 MBytes/sec)	-RW	24x ZCLV (3000-3600kBytes/sec)
	-R	16x CAV( 9 - 22MBytes/sec)
		13x CAV (7.3 - 17.5MBytes/sec)
		12x ZCLV (8.2 – 16.6MByte/sec)		16x CLV (2400kBytes/sec)
		8x ZCLV (5.5 -11MBytes/sec)
		6x ZCLV (5.5-8.2MBytes/sec)
		4x CLV (5.5 MBytes/sec)		10xCLV (1500kBytes/sec)
		2x CLV (2.7 MBytes/sec)
	-RW	4x CLV (5.5 MBytes/sec)
		2x CLV (2.7 MBytes/sec)		4xCLV (600kBytes/sec)
		1x CLV (1.38 MBytes/sec)
Transfer Rate Read		DVD-R 16x CAV (max 22000 kb/s)	CD-R 48x CAV (max 4800 kb/s)
		DVD-RW 4x CLV (5520 kb/s)
		DVD+R 16x CAV (max 22000 kb/s)	CD-RW 16x CLV (max 2400 kb/s)
		DVD+RW 4x CLV (5520 kb/s)
		DVD+R9 4X CLV (5500 KByte/s)
Access Time		140ms	120ms
Mechanism	motorized Tray load mechanism for horizontal and vertical use
Interface	USB (USB2.0 or USB1.1) & Firewire/iLink IEEE 1394
Cashe Memory	2MB
Modes supported	DVD-ROM, DVD-R, DVD-RW, DVD+R, DVD+RW, DVD-Video, CD-ROM, CD-ROM XA, CD-Audio, CD Extra, CD Text, CD-IReady, CD-Bridge, Photo-CD, VideoCD, Hybrid CD
Writing methods	DAO(disc at once), SAO(session at once), TAO(track at once) with zero gap, variable or fixed packet, multisession
Compatibility	MPC Level 3, MultiRead, PC2001

Datawrite 8X DVD-R Printable @ 8X

Datawrite 8X DVD-R @ 8X

Datawrite 8X DVD+R @ 8X

Datawrite 4X DVD+RW @ 4X

- Summary

Media	Code ID	Speed	Time
Datawrite DVD-R 8X Printable	CMC MAG AE1	8X	9:37
Datawrite DVD-R 8X	CMC MAG AE1	8X	9:38
Datawrite DVD+R 8X	MCC 003	8X	9:35
Datawrite DVD+RW 4X	PRODISC W02	4X	14:34
