Apart from the full-size layout, Endorfy also sells the TKL version (without keypad) that shrinks further down the dimensions of the product and overall weight. All other features are more or less the same, excellent build quality, and quality Yellow switches from Gareton. The retail package design is the same, and again, the magnetic palm rest should be bought separately. The retail price of the TKL version is around 68 Euro (Polish website conversion), and we expect around 70-75 Euro final retail price in Europe.

Same internal design for the main product and same package inserts:

• 1× ENDORFY Thock V2 TKL Wireless keyboard
• 1× Wireless USB receiver
• 2× Spare switch ENDORFY Yellow by Gateron
• 1× Keycap removal tool
• 1× Switch removal tool
• 1× Detachable USB-C to USB-A cable
• 1× Set of gray ESC and ENTER keycap
• 1× User manual

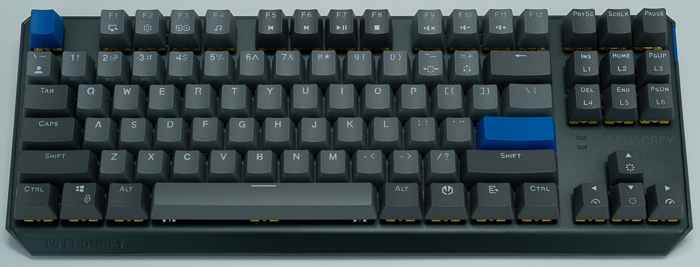

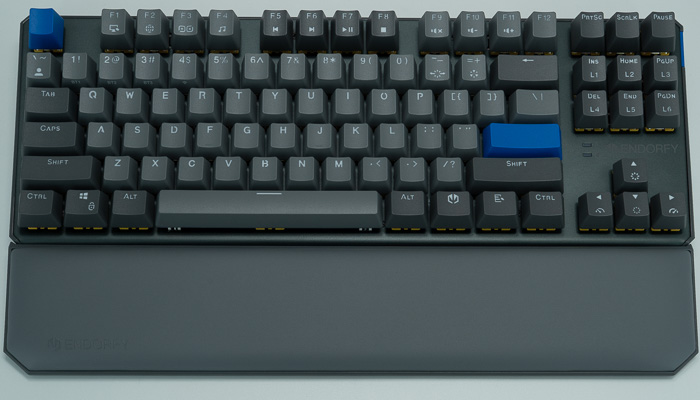

Here is what the product will look like after it is fully assembled. Note that now we have only two LEDs, and the rotating metal knob is gone, along with the numeric keypad. Other keys are present (like PageUp/Down, Insert, Del, and four arrow keys).

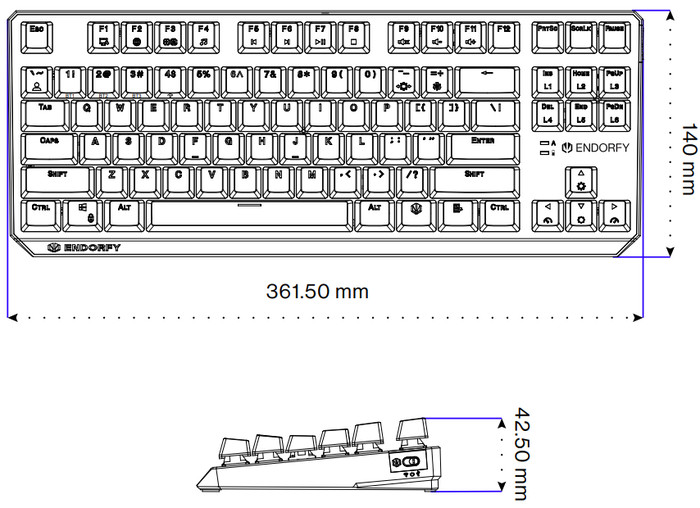

The product has 361.5×140×42.5 dimensions with 87 keys

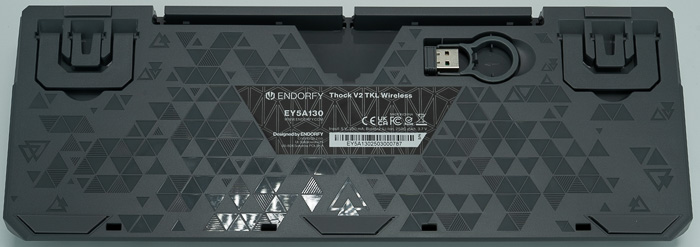

The bottom of the TKL version has the same design as before.

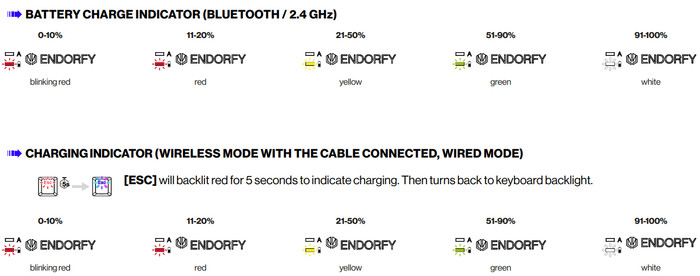

The product, as the non-TKL, includes a battery that can be charged via the included Type-C cable and should hold around 3-4 days of constant use.

The TKL version also includes a switch on the right to set up the working mode of the keyboard.

WIRELESS MODE (Bluetooth & 2.4 GHz)

Selecting Bluetooth device 1/2/3

After successful connection, the [1]/[2]/[3] key (depends on selected device: BT1/BT2/BT3) will be backlit white for 2 seconds and then turn the same color as the keyboard backlight. After failed connection to selected device, the [1]/[2]/[3] key (depends on selected device: BT1/BT2/BT3) will blink white 10 times and keyboard backlight will be switched off. Press any key to recover connecting.

Pairing Bluetooth device 1/2/3

The [1]/[2]/[3] key (depends on selected device: BT1/BT2/BT3) starts blinking white quickly. After successful pairing, the [1]/[2]/[3] key (depends on selected device: BT1/BT2/BT3) will turn white for 2 seconds and then turn the same color as the keyboard backlight from before pairing. After failed pairing for 30 seconds, the pairing mode and keyboard backlight will be switched off. Press any key to recover connection.

Connecting 2.4 GHz (USB receiver)

Plug USB dongle to device – 2.4 GHz mode should connect automatically. [4] key will backlit white for 2 seconds to indicate successful connection and turns back to keyboard backlight. If fail to connect automatically, press [FN] + [4], then the [4] key will backlit white for 2 seconds to indicate successful connection and turns back to keyboard backlight. After failed connection to device, the [4] key will blink white 10 times and keyboard backlight will be switched off. Press any key to recover connecting.

Pairing 2.4 GHz

The [4] key starts blinking white quickly. Plug USB receiver to device. After successful pairing, the [4] key will turn white for 2 seconds to indicate successful connection and turns back to keyboard backlight. After failed pairing for 30 seconds, the pairing mode and keyboard backlight will be switched o. Press any key to recover connecting.

In wireless mode (Bluetooth and 2.4 GHz), if the keyboard is not used for 5 minutes, the device will enter 1st level of sleep mode. Keyboard backlight will be switched OFF. Press any key to switch backlight of keyboard ON. In wireless mode (Bluetooth and 2.4 GHz), if the keyboard is not used for 15 minutes, the device will enter 2nd level of sleep mode. Keyboard backlight will be switched OFF and Bluetooth connection will be disabled. Press any key to switch backlight of keyboard ON and restore Bluetooth connection.

There are also many different keyboard sortcuts that users can use to perform variou different functions of the keyboard, without the use of any software like: FACTORY RESET -> Press [FN] (key with the ENDORFY logo) + [ESC] for 3 seconds to restore factory settings. IMPORTANT: Factory reset causes all Bluetooth records to be cleared!, look at the full manual of the product for more keyboard functions.
