EnGenius Fit Wi-Fi 6 EWS850-FIT
1. Introduction
Review Pages
EnGenius recent Fit series apart from the internal Access Points also include external devices that can further boost Wireless performance of your local network. The EWS850-Fit is the answer to this need and today we will examine what this device can do and how.

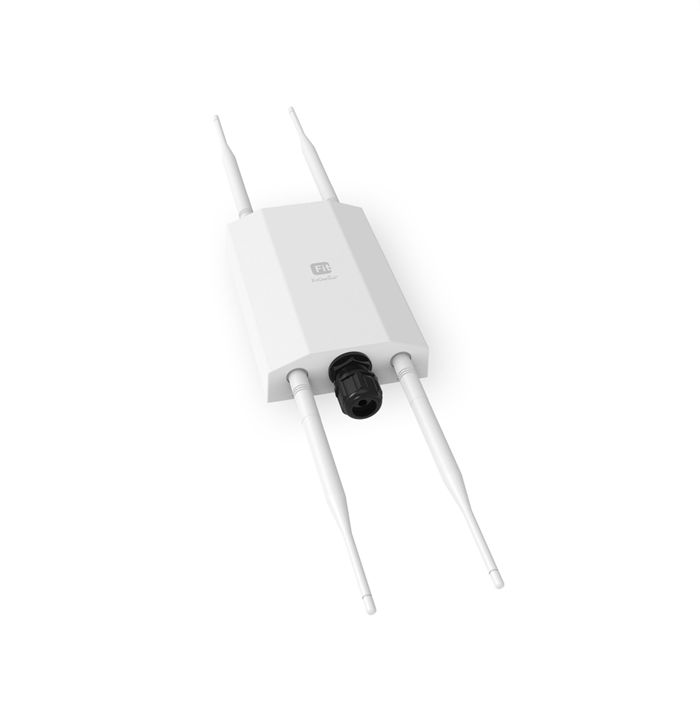

The EnGenius Fit Managed EWS850-FIT Wi-Fi 6 2x2 dual band
IP67 outdoor wireless access point is a business-class device
that provides secure and reliable high performance while
reducing capital and operating expenses for cost-conscious
small businesses. With support for the latest 802.11ax
technology, this access point is capable of delivering maximum
speeds of 574 Mbps (2.4 GHz frequency) and 1,200 Mbps
(5 GHz frequency).Designed for peak performance in harsh
climates, EnGenius Fit Wi-Fi 6 outdoor access points feature
IP67-rated waterproof and dustproof enclosures ensuring
they can withstand harsh outdoor environments.
Manage your network onsite or on-the-go through the FitXpress cloud-based mobile app or web portal. Additionally, FitController gives you greater control of your network using plug-n-play hardware with embedded network management software. Admins can easily view detailed analytics from a single pane of glass as well as monitor and troubleshoot issues instantly.
- Features
- Dual concurrent 802.11ax architecture & backward-compatible with 11ac/a/b/g/n client devices; 2x2 antenna
- Supports up to 1,200 Mbps in 5-GHz frequency band & 574 Mbps in 2.4-GHz frequency band
- IP67-Rated weatherproof & dustproof housing withstands harsh environments
- 2.5 GigE PoE+ compatible port for easy placement where power outlets are scarce
- Select cloud or on-premises management options based on network architecture, administrative permissions
- From anywhere cloud visibility and control
- Setup in minutes with app-based step by step instructions
- Quick-scan device register, remote monitoring and troubleshooting
- Real-time system metrics, analytics and remote configurations
- No access point licensing or subscription fees
- Uplink and downlink of OFDMA improves transmission to APs and client devices
- Target wake time for power-saving of client & IoT devices
- Uplink & downlink of MU-MIMO for optimal signal & reception reliability for up to 2 devices
- Technical Specifications
Standards
IEEE 802.11b/g/n/ax on 2.4GHz
IEEE802.11a/n/ac/ax on 5GHz
Processor
Qualcomm® Quad-Core CPU ARM Cortex A53s @ 1.8GHz
Antenna
Four (4) External 5 dBi Dual-Concurrent Omni-Directional Antenna
SMA-Type
Physical Interface
1 x 10/100/1000/2500 BASE-T, RJ-45 Ethernet Port
LED Indicators
1 x Power
1 x LAN
1 x 2.4 GHz
1 x 5 GHz
Power Source
Power-over-Ethernet: 802.3af/at
Proprietary 48V – 54V
IEEE 802.11e Compliant Source
Active Ethernet (PoE)
Maximum Power Consumption
15.9W
Surge Protection
1KV
ESD Protection
Contact: 4KV
Air: 8 KV
Wireless & Radio Specifications
Operating Frequency
Dual-Radio Concurrent 2.4GHz & 5 GHz
Operation Modes
AP, Mesh
Frequency Radio
2.4GHz: 2400 MHz ~ 2482 MHz
5GHz: 5150 MHz ~ 5250 MHz, 5250 MHz ~ 5350 MHz, 5470 MHz ~ 5725 MHz, 5725MHz ~ 5850MHz
Transmit Power
2.4GHz: 23dBm
5GHz: 25dBm
Maximum power is limited by regulatory domain
Tx Beamforming (TxBF)
Increasing signal reliability and transmitting distance.
Radio Chains/Spatial Stream
2x2:2
SU-MIMO
Two (2) spatial streams SU-MIMO for 2.4GHz and two (2) spatial streams SUMIMO for 5GHz up to 1,774Mbps wireless data rate to a single 11ax wireless client device under both the 2.4G Hz and 5GHz radios.
MU-MIMO
Two (2) spatial streams multiple (MU)-MIMO for up to 1200 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 5GHz simultaneously
Two (2) multiple (MU)-MIMO for up to 574 Mbps wireless data rate to transmit to one (1) two streams MU-MIMO 11ax capable wireless client devices under 2.4GHz simultaneously.
Supported Data Rates (Mbps):
802.11ax:
2.4 GHz: 9 to 574 (MCS0 to MCS11, NSS = 1 to 2)
5 GHz: 18 to 1200 (MCS0 to MSC11, NSS = 1 to 2)
802.11b: 1, 2, 5.5, 11
802.11a/g: 6, 9, 12, 18, 36, 48, 54
802.11n: 6.5 to 300 Mbps (MCS0 to MCS15)
802.11ac: 6.5 to 867 Mbps (MCS0 to MCS9, NSS = 1 to 2)
Supported Radio Technologies
802.11ax: Orthogonal Frequency Division Multiple Access (OFDMA)
802.11b: Direct-sequence spread-spectrum (DSSS)
802.11ac/a/g/n: Orthogonal Frequency Division Multiple (OFDM)
Channelization
802.11ax supports high efficiency (HE) —HE 20/40/80 MHz
802.11ac supports very high throughput (VHT) —VHT 20/40/80 MHz
802.11n supports high throughput (HT) —HT 20/40 MHz
802.11n supports very high throughput under the 2.4GHz radio –VHT40 MHz (256-QAM) 802.11n/ac/ax packet aggregation: A-MPDU, A-SPDU
Supported Modulation
802.11ax: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM, 1024-QAM
802.11ac: BPSK, QPSK, 16-QAM, 64-QAM, 256-QAM
802.11a/g/n: BPSK, QPSK, 16-QAM, 64-QAM
802.11b: BPSK, QPSK, CCK
Management
Multiple BSSID
8 SSIDs for both 2.4GHz and 5GHz radios
VLAN Tagging
Supports 802.1q SSID-to-VLAN Tagging
Cross-band VLAN Pass Through
Management VLAN
Spanning Tree
Supports 802.1d Spanning Tree Protocol
QoS (Quality of Service)
Complaint With IEEE 802.11e Standard WMM
SNMP
v1, v2c, v3
MIB
I/II, Private MIB
Wireless Security
WPA3-PSK (SAE)
WPA3 Enterprise
WPA2 Enterprise (AES)
WPA2 AES-PSK
OWE
Hide SSID in Beacons
MAC Address Filtering, Up to 32 MACs per SSID
Wireless STA (Client) Connected List
SSH Tunnel
Client Isolation
Environmental & Physical
Temperature Range
Operating: -4º~140ºF/-20ºC~60ºC
Storage: -40Fº~176ºF/-40ºC~80ºC
Humidity (non-condensing)
Operating: 90% or less
Storage: 90% or less
Waterproof & Dustproof
IP67-Rated Enclosure
