JSAUX Omnicase 2 Pro Dock 12in1

Jul 31,2023 0

1. Introduction



Review Pages

1. Introduction
2. Retail Package / Conclusion



We had already tested the JSAUX OmniCase 2 product that aimed not only at SteamDeck users but as a universal Dock for mobile users or road warriors. The project is currently supported via Kickstarter and if you hurry up you will buy the product at a reduced price and with many gifts. Visit the Kickstarter website now and don't miss this chance.

The JSAUX OmniCase 2 Pro actually is more or less the same product as the Omnicase 2, with some special additional ports. In a nutshell, it's a nice and clever way to store many cables, adapters, microSD, and SD cards in one box and at the same time have the functionality of a docking station.

Features

  • 【12-in-1 Storage Docking Station】OmniCase 2 Pro storage docking station has 12 functional ports, including 2* HDMI port (4K@60Hz), 1*USB-A 3.0(5Gbps data transmission), 1*USB-A 2.0(480Mbps data transmission),1*Gigabit Ethernet port, 1*USB C-PD port, 1*3.5mm audio interface,1*TF card slot, 1*SD card slot,1*DisplayPort(4K@60Hz) and 2*USB C port. The ultimate 12-port docking station, everything you need in one place!

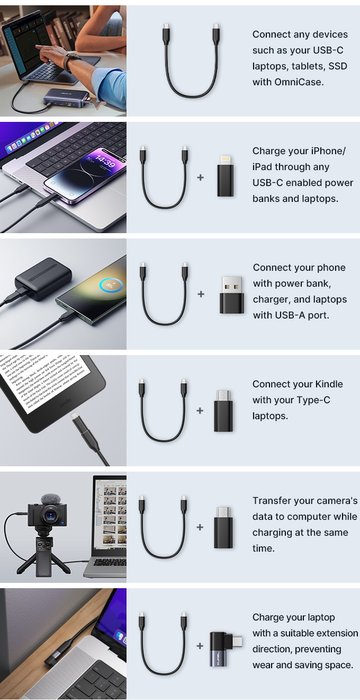

  • 【 Electronic Storage Function Design】Comes with multiple types of cables and adapters, which can be conveniently taken out and connected to your devices, making your tech life easier. You will get USB-C to USB-C 3.2 cable, USB-C to USB micro-B adapter, USB-C Female to USB-A male adapter, a 90° female-to-male USB-C adapter, and an Ejector pin tool.
  • 【One-Piece Magnetic Suction Design】Our innovative one-piece magnetic suction design ensures a seamless connection between your devices. Simply bring them close, and the magnetic force securely holds them in place. You can conveniently take it with you wherever you go.
  • 【4K@60Hz Ultra HD & Triple Display】Immerse yourself in stunning 4K@60Hz resolution via our HDMI and DisplayPort outputs for a visual feast.12-in-1 storage docking station supports Windows system triple screen display mirror and extend mode(A-AAA, A-BBB, and A-BCD), and can support triple screen display MAC OS system mirror mode (A-AAA and A-BBB).
  • 【PD100W Charging & 5Gbps Data Transfer】With a USB-C PD3.0 100W charging port, supports 100W max power input, which can quickly charge your tablets, notebooks, and Steam Deck at full speed, providing a reliable power source for all your devices.OmniCase 2 Pro Storage Docking Station offers 1SD Card Slot,1 TF Card Slot,1 USB-A 3.0 port,1 USB-C 3.0 port, and 1 USB-A 2.0 port to ensure you get fast data transfer at up to 5Gbps.

The JSAUX Omnicase 2 Pro comes with the MP04 codename and can be used in various different scenarios

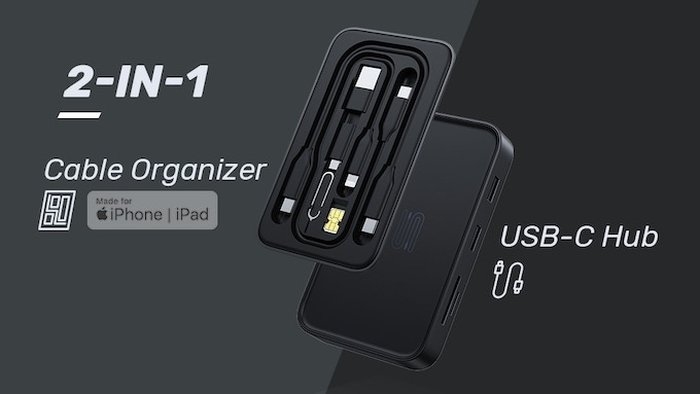

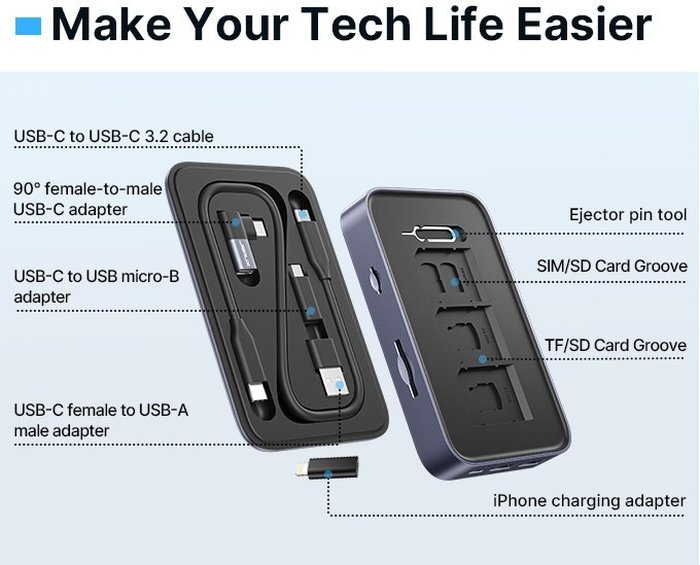

The product sports magnets and houses internally many different cables/adapters that will make your tech life easier.

The included 1Gbit LAN and SD/microSD ports make it ideal for photographers as well.

The JSAUX Omnicase 2 Pro can also be used as a multi-device charging station.

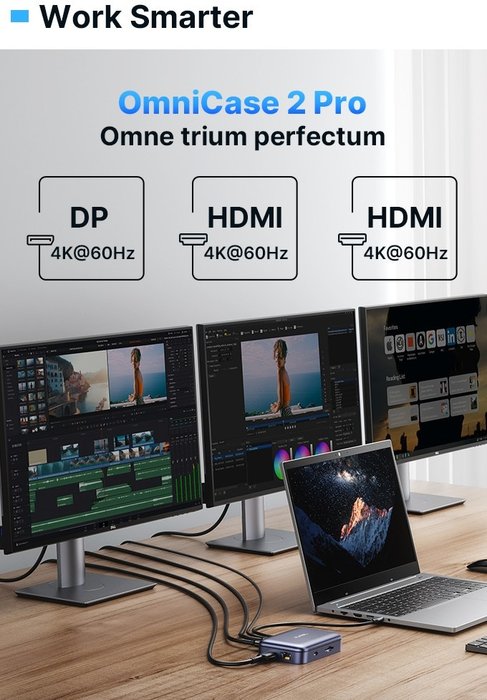

The Omnicase 2 Pro includes three output display ports for users to choose from.

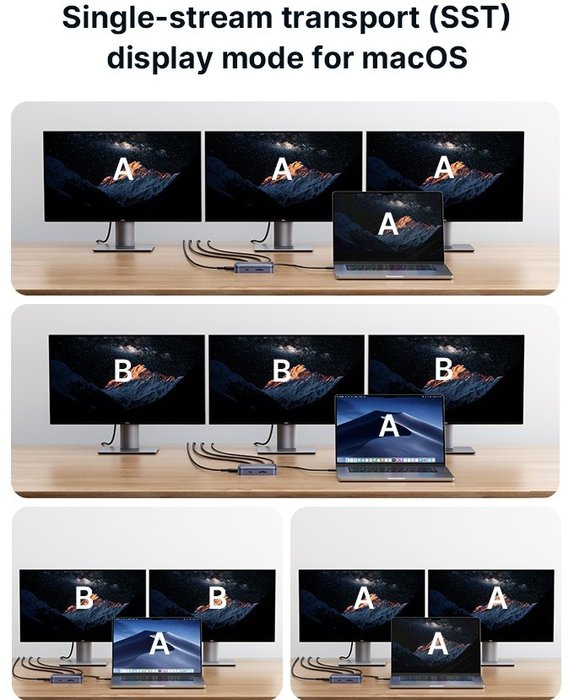

Under Windows or MacOS users can enjoy from different display modes, when connecting a laptop device.

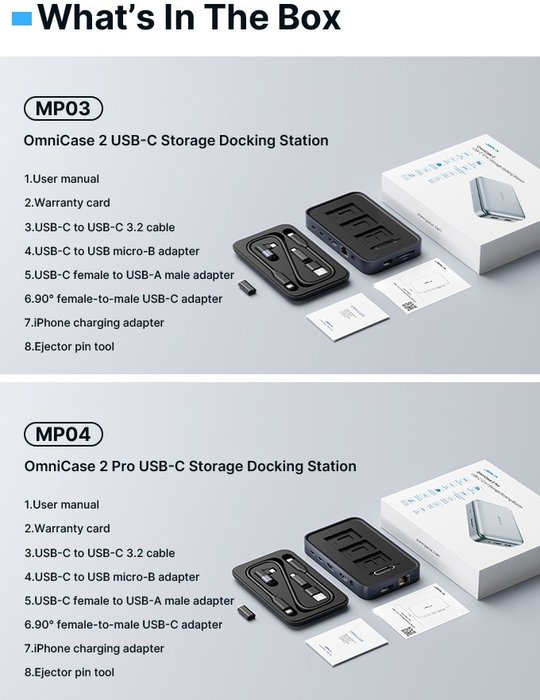

The contents for both the Omnicase 2 and Omnicase 2 Pro are the same

The main differences between the MP03 (Omnicase 2) and MP04 (Omnicase 2 Pro) are illustrated below:

Ports MP03 (Omnicase 2) MP04 (Omnicase 2 Pro)
In: USB-C 1 1
USB-C PD (100 Watt) 1 1
SD Card Slot (104MB/sec) 1 1
MicroSD Card Slot (104MB/sec) 1 1
3.5mm Audio Jack 1 1
1GBit LAN 1 1
USB-A 2.0 (480Mbps, 5W) 1 1
USB-A 3.0 (5Gbps, 5W) 2 1
USB-C 3.0 (5Gbps, 5W) - 1
HDMI (4K @ 60Hz) 1 2
DP (4K @ 60Hz) - 1
Product weight 210g 214gr
Product dimensions 126 (L) X 26 (W) X 78 (H) mm
Price (early bird) $59.99 $79.99
Final price $69.99 $99.99

The main differences between the two products are the addition of two extra output display ports (2xHDMI, 1xDP vs 1x HDMI) and the removal of one USB-A port from the Omnicase 2, and the addition of a TypeC at the Omnicase 2 Pro. Slight different specs for users to have more options and selections.
