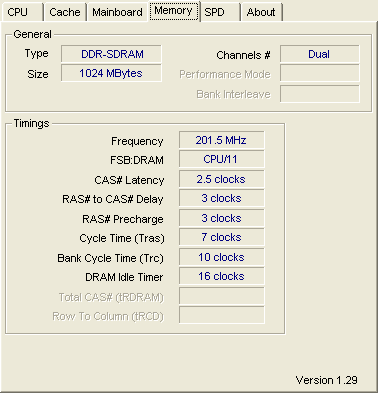

After installing the two memory modules, we checked with the BIOS utility and with CPU-Z to see the SPD Timings. The memory uses two SPD timings. When the frequency clock is set to 400MHz, the memory will go with 2.5-3-3-7 timings, but if you choose to reduce the frequency clock to 266MHz (cannot see why someone want to) you will have 2-2-2-5 timings.

Of course, in this review, we will be testing the Kingmax DDR-400 modules operating at 400MHz (200MHz - Dual Channel).

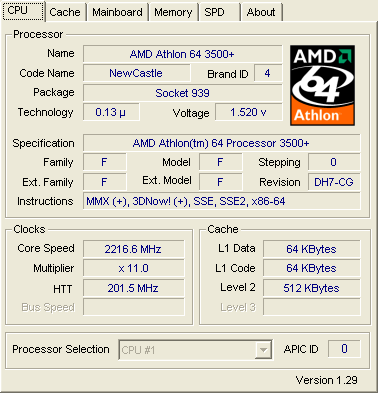

For these tests we used an AMD Athlon 64 3500+ CPU (Newcastle), running at 2200MHz.

In this review, we will be comparing the Kingmax DDR-400 with the Corsair XMS TwinX 1024-3200XL and Apacer Real500 Ram Modules. Below you can see the SPD Timing for these memory modules, according to CPU-Z.

- Corsair XMS TwinX 1024-3200XL

- Apacer Real500

Here's a rundown of our testbed:

System Specifications
CPU: AMD Athlon 64 3500+ CPU (Newcastle)
Case: Antec

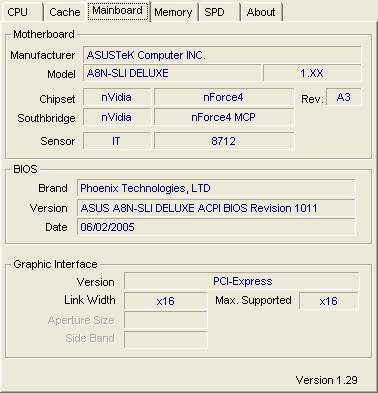

Motherboard: ASUS A8N-SLI Deluxe
Power supply: CoolerMaster 450W
Memory: Kingmax SuperRAM DDR-400 PC3200 (2x512MB)
VGA: ASUS 6800GT PCI-E
Hard Disk Drive: WD800JD 80GB 7200RPM
OS: Windows XP Pro SP2
Drivers: 7.7.7.7
DirectX: v9.0c

Benchmarks & Applications used

• Memtest86+-1.60
• Sisoft Sandra 2005
• PcMark05
• Performance Test V5.0 ( PassMark)
• Half Life 2 - VST
• CPU-Z v1.29
