LiteON's latest internal DVD/CD ReWriter is the iHAS422 drive. Supporting all CD and DVD media formats currently available, and also able to burn DVD±R discs at the super fast speed of 22X, LiteOn engineers surely aim for the top with this one. Writing speeds for other types of media are set as follows: 8X for DVD±R DL, 8X for DVD+RW, 6X for DVD-RW, 12X for DVD-RAM, 48X for CD-R and 32X for CD-RW. The connection to the computer is made via a S-ATA interface, thus allowing Burst Transfer Rates of up to 1.5Gbps.
The drive's key features include SmartErase, a technology able to completely and permanently erase data from a disc leaving no chances of recovering it, SmartWrite, a technology that enables the drive to automatically detect and select the optimal writing strategy in DVD±R recordable media and provide best burning quality, Smart X, a technology for optimum CD-DA/VCD/DVD data extraction speed and LightScribe, for direct disc labeling.
- Drive Features & Specifications
DVD Family | Write | |
DVD+R | 22X maximum by CAV | |
DVD-R | 22X maximum by CAV | |
DVD+R9 | 8X maximum by Zone CLV | |
DVD-R9 | 8X maximum by Zone CLV | |
DVD-RAM | 12X maximum by PCAV | |
ReWrite | ||
DVD+RW | 8X by Z-CLV | |
DVD-RW | 6X CLV | |
Read | 16X maximum by CAV | |
Access time | 160ms | |
CD Family | Write | |
CD-R | 48X by CAV | |
ReWrite | ||
CD-RW | 32X maximum by Z-CLV in UltraSpeed disc | |
Read | 48X(7200KB/sec) maximum by CAV | |
Access time | 140ms | |
PC Required | Pentium 4 1.3GHz or higher CPU and 128MB or higher RAM are required. | |
HDD must have access time < 20ms; with a minimum of 650MB free space. |
||
9GB free space for creating a DVD image file (9GB for double layer; 5GB for single layer). | ||
Compatibility | Microsoft Windows 2000 / XP / Vista |
|
MTBF (Life) | 70000 POH | |
S/N Ration | > 75dB | |
General | Environment | |
Operating | 5C° to 50C°; Relative Humidity: 15% to 80% | |
Non-Operating | -40C° to 65C°; Relative Humidity: 15% to 95% | |
Dimension | 145(W) x 41.3(H) x 170(D) mm | |
Weight | < 0.7Kg | |
Voltage Requirements | ||
+5V +/-5% and less than 100 mVp-p ripple voltage | ||
+12V +/-10% and less than 200 mVp-p ripple voltage |

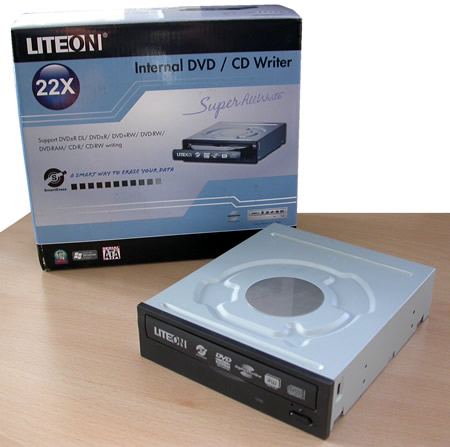

-The Retail Box

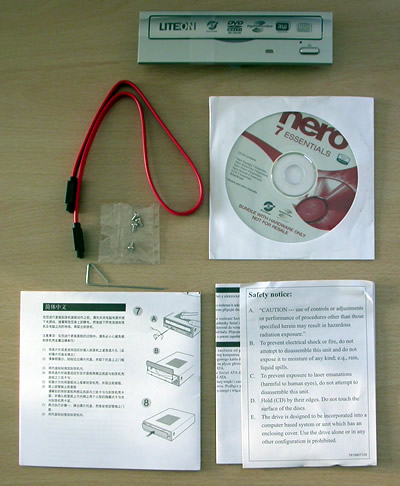

The Package contains the following items:
- Internal 22X DVD±R/ ±RW Drive
- Application Software kits disc
- Mounting screws
- Quick Installation Guide
- Extra Bezel
- SATA data cable

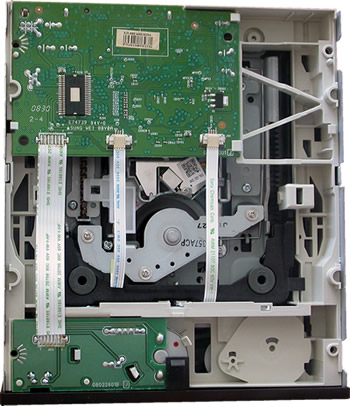

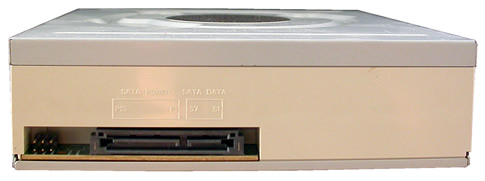

-The Drive
Our test sample was manufactured on September 2008 in China.

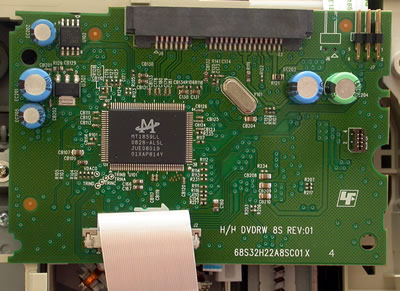

The drive's electronics are based on the MediaTek MT1859LL chip.
- Installation
The drive was identified under Windows XP as "ATAPI iHAS422 8", firmware version 4L11.
Nero Info Tool 5

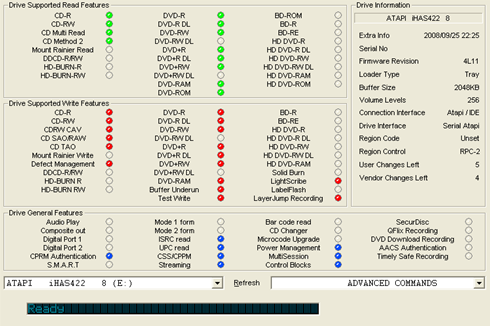

DVD Info Pro
