New Fusion-io Atomic Series Promises High Performance and Optimized Efficiency
Fusion-io today announced Atomic Series, the newest flash memory platform for appliance and server environments. The Atomic Series is based on the third generation Fusion-io memory-based architecture and promises to deliver much higher performance than typical SSDs in a fraction of the space.
These new products have large capacities of up to 6.4TB in a single device, versus 3.2TB on the previous generation.
In adition, Fusion-io has worked with vendors of database, virtualization, big-data and virtual desktop software to make the new ioMemory products further accelerate those applications.

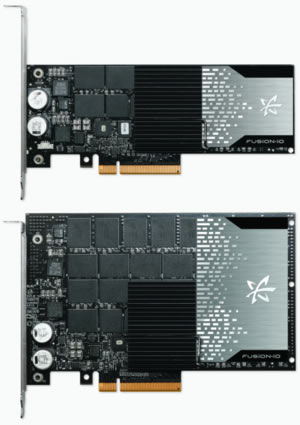

The new ioMemory cards bring data directly into servers through high-speed PCIe connections to the motherboard. The company's engineers have designed those cards to act like memory, not storage. Their flash controller and software, developed in house, handle the solid-state media in ways that reduce latency and help accelerate applications.
Fuson-io offers its customers two choices, at least for now: the ioMemory PX600 and the ioMemory SX600. Both PX and SX models are based on MLC (Multi Level Cell) NAND, feature PCI-Express 2.0 x8 interfaces and are backed by 3 and 5 years of warranty, respectively.
They are available now, with prices set by Fusion-io's resellers and server partners, including Cisco, Dell, Hewlett-Packard, IBM and SuperMicro.
Below you see the details:
ioMemory SX300 Atomic Series |
ioMemory PX600 Atomic Series |
|||||||
---|---|---|---|---|---|---|---|---|
Model Number | 1300 |
1600 |
3200 |
6400 |
1000 |
1300 |
2600 |
5200 |
Usable Capacity | 1,250 GB |
1,600 GB |
3,200 GB |
6,400 GB |
1,000 GB |
1,300 GB |
2,600 GB |
5,200 GB |
NAND Type | MLC (Multi Level Cell) |
|||||||
Read Bandwidth (GB/s) | 2.6 |
2.7 |
||||||
Write Bandwidth (GB/s) | 1.1 |
1.1 |
1.2 |
1.5 |
1.7 |
2.2 |
2.1 |
|
Ran. Read IOPS (4k) | 195,000 |
195,000 |
215,000 |
180,000 |
196,000 |
235,000 |
330,000 |
276,000 |
Ran. Write IOPS (4k) | 285,000 |
300,000 |
285,000 |
320,000 |
370,000 |
375,000 |
||
Read Access Latency | 92µs |
|||||||
Write Access Latency | 15µs |
|||||||
Bus Interface | PCI-Express 2.0 x8 |
|||||||
Endurance (PBW) | 4 |
5.5 |
11 |
22 |
12 |
16 |
32 |
64 |
Form Factor | Low Profile |
Standard Height, Half-Length |
Low Profile |
Standard Height, Half-Length |
||||
Warranty | 3 years or maximum endurance used |
5 years or maximum endurance used |
||||||
Operating Systems | Windows Server 2012 R2, Windows Server 2012, Windows 2008 R2 SP1 |
|||||||
RHEL 5/6; SLES 11; OEL 5/6; CentOS 5/6; Debian Squeeze; Ubuntu 12/13 |
||||||||
Solaris 11.1/11 x64; Solaris 10 U11 x64 |
||||||||
VMware ESXi 5.0/5.1/5.5, Windows Server 2012 with Hyper-V, Windows Server 2012 R2 with Hyper-V |
Environmental Specifications
Min | Max | ||
Temperature | Operational | 0?C | 55?C |
Non-operational | -40?C | 70?C | |
Power Requirements | 21 W | ||
Air Flow (LFM) | 300 | ||
Humidity (%) | Non-condensing | 5 | 95 |
Altitude (ft) | Operational | -1,000 | 10,000 |
Non-operational | -1,000 | 30,000 |
