Pioneer DVD±RW DVR-107D - Page 13
KProbe PI/PO quality results

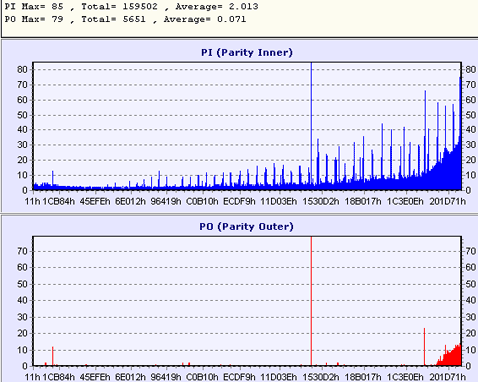

The following screenshots show the PI/PO scans for the various DVD-/+R and DVD-/+RW media, recorded with Pioneer DVR-107D at the maximum permitted speed.
The software used for the measurements was the KProbe v1.1.26, the ECC ws set to 8 and the reader was LiteOn LDW-811s. The specific methodology is very dependent on the drive used as a reader, while the reliability of the PI/PO provided output is also not technically confirmed. Hence as a result, we cannot safely come up with conclusive results, although we do make a comparison of the drive's behaviour when using various DVD recordable/rewritable media.
The discs used came from JVC, Verbatim, TDK, MAM, Ritek, CMC, Mitsubishi Chemicals, Taiyo Yuden and Philips. Further details about each disc type are presented at the bottom of this page.
-

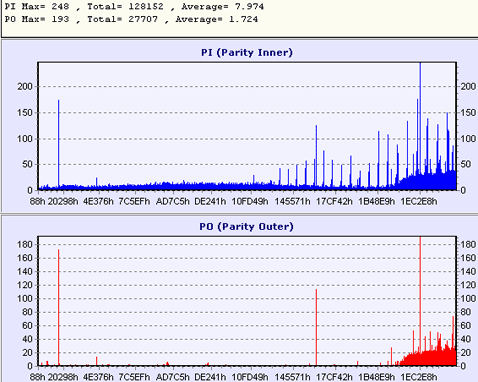

JVC 8x DVD-R (Recorded at 8x)
-

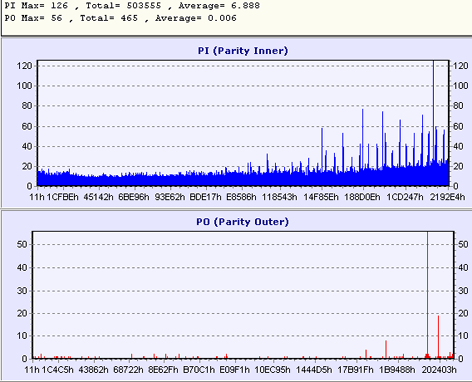

VERBATIM 4x DVD-R (Recorded at 4x)
-
TDK 4x DVD-R (Recorded at 4x)
-
MAM 4x DVD-R (Recorded at 4x)
-
RITEK 4x DVD-R (Recorded at 4x)
-
CMC 4x DVD-R (Recorded at 4x)
-
TY 4x DVD+R (Recorded at 4x)
-
CMC 8x DVD+R ( Recorded at 4x)
-
MITSUBISHI KAKAGU 8x DVD+R (Recorded at 8x)
-
PHILIPS 4x DVD+RW (Recorded at 4x)
-
JVC 4x DVD-RW (Recorded at 4x)
Media
|
Code
|
JVC 8X DVD-R
|
TTG02
|
VERBATIM 4X DVD-R
|
MCC01RG20
|
CMC 4X DVD-R
|
CMCMAG.AF1
|
TDK 4X DVD-R
|
TTG01
|
MAM 4X DVD-R
|
MCI4XG01
|
RITEK 4X DVD-R
|
RITEKG04
|
MITSUBISHI KAGAKU 8X DVD+R
|
MCC003
|
TY 4X DVD+R
|
TY T01
|
CMC MAGENTICS 8x DVD+R
|
CMCMAG EO1
|
PHILIPS DVD+RW 4X
|
PHILIPS 041
|
JVC DVD-RW 4X
|
JVC0VictorD7
|
