SONY DRU-530A DVD±RW recorder - Page 13

PI/PO quality results

The following screenshots show the PI/PO results for various DVD-/+R and DVD-/+RW media, recorded with the SONY DRU-530A at the maximum allowable speed.

The software used for the measurements was KProbe v1.1.28, the ECC was set to 8 and the reading drive was the LiteOn LDW-811s. The specific methodology is very dependent on the drive used as a reader, while the reliability of the PI/PO provided output is also not technically confirmed. Hence as a result, we cannot safely come up with conclusive results, although we do make a comparison of the drive's behavior when using various DVD recordable/rewritable media.

The recording discs used came from Mitsubishi Chemicals, CMC Magnetics, Taiyo Yuden, N-Tech, Pioneer, Sentinel, TDK and Ritek. Further details about each disc type are presented at the bottom of this page.

• Mitshubishi Chemicals 8x DVD+R

• CMC Magnetics 8x DVD+R

• Taiyo Yuden 4x DVD+R

• Mitshubishi Chemicals 4x DVD+R

• N-Tech 4x DVD+R

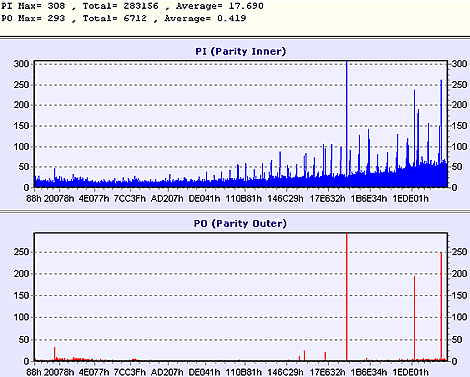

• TDK 4x DVD-R

• Ritek 4x DVD-R

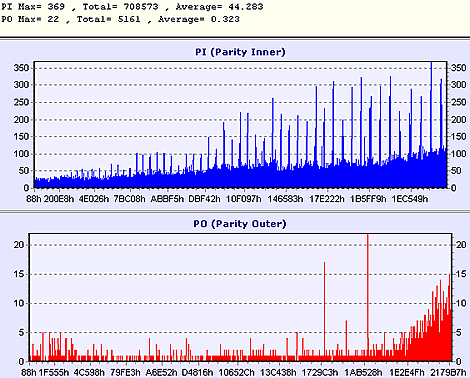

• Mitshubishi Chemicals 4x DVD-R

• Mitshubishi Chemicals 4x DVD+RW

• Sentinel 2.4x DVD+RW

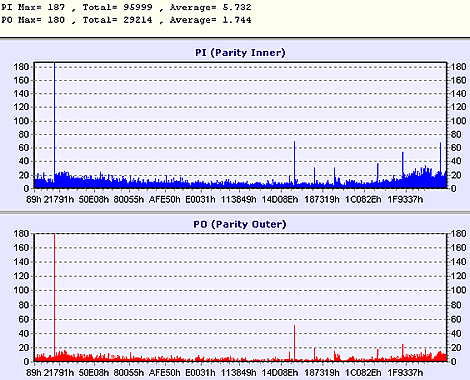

• Pioneer 2x DVD-RW

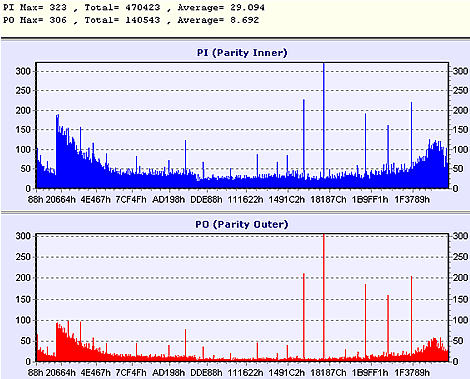

• TDK 2x DVD-RW
