Protected Disc Tests

- Reading Tests

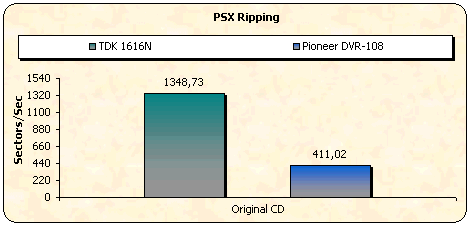

To create the image of the various protected titles to the hard disk, we used Alcohol 120% software and the appropriate settings, according to the protection type of the inserted discs. Below you can see the duration of each process as well as the transfer rate in each case.

The TDK 1616N was very fast with Lybcrypt protected discs. During SecuROM v2 ripping, the drive was slightly faster than the Pioneer DVR-108 drive. On the other hand, the Pioneer drive was faster with SecuROM v2 protected discs. However, all discs were read successfully, regardless of the ripping speed.

- Writing Tests

The TDK 1616N supports the DAO-RAW writing mode. For checking the drive's EFM correction status, we used 5 different game titles with different SafeDisc 2 versions having the latest software patches installed. After making the images of the various titles onto the hard disk, we burned them (maximum speed) with Alcohol 120% v1.9.2.1705. Two different discs were created for each title; one with the "Bypass EFM error" enabled and one more with the function disabled.

• Fifa 2004 - Safe Disc v3.1x
• The Sims Superstar - Safe Disc v2.9x
• The Sims Unleashed - Safe Disc v2.8x
• Serious Sam Second Encounter - Safe Disc v2.51.021
• Max Payne - Safe Disc v2.51.020

The table below shows the results of the attempted backups and whether they worked (game installed / played normally), or not.

The TDK 1616N cannot produce working backups with the newest v2.8x, v2.9x and v3.1x builds. Partially working backups were produced for SafeDisc v2.51.051 & v2.51.020. It is noted that this behaviour is common to all NEC chipset based drives.
