TEAC CD-W548E IDE CD-RW - Page 7

Writing Quality Tests

We used various media and burn them at the maximum allowed writing speed. The writing quality scores are in the following table:

Brand
Maximum Writing Allowed speed
C1 Errors
Average Burning Time (mins)
Comments
Max
Average
CMC Magnetics
80min 48X
48X
26
1.1
2:32
Prodisc 80min 48X
48X
37
1.3
2:32
Postech 80min 48X
48X
72
12.9
2:33
Mitsubishi Chemicals
80min 48X
40X
17
0.6
2:40
Allows 48X but the recording is performed at 40X!!
TEAC 80min 48X
40X
19
0.6
2:41
That is the included retail package media, but drive allows only 40X not 48X
Imation 80min 48X
48X
35
2.8
2:32
TDK D-VIEW
80min 24X
48X
36
1.7
2:34
Plextor 80min 48X
48X
12
0.8
2:34
ASUS 80min 48X
48X
19
1.2
2:33
RITEK 80min 48X
48X
44
1.2
2:33

The TEAC CD-W548E showed a very good writing quality. The drive's writing policy is rather strict with the inserted media, but it produced very good results. The lowest C1 error rate at the maximum speed came with Plextor 80min 48X media, while the absolute recording times came with CMC Mangetics based media. The only problem was noticed with Postech 80min 48X media, where a 12.9 average C1 error rate was reported. The drive will not allow 48X writing on Mitsui and Mitsubishi Chemicals based media.

The following media was allowed burning only at 16X

  • CibaPlasmon 80min 48X
  • FUJI 80min 40X
  • SKC 80min 48X

- C1/C2 Error rate from ASUS 80min 48X @ 48X

- C1/C2 Error rate from CMC Magnetics 80min 48X @ 48X

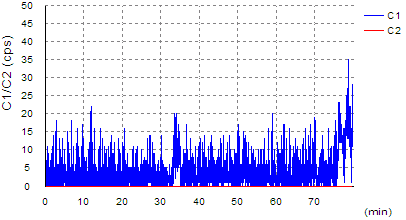

- C1/C2 Error rate from Imation 80min 48X @ 48X

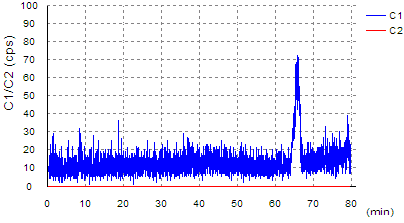

- C1/C2 Error rate from Postech 80min 48X @ 48X

- C1/C2 Error rate from Prodisc 80min 40X @ 48X

- C1/C2 Error rate from Plextor 80min 48X @ 48X

In the following table you can see the manufacturing details of the media we used for our tests.

Name
Real Manufacturer
ID Code
Capacity
Mitsubishi Chemicals 80min 48x
Mitsubishi Chemicals
97m34s23f
79:59.73
Intenso 80min 40x
Prodisc
97m32s19f
79:59.74
Mitsui 80min 40X
Mitsui
97m27s58f
79:59.74
Taiyo Yuden 80min 32X
Taiyo Yuden
97m24s01f
79:59.73
Ciba Plasmon 80min 48X
Plasmon
97m27s18f
79:59.74
Imation 80min 32X
CMC Mangetics
97m26s66f
79:59:74
RITEK 80min 48X
RITEK
97m15s17f
79:59:70
ASUS 80min 52X
ACER
97m22s67f
79:59:74
CMC Magnetics 80min 48X
CMC Mangetics
97m26s66f
79:59:71
TDK D-VIEW 80min 24X
RITEK
97m15s17f
79:59:73
That's 80min 48X
Taiyo Yuden
97m24s01f
79:59.72
Hitachi Maxell 80min 40X
Hitachi-Maxell
97m25s29f
79:59:74
Fuji 80min 40X
Fuji Photo Film
97m26s45f
79:59:73

- Compatibility with WSES software

The drive can work with the WSES software.

Unfortunately the drive does not work either with the C1/C2 measurement test or the Read C1/C2 error count
