Toshiba MK1032GAX
1. Introduction
Review Pages
Toshiba
is a giant global manufacturer with a large product line and several divisions.
One of its divisions, the Storage Device Division, recently released the MK1032GAX
hard disc drive, a 2.5-inch HDD with 100GB capacity hard disk. According to
Toshiba, the MK1032GAX offers the industry's highest areal density per platter,
at 83.2 gigabits per square inch while the drive's 5400 RPM motor speed, improves
system-level performance by as much as 12 percent when compared to 4200 RPM.

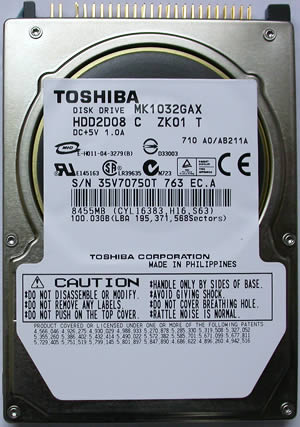

We received the MK1032GAX hard disk drive from Toshiba, shown below.
Features:
- 100GB capacity
- Rotational Speed of 5,400rpm
- Fluid Dynamic Bearing (FDB) motor drive
- 9.5mm High
-
12ms Average Seek Time
- ATA-6 Interface
- 100MB/sec Transfer Rate
- 16MB Buffer
-
300,000 MTTF Hours
Specifications:
| TOSHIBA MK 1032GAX 2.5" HDD 100GB | |
| Data Storage Physical: | |
| Per drive, formatted | 100.030GB |
| Data Heads | 4 |
| Number of Disks | 2 |
| Logical Configuration: | |
| Heads | 16 |
| Cylinders | 16,383 |
| User Sectors/Track at zone 0 | 63 |
| Logical Blocks (LBA) | 195,371,568 |
| Data Transfer Rate: | |
| Max transfer rate to host | 100MB/sec |
| Seek Time: | |
| Track-to-track | 2ms |
| Average | 12ms |
| Maximum | 22ms |
| Nominal Power Requirements: | |
| Logic | +5V(+/-5%) |
| Start | 4.5watts (max) |
| Seeking | 2.4watts (typ) |
| Reading/Writing | 2.0watts (typ) |
| Idle | 0.85watts (typ) |
| Standby | 0.18watts (typ) |
| Sleep | 0.1watts (typ) |
| Other: | |
| Rotational Speed | 5,400rpm |
| Average Latency | 5.55ms |
| Interface | ATA-2/3/4/5/6 |
| Buffer | 16MB |
| Dimensions/Weight: | |
| Height | 0.37" (9.5mm) |
| Width | 2.75" (69.85mm) |
| Depth | 3.94" (100mm) |
| Weight | 3.56 oz (101g) |
| Ambient Temperature: | |
| Operating | 41o - 131oF (5o to 55oC) |
| Non-Operating | -4o - 140oF (-20o to 60oC) |
| Shipping | -40o - 158oF (-40o to 70oC) |
| Vibration and Shock: | |
| Operating Vibration | 9.8 m/s2 (1.0G), 5 - 500 Hz |
| Operating Shock | 325g |
| Non-Operating Shock | 850g |
| Other: | |
| Preventive Maintenance | None |
| MTTF (Power on hours) | 5 years or 20,000 power ON hours |
| Product Life | 5 years or 20,000 power ON hours |
In order to investigate the difference between a 5400rpm HDD with 16MB buffer and a 4200rpm HDD with 8MB buffer, we compared the Toshiba MK1032GAX with the Fujitsu MHT2080AT. We chose to use the Fujitsu drive in this comparison due to the fact that most notebooks have a drive similar to the Fujitsu HDD.
