In the following tests, we examine the DVD reading capabilities of the AOpen DUW1608/ARR drive with scratched / defective DVD media. For the tests we used CDVD Benchmark and Nero CDSpeed. The reference test media comes from ALMEDIO. - Single Layer media

ABEX TDR-821

This is a single sided, single layer DVD-ROM with 4.7GB capacity, and its surface has an artificial scratch of dimensions varying from 0.4 to 3.0 mm. The following transfer rate picture comes from the CDVD Benchmark v1.21 transfer rate test.

The AOpen DUW1608/ARR managed to read this test disc without errors, without reducing speed to overcome the disc defects. Very good performance.

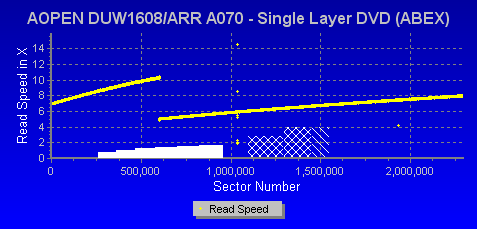

ABEX TDR-825

This is also a single sided, single layer DVD-ROM of 4.7GB capacity. The data structure of the disc is exactly the same as that of the TDR-821, with the difference that there are no scratches on it but instead, defective areas of dimensions ranging from 0.5 to 1.1 mm. There are also fingerprints sized between 65 and 75 micrometers.

Similar behavior as with the 821 test disc. The disc was read without errors, the DUW1608 reduced its speed and kept gradually increasing it while in the problematic areas.

- Dual Layer media

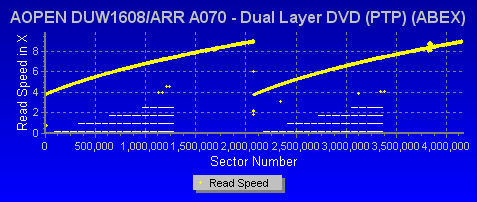

ABEX TDR-841

This is an 8.5GB dual layer, single sided DVD-ROM disc with artificial scratches of dimensions ranging from 0.4 to 3.0mm, on both layers.

Excellent performance with this test disc. The smooth graph is indicative of the high error correction capabilities of the drive.

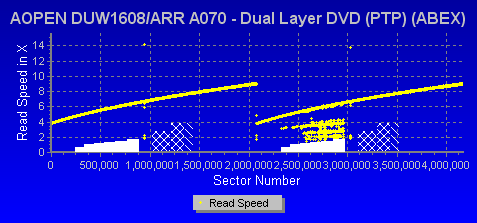

ABEX TDR-845

This test disc is a single sided, dual layer DVD-ROM disc with a capacity of 8.5GB. The only difference between the TDR-845 and the TDR-841 discs is that the first includes defective areas and fingerprints. The dimensions of the defective areas ranges from 0.5 to 1.1 mm and the fingerprints are sized from 65 to 75 micrometers.

One more time the transfer rate graph was good. No errors reported. However over the defeacted area the drive slow down several times.

ABEX TDV-541

The TDV-541 is a single sided, dual layer DVD-VIDEO disc, with a capacity of 8.5GB. The disc is based on the TDV-540 series which is designed for inspection and adjustment of DVD-VIDEO players. The disc checks the layer switch operation from layer 0 to layer 1 and also includes test pictures and test signals for DVD sound files. The current TDV-541 also checks the error correcting capabilities of the drive and includes scratches from 0.4 to 3.0 mm.

In most cases, this type of disc is a "headache" for DVD burners, but with AOpen DUW1608/ARR, there were no errors reported reading this disc, although the graph was not that smooth during reading the second layer..

ABEX TDV-545

The TDV-545 disc is based on the TDV-540 series. It is a single sided, dual layer DVD-VIDEO disc with a capacity of 8.5GB. The TDV-545 includes artificial black dots on the data surface, sized from 0.4 to 1.0 mm. It also has 65 - 75 micrometer fingerprints.

- Conclusion

All the graphs above indicate that the AOpen DUW1608/ARR has good DVD error correction capabilities.
