be quiet Pure Power 12 750W
2. Retail Package

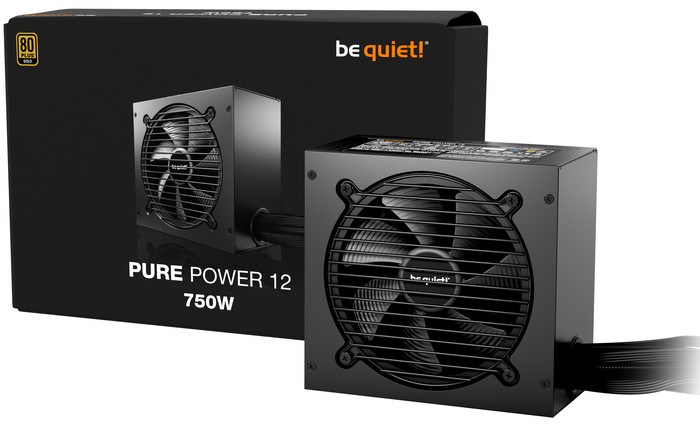

Users can expect to buy the product for around €104.90 (including VAT) according to the be quiet! Press release. The Pure Power 12 750Watt is an entry-level power supply product, with pricing in mind but also good performance. The retail package is according to what be quiet! has been used in the past and now all Pure Power 12 series include ten (10) years of warranty.
Everything is well packaged, there are two printed manuals and the main PSU is protected via a carton box, while on the right side, you will find all accessories/cables.

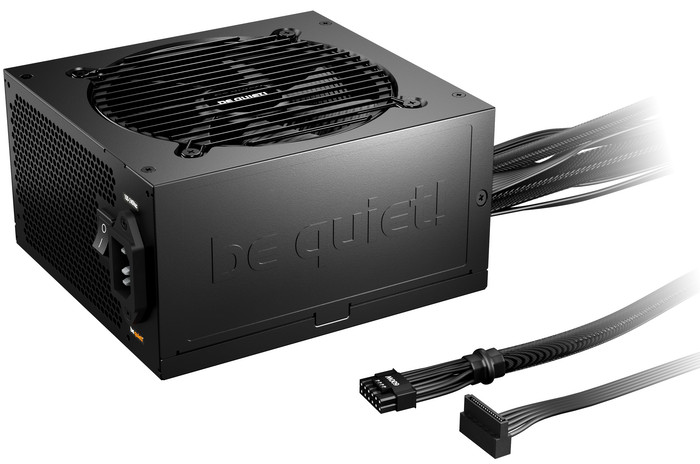

The PSU has the typical ATX power supply dimensions (160 x 86 x 150) and weighs 2.6kg., meaning it will fit in most cases. All cables are fixed, meaning you cannot remove them.

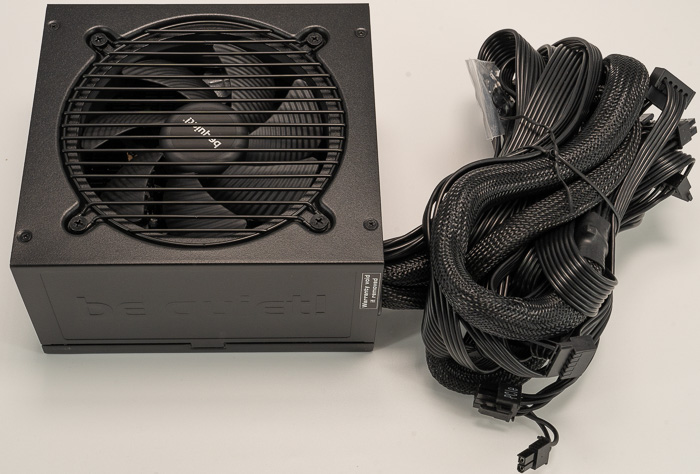

At the top, there is a big 120mm fan with low noise levels. be quiet! says that the fan is thermally governed to strike the best balance between effective cooling and quietness. Airflow-optimized fan blades reduce turbulence, enabling best-in-class quiet functionality and almost inaudible operation.

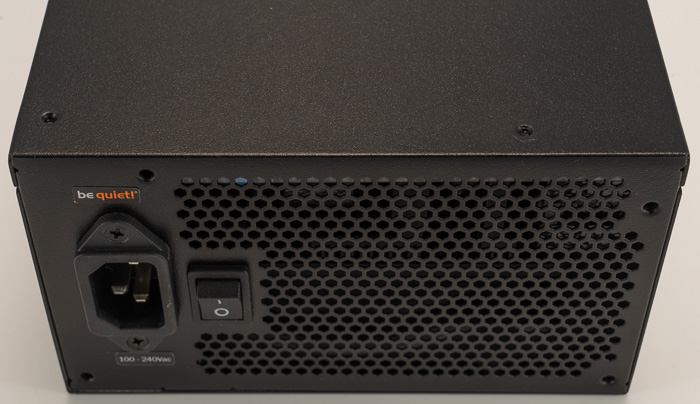

The power supply has a matte black finish like most of the tested power supplies we have recently seen at our labs. All the edges are not sharp, so you can handle it without any worries. The rear has a honeycomb design, that helps lower the PSU's internal temperature since drives the produced hot air out of the case.

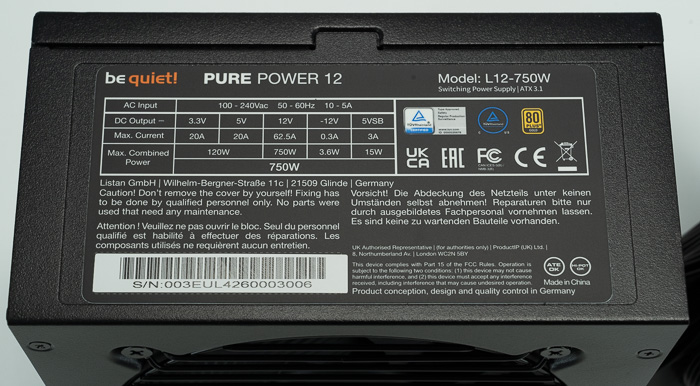

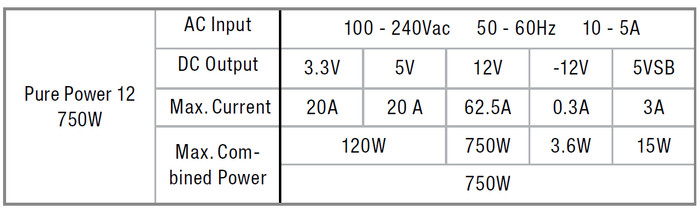

At the back, we can find the power ratings of the product. The power supply has one (strong) +12V rail producing 62.5A and. The +5V boosts 20A, while the +3.3V rail 20A. Lastly, the +5VSB gives another 3A. While the product has a single +12V rail, it should hold just fine with general use.
The be quiet! PurePower 12 750watt has many connectors to get devices powered up.

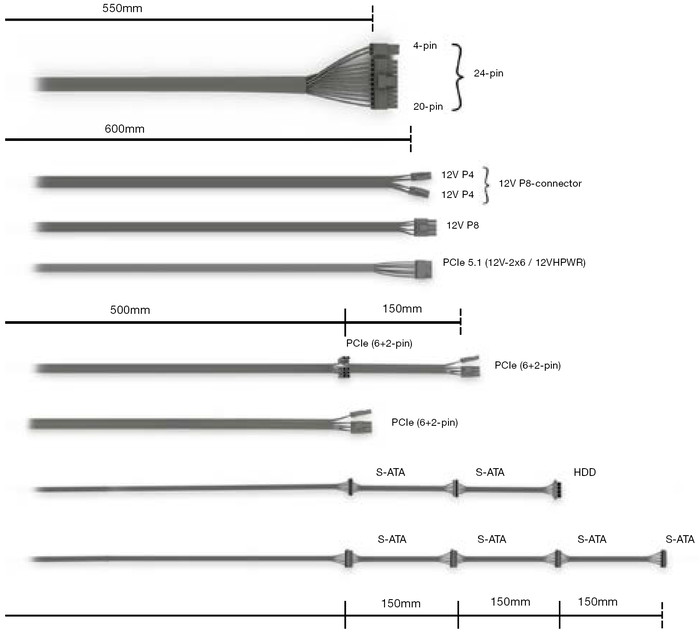

There are both sleeved and flat cables included with a max cable length of 55cm, while the main ATX24V cable is 60cm long.
No. of cables | 8 |
ATX-Motherboard (20+4-pin) | 1 |
P4+4 (CPU) | P4+4 (CPU) |
P8 (CPU) | 1 |
12VHPWR cables | 1 |
PCI-e 6+2-pin (GPU) | 3 |
SATA | 6 |
PATA | 1 |
