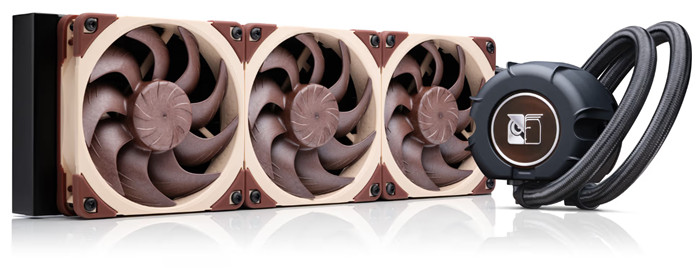

For our review we received the NL-LC1-36 mode, that combines a 360mm radiator with three Noctua NF-A12x25 G2 120mm fans for best performance-to-noise efficiency. Working in tandem with the pump noise absorber, the NF-A12x25 G2 fans promise of delivering first-rate thermals while running extremely quiet. To ensure a smooth, unobtrusive sound signature, the fans utilise a speed-offset to avoid undesirable harmonics phenomena such as periodic humming or vibration build-up due to beat frequencies.

While the NL-PNA1 pump noise absorber comes with a magnetically attaching metal faceplate, users who require extra ventilation for VRMs, RAM modules, M.2 SSDs or other near-socket components have the option of replacing it with the NL-ACF1 auxiliary cooling fan that is available separately (USD 19.90). Noctua’s proven SecuFirm2+ mounting system not only enables easy installation, broad socket support and future upgradability, but also helps to improve thermal performance through optimised force transfer and offset mounting options.

The Noctua NL-LC1-36 can be found online at various Amazon stores and retails around EUR 249.90 / USD 249.90 making it rather expensive AIO watter cooler for entry level users. Full product specifications can be found at this page.

The product supports almost many Intel and AMD sockets like AM5, AM4, LGA1700, LGA1851, LGA1954, while the NL-LC1 series can be made compatible with the older LGA1200/115x or even LGA1366 and LGA775 sockets using optional mounting kits, which are provided free of charge through Noctua’s customer support. If technically possible, Noctua will also provide upgrade kits for future sockets, which makes the NL-LC1 coolers a safe long-term investment. Before buying this cooler its best to visit the compatibility list for the best possible updated information. If your case supports 360mm radiators, when the NL-LC1-36 would fit.

True to brand tradition, the product arrives in a sturdy, brown, information-rich retail box packed with diagrams, technical specs, and charts. Inside, thick cardboard inserts separate and secure the components to ensure maximum protection during transit. Noctua organizes the installation hardware into separate, clearly labeled bags for Intel and AMD. What immediately stands out is the absence of current AIO market trends. There is:

• No RGB lighting
• No LCD screen
• No USB cable
• No software suite
• No RGB controller

Instead, every design decision appears focused on mechanical and acoustic performance. Opening the box unveils the contents well organized and protected and Noctua continues its tradition of providing one of the most complete accessory bundles in the industry.

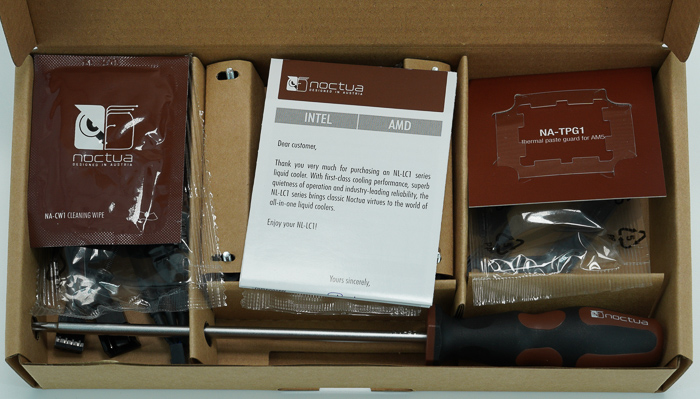

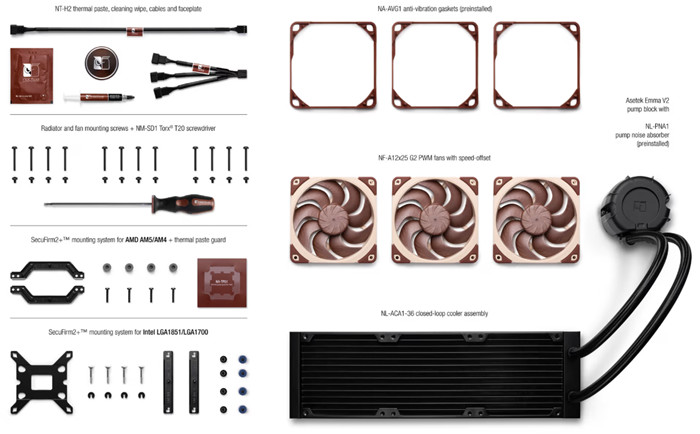

Users will get inside the retail box:

• The closed-loop liquid cooler itself with the NL-PNA1 pump noise absorber pre-installed
• A metal Noctua logo faceplate (magnetic attachment)

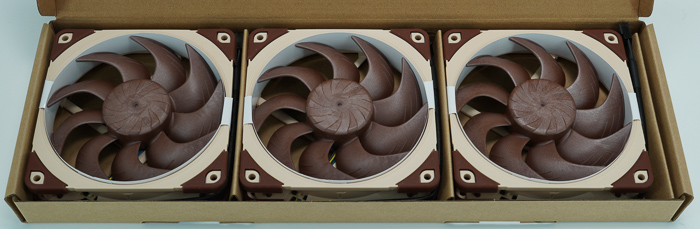

• Three NF-A12x25 G2 PWM fans with factory speed-offset (PPA/PPB/PPA), plus 3x NA-AVG1 anti-vibration gaskets pre-installed on them
• An NA-SC1 3-way fan splitter cable and an NA-EC1 30cm extension cable
• Fan and radiator mounting screws (Torx T20)
• The full SecuFirm2+ multi-socket mounting system, with offset options for AMD AM5/AM4 and Intel LGA1851/1700
• An NM-SD1 Torx T20 screwdriver
• NT-H2 thermal compound and an NA-CW1 cleaning wipe
• An NA-TPG1 thermal paste guard specifically for AMD AM5
• A Noctua metal case badge

The accessory package is easily among the best currently available with any AIO cooler and reflects Noctua's attention to long-term ownership.

SecuFirm2+ mounting carries over Noctua's air-cooler philosophy, and Noctua has published data on exactly how much it helps. Using steel mounting bars and backplates rather than the plastic parts common on rival Emma V2-based coolers, SecuFirm2+ improves force transfer and contact pressure — worth roughly 1°C on both AMD and Intel platforms with the pump's tubes oriented south (the recommended orientation), and more than 5°C on AMD specifically when the tubes face east instead (Intel saw only a marginal gain in that orientation). The hotspot-offset mounting bars add a further, separate benefit: Noctua measured 2–4°C lower temperatures on an Intel Core i7 270K Plus and 1–1.5°C lower on an AMD Ryzen 9 9950X3D2 when using the offset position versus the standard, centred one.

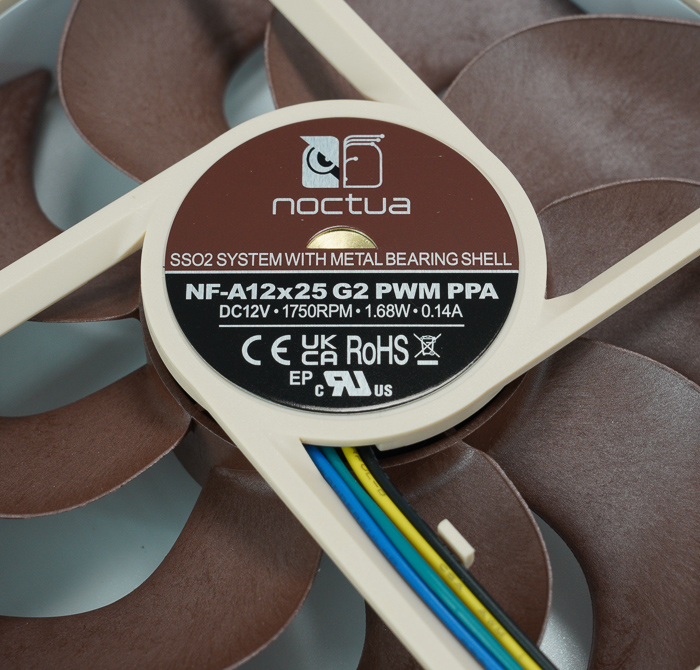

NF-A12x25 G2 fans, Noctua's flagship 120mm model, are speed-offset by design: the centre fan (labelled PPB) runs about 50 RPM faster than the two outer fans (labelled PPA), specifically to avoid the humming and vibration build-up that identical fans spinning in perfect sync can produce.

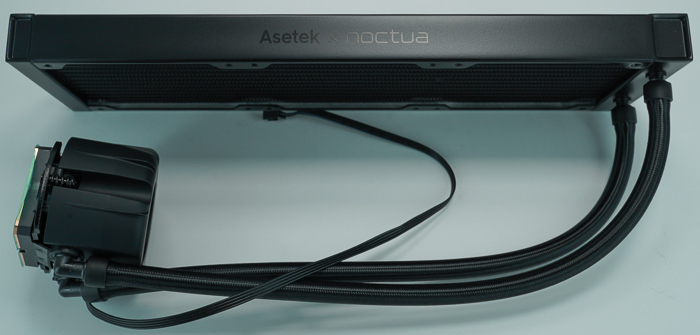

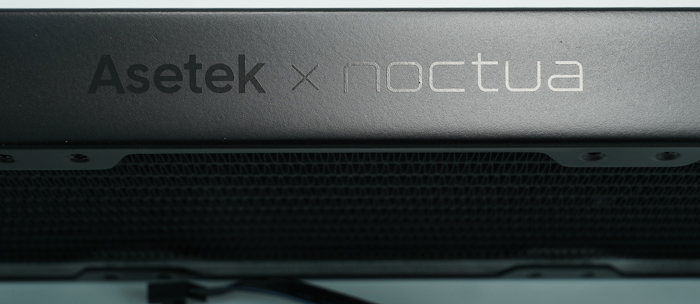

The cooling loop is built around a premium aluminum radiator measuring 400 × 120 × 30 mm. At 30 mm thick, it is slightly larger than the 27 mm radiators commonly found in mainstream AIO coolers, providing additional surface area for improved heat dissipation. Combined with standard 25 mm fans, total installed thickness reaches approximately 55 mm, helping maintain broad compatibility with motherboard heatsinks, memory modules, and top-mounted case installations. At the side there is the Asetek x noctua logo printed.

The radiator features a relatively dense 20 FPI (fins per inch) design but employs completely non-louvered fins. While louvered fin structures can increase heat dissipation under very high airflow conditions, they also create additional airflow resistance. According to Asetek and Noctua, those benefits are largely irrelevant in low-noise cooling systems optimized around moderate fan speeds. By using non-louvered fins, the design reduces airflow impedance, allowing Noctua's NF-A12x25 G2 fans to maintain higher airflow efficiency, lower turbulence, and reduced noise levels while delivering strong cooling performance. The loop is filled with a demineralized water and propylene glycol coolant mixture that is non-toxic in the event of accidental leakage, safe for disposal through normal household wastewater systems, and fully compliant with RoHS and REACH regulations. The coolant is also designed to withstand storage and transportation temperatures ranging from -20°C to +70°C, ensuring long-term reliability under a wide variety of operating conditions.

The cooler uses high-quality braided EPDM (Ethylene Propylene Diene Monomer) tubing, chosen specifically for its exceptionally low coolant permeation rate and outstanding long-term durability. While softer tubing materials can offer greater flexibility, they are often more susceptible to coolant loss over time and may be prone to kinking or deformation. Noctua and Asetek therefore opted for EPDM tubing to ensure long-term reliability and consistent performance throughout the cooler's lifespan. The tubes are protected by a durable nylon braided sleeve and measure 410 mm in length, providing ample reach and routing flexibility for larger enthusiast-class systems while maintaining a clean appearance. The combination of EPDM construction and protective sleeving minimizes coolant permeation, enhances mechanical durability, and supports the stringent reliability targets required for the cooler's six-year manufacturer warranty.

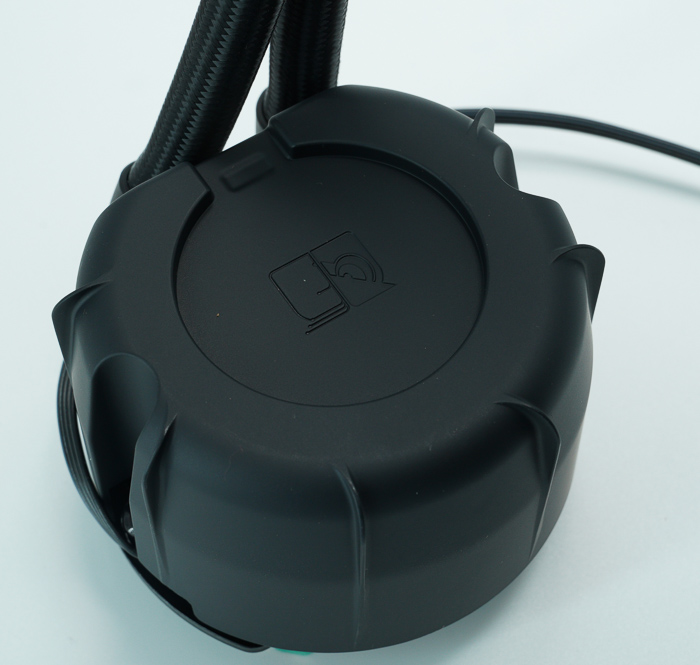

The NL-PNA1 pump noise absorber is the headline feature, and Noctua describes the NL-LC1 series as the first AIO coolers with an integrated pump cover combining acoustic soundproofing with a tuned-mass-damper effect simultaneously. Structurally, it's a three-layer stack: an outer soft acoustic-foam layer that absorbs high-frequency sound right above the pump, a dense mass barrier in the middle that blocks and reflects lower frequencies, and a second acoustic-foam layer that mops up whatever noise gets through the first two. The whole assembly floats on silicone mounts, which do double duty as the "springs" in a tuned-mass-damper system — the dense middle barrier and the outer hard shell act as mass nodes that move opposite to the pump's own vibration, cancelling it out rather than just absorbing it.

In Noctua's own measurements, the NL-PNA1 typically delivers a 1–4dB(A) reduction in sound pressure level compared to a bare pump, and up to 4–6.4dB(A) better than two competing Asetek Emma V2 pump covers with built-in screens (screen covers can actually make noise worse if the screen isn't acoustically decoupled from the pump). Just as important as the raw SPL number is the tonal shift: the NL-PNA1 is particularly effective at damping frequencies above roughly 1400Hz at full pump speed, pushing the pump's overall sound signature toward lower, less irritating frequencies. Psychoacoustic testing (loudness, sharpness, roughness, and overall annoyance) showed consistent improvements across nearly the whole RPM range — the one exception is tonality, which actually scores slightly worse with the NL-PNA1 installed, a side effect of damping the higher frequencies so effectively that the remaining low-frequency tones become comparatively more prominent in the spectrum. Doppler laser vibrometer testing also showed the NL-PNA1 has a smaller effective vibration area and a different vibration mode shape (a "dome" pattern) than competing screen covers, spreading acoustic radiation more broadly rather than concentrating it.

One practical note: the NL-PNA1 can be removed by unscrewing three small Torx T6 screws on the underside of the pump assembly. Noctua doesn't guarantee the same acoustic performance after disassembly and reassembly, since misalignment or incorrect screw torque can reduce damping effectiveness — so this isn't something to fiddle with casually.

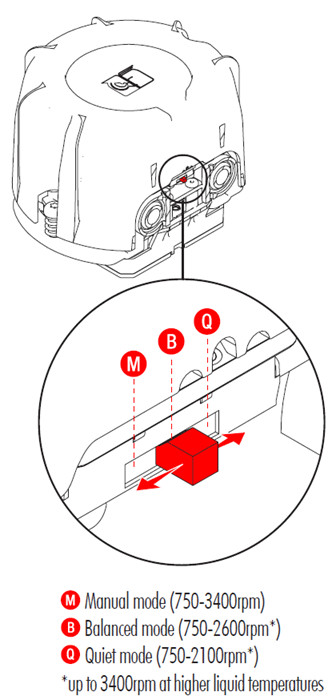

Three pump-speed profiles, selected via a physical switch, and Noctua's documentation spells out precisely how each behaves:

• Quiet mode (factory default): capped at ~2100 RPM under normal conditions.
• Balanced mode: capped at ~2600 RPM up to 30°C liquid temperature, after which the ceiling gradually expands to ~3400 RPM by 45°C.
• Manual mode: the full 750–3400 RPM range is accessible at any liquid temperature, giving enthusiasts a stable, predictable PWM-to-RPM curve.

Underpinning all three is an automatic safety system: below 45°C liquid temperature, the pump's minimum speed floor sits at 750 RPM (at 20% PWM), enabling near-silent idle. Above 45°C, the minimum allowed speed starts climbing regardless of mode, escalating all the way to the pump's ~3400 RPM maximum by 55°C — a safety ramp that overrides whatever PWM signal it's receiving, specifically to protect the cooler from damage. PWM signals below 20% are ignored entirely (the pump won't go below 750 RPM to keep coolant circulating), and a 0% PWM signal is deliberately interpreted as a fault condition, causing the pump to jump to 100% speed rather than risk running too slow on a corrupted signal.

Noctua's own testing found roughly a 5.5dB(A) noise difference between Balanced and Manual mode at their respective full speeds, and another ~6dB(A) drop going from Balanced to Quiet mode. Thermally, the gap between Quiet and Manual mode scales with heat load: negligible at 65–90W, but Noctua measured differences of 2.7°C on a Ryzen 7 9850X3D at 145W, 4°C on a Core Ultra 5 250K Plus at 200W, and a full 6°C on a Core 7 270K Plus at 315W. There's also a built-in self-bleeding routine: every NL-LC1 boosts its pump to ~3400 RPM for about 50 seconds at startup, which helps purge any air bubbles that accumulated during shipping or handling and keeps the loop running smoothly.

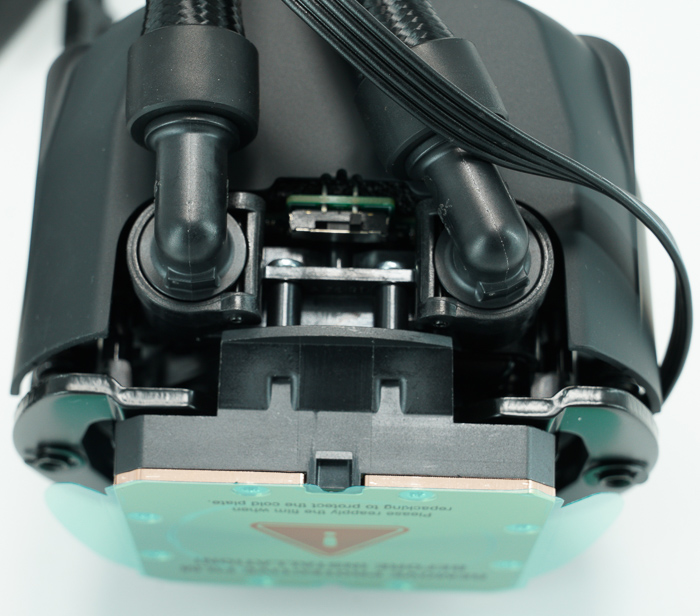

The cooling block features a cold plate machined from 99.95% pure CU1100 copper, a material renowned for its excellent thermal conductivity. At its core is a large 32.5 × 22.5 mm skived copper microfin array that significantly increases the available surface area for heat exchange between the processor and coolant.

Compared to previous Asetek designs, microfin density has been substantially increased to take full advantage of the Emma V2 pump's higher flow rate and pressure capabilities. An optimized coolant injection structure, including a dedicated injection channel, ensures coolant is distributed evenly across the entire fin array, minimizing hotspots and maximizing thermal transfer efficiency.

The cold plate has also been engineered with modern high-core-count CPUs in mind. Its enhanced microfin structure and improved coolant distribution provide more effective cooling of highly localized heat sources, while Noctua's offset mounting options help align the cold plate more effectively with the hotspot regions found on current AMD and Intel processors. The result is improved thermal performance under demanding workloads while maintaining the low-noise characteristics that define the cooler's overall design philosophy.
