Pioneer DVD±RW DVR-107D - Page 10

Writing Quality Tests - 3T Jitter Tests

The same Nero compilation, as in the previous test, was used once again in order to burn media from different manufacturers. The recording speed was the maximum 24x in all cases. The following graphs show the 3T Pit & Land Jitter results.

- 3T Pit results

Except for Imation media which was for the most part above the Redbook limit, all other media had very low pit jitter values

The average 3T Jitter values for all manufacturers discs are illustrated in the following graph.

Notice the difference between Imation and all other brands.The graph shows that Imation is not a good choice for quality writing with Pioneer DVR-107D.

- 3T Land results

Once again all the media brands gave low land values except for Imation media.

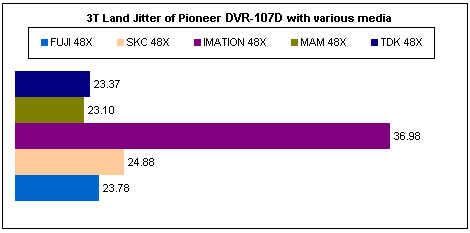

The average values presented below illustrates the drives recording ability.

Once again the difference between Imation media and the other brands is self evident. Other than this, the jitter values are very low.
