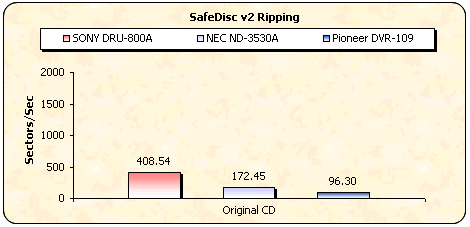

Using Alcohol 120% and three protected discs, with the appropriate settings depending on the protection type of each disc, we measured the duration and transfer rate of the protected media given below.
Game Title | Protection Scheme | Duration | Reading speed |
PSX "NBA Jam Extreme" | Lybcrypt | 3:42 min | 407 sectors/sec |
Serious Sam The Second Encounter | SafeDisc v.2.50.051 | 13:41 min | 408 sectors/sec |
VRally II | SecuROM v.2 | 2:50 min | 2022 sectors/sec |
Only in the case of the SecuROM protected title was the Sony fast. In the two other cases it was very slow even if in case of Safedisc the two other drives were even slower.
- Writing TestsThe Sony DRU-800A supports the DAO-RAW writing mode. For checking the drive's EFM correction status, we used 3 different game titles with different SafeDisc 2 versions having the latest software patches installed. After making the images of the various titles onto the hard disk, we burned them (maximum speed) with Alcohol 120% v1.9.2.1705. Two different discs were created for each title; one with the "Bypass EFM error" enabled and one more with the function disabled.
- Fifa 2004 - Safe Disc v3.1x
- The Sims Superstar - Safe Disc v2.9x
- The Sims Unleashed - Safe Disc v2.8x
- Serious Sam Second Encounter - Safe Disc v2.51.021
- Max Payne - Safe Disc v2.51.020
The table below shows the results of the attempted backups and whether they worked (game installed / played normally), or not.
Drive | Fifa 2004 |
Sims Superstar SD v2.9x |
Sims Unleashed SD v2.8x |
Serious Sam-Second Encounter SD v2.50.051 |
Max Payne SD v2.51.020 |
|||||
EFM OFF | EFM ON | EFM OFF | EFM ON | EFM OFF | EFM ON | EFM OFF | EFM ON | EFM OFF | EFM ON | |
Sony DRU-800A | No | Yes |
The Sony drive managed to create working backups only up to v2.8. The newer versions are a problem for the drive.
