We measured the C1 / C2 error rate on the recorded discs we burned at the maximum supported writing speed of 48X. The software we used is PleXTools Professional v2.23, and more specifically the built-in Q-Check utility. The reader was the Plextor PX-716A (firmware v1.06).
- BenQ 80min 52X @ 48X
- Intenso 80min 52X CD-R @ 48X

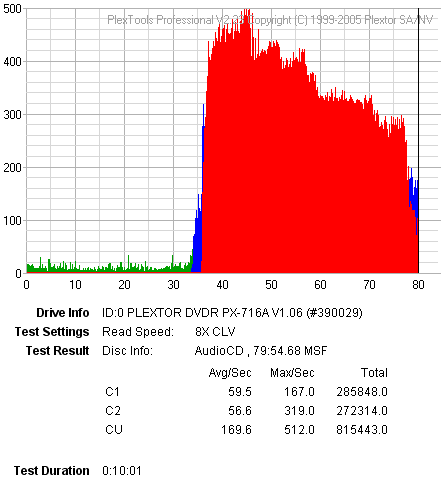

- Ridisc 80min 52X @ 48X
- Traxdata (black dye) 80min 40X @ 40X
- Traxdata 80min 52X @ 48X
- Verbatim 80min 52X @ 40X
- Summary
The CD writing quality, according to Plextools, is very dependent on the inserted media. With BenQ and Ridisc media, the Sony drive needs a lot of improvement. With Traxdata media however, even at 48X, with the current firmware the quality seems to be simply great.
- Appendix
- Media ID codes
Media Label | ID Code | Manufacturer Name | Lead Out TIme |
BenQ 80min 52X | 97m22s67f | Daxon Technology | 79:59.74 |
Intenso 80min 52X | 97m32s19f | Prodisc | 79:59:71 |
Traxdata (black dye) 80min 40X | 97m15s17f | Ritek Co. | 79:59:70 |
Traxdata 80min 52X | 97m15s17f | Ritek Co. | 79:59:70 |
Ridisc 80min 52X | 97m15s17f | Ritek Co. | 79:59:70 |
Verbatim 80min 52X | 97m34s23f | Mitsubishi Chemical Corporation | 79:59:73 |
