TEAC DV-W512G Dual DVD±RW Recorder - Page 10

C1 / C2 Error Measurements

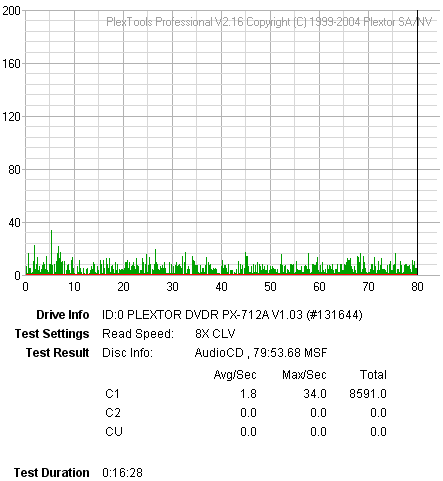

We measured the C1/C2 error rate on the recorded discs we burned at the various supported writing speeds. The software we used is PleXTools Professional v2.16, using the built-in Q-Check utility. The reader was the Plextor PX-712A (firmware v1.04)

BenQ 80min 52X CD-R @ 48X

Maxell 80min 48X @ 48X

SKC 80min 52X @ 48X

TY 80min 52X @ 48X

Verbatim 80min 48X @ 48X

Waitec 80min 52X @ 48X

- Summary

In general the writing quality was very good, however with two media, we notice not only C2 but also CU at the end of the disc. This should be improved with future firmware...

- Appendix

Media ID codes

Media Label	ID Code	Manufacturer Name	Lead Out TIme
BenQ 52X	97m22s67f	Daxon.	79m59s74f
Maxell 48X	97m15s17f	Ritek Co.	79m59s70f
SKC 52X	97m26s26f	SKC Co., Ltd.	79m59s73f
TY 80min 48X	97m24s 1f	Taiyo Yuden	79m59s72f
Verbatim 52X	97m34s23f	Mitsubishi Chemical Corporation	79m59s73f
Waitec 80min 52X	97m28s26f	Multi Media Masters & Machinery SA	79m59s74f
