DVD Error Correction Tests

In the following tests we examined the DVD reading capabilities of the TEAC drive with scratched / defective DVD media. For the tests we used CDVD Benchmark and Nero CDSpeed. The reference test media come from ALMEDIO.

- Single Layer media

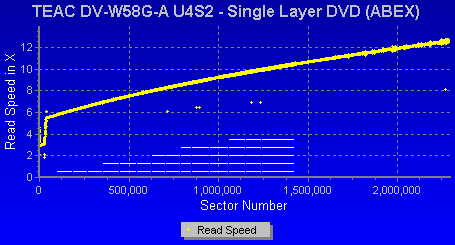

ABEX TDR-821

This is a single sided, single layer DVD-ROM with a 4.7GB capacity, and its surface has an artificial scratch of dimensions varying from 0.4 to 3.0 mm. The following transfer rate picture comes from the CDVD Benchmark v1.21 transfer rate test.

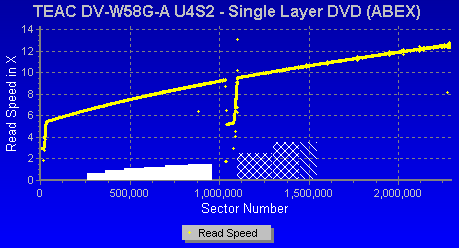

ABEX TDR-825

This is also a single sided, single layer DVD-ROM with 4.7GB capacity. The data structure of the disc is exactly the same as that of the TDR-821, with the difference that there are no scratches on the surface but instead defective areas ranging in dimensions from 0.5 to 1.1 mm. There are also artificial fingerprints with height between 65 and 75 micrometers.

- Dual Layer media

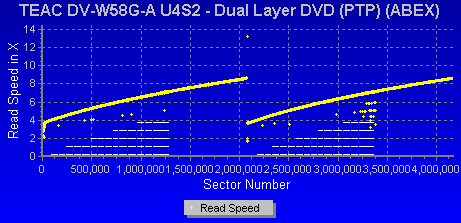

ABEX TDR-841

This is an 8.5GB dual layer, single sided DVD-ROM disc with artificial scratches of dimensions ranging from 0.4 to 3.0mm, on both layers.

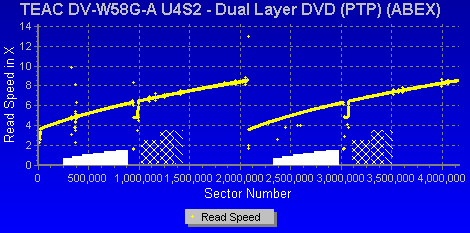

ABEX TDR-845

This disc is a single sided, dual layer DVD-ROM disc with capacity of 8.5GB. The only difference between the TDR-845 and the TDR-841 is that the first includes both defective areas and fingerprints. The dimensions of the defective areas range from 0.5 to 1.1 mm and the fingerprints have height sized from 65 to 75 microns (micrometers).

In the four previous tests Teac revealed that it has very good DVD error correction ability. All the defected discs were read without malfunctions and readable errors.

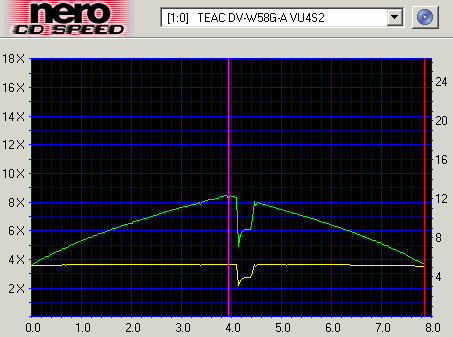

ABEX TDV-541

The TDV-541 is a single sided, dual layer DVD-VIDEO disc, with a capacity of 8.5GB.The disc is based on the TDV-540 series which is designed for inspection and adjustment of DVD-VIDEO players. The disc checks the layer switch operation from layer 0 to layer 1 and also includes test pictures and test signals for DVD sound files. The current TDV-541 also checks the error correcting capabilities of the drive and includes scratches sized from 0.4 to 3.0 mm.

The specified disc was read successfully despite the fact that there was a slight glitch just after the switch over to the second layer, but the drive recovered quickly.

ABEX TDV-545

The TDV-545 disc is based on the TDV-540 series. It is a single sided, dual layer Video/S-2 disc with a capacity of 8.5GB. The TDV-545 includes artificial black dots on the disc's surface, sized from 0.4 to 1.0 mm. It also has 65 - 75 micrometers high fingerprints.

This is also good behavior for a drive of its kind.
