1. Introduction
Review Pages
- Terramaster F4-210 NAS Server
The need for storage nowadays is increased due to the explosion of digital content. Many users want their movies on digital format and perhaps archive their digital files over network. TerraMaster recently announced their latest product, called F4-210 series that supports up to 4-bay NAS for personal cloud storage at a more affordable price. The TerraMaster F4-210 is just a portion of the price of an Intel-based NAS device. The F4-210 supports up to 108TB of storage and supports 3.5” SATA hard drives and 2.5” SATA hard drives and solid-state drives.
Cost-Effective Personal Cloud Storage Solution
TerraMaster’s F4-210 is equipped with an ARM V8 64-bit quad-core processor, a frequency of up to 1.4 GHz, and a read/write speed reaching 124 MB/s (RAID 0, WD Red 4TB x 2). With functions including file storage, multimedia management, data backup, cloud synchronization, remote access, and many more, the device is suitable for applications ranging from home multimedia entertainment to small office and home office (SOHO) settings. As an affordable device, the F4-210 is only half the price of a NAS with an Intel x86 quad-core processor.
Feature-packed Network Storage Server
F4-210’s storage capacity can reach up to 64TB. The device supports several array modes, including RAID 0, RAID 1, RAID 5, RAID 6, JBOD, and SINGLE, as well as HTTP, SMB/CIFS, AFP, FTP, NFS, and WebDAV. Additional features include users, user groups, and shared folder permissions settings. Read/write permissions for every user can be set as needed, and network storage space can be allocated for photos, videos, music files, and office documents.
A Private Space in the Cloud
TerraMaster’s TNAS.online service spares you from the hassle of setting up DDNS, network settings, and port forwarding rules when creating a personal cloud drive. Rights of access can be tailored to your family, relatives, staff, or friends, allowing you to share your happiness at no extra cost. The F4-210 supports file synchronization across various cloud drives, including Google Drive, Dropbox, and OneDrive, easily creating data transmission channels between your personal cloud and public cloud drives. Enjoying the benefits of a convenient cloud life has never been easier.
Satisfying Small Business
Dozens of free applications are available in the TOS Application Center, including backup, security, business, utilities, multimedia, and development tools. Small businesses can rapidly and conveniently build file storage servers, mail servers, web servers, FTP servers, MySQL databases, CRM systems, Node.js, and Java virtual machines, as well as a host of other commercial applications.
Sleek, Advanced, and Powerful: TOS 4.1.X
With TOS 4.1.X, the most recent version of the TOS operating system, you can back up your data, manage your file server, and optimize your sharing services in an intuitive, simple, and user-friendly way. The OS includes state-of-the-art software with rich application content, feature-rich multimedia services, and countless ways to streamline data backup.
Docker Brings You More Possibilities
The F4-210 is the only lightweight NAS on the market that supports Docker. The Docker application integrates Docker Hub, the world’s leading service for finding and sharing container images with your team and the Docker community. Docker Hub is the world’s largest repository of container images, and an array of content sources, including container community developers, open source projects, and independent software vendors (ISV), are now building and distributing containerized code. Users can access free public repositories for storing and sharing images, or they can choose subscription plans for private repos.
Advanced Data Security

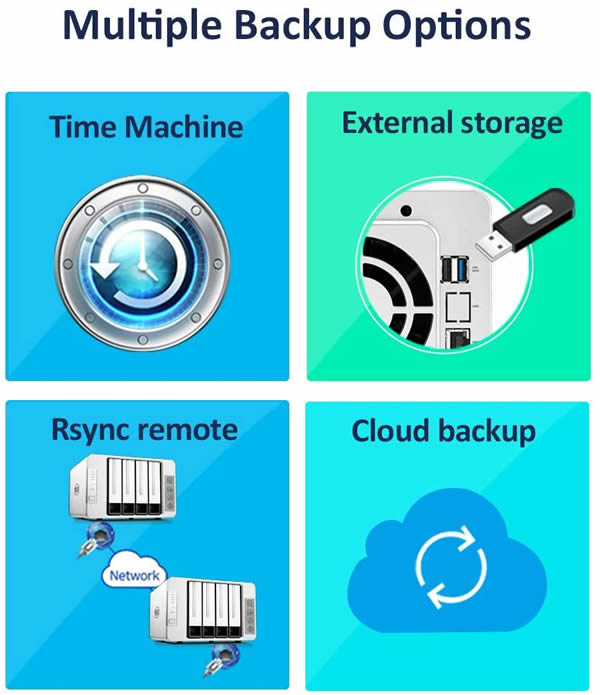

As an ideal backup server, the F4-210 allows you to back up data from your Windows PCs, Mac computers, mobile devices, USB storage devices, or file servers. TOS offers diverse backup methods: Mac users can choose Time Machine, Windows users AOMEI Backup, mobile devices TNAS mobile APP, USB devices USB Copy, and file servers Rsync backup.
Multimedia Powerhouse
F4-210 fully supports Emby and Plex, bringing your videos, music, and photos together into one place. Leveraging the rock-solid multimedia management capabilities of Emby or Plex allows you to turn your F4-210 into a feature-rich entertainment center. The servers keep your personal media beautifully organized, always ready for on-demand streaming to your PC, mobile device, or games console. Enrich your media with plot summaries, posters, album covers, and enjoy everything from home or on the go. You can even stream live TV to any device, manage your DVR, and enjoy your personal library. No more fumbling with IP addresses! Just sign in and play on any device, anytime, anywhere.
Smart Mobile App

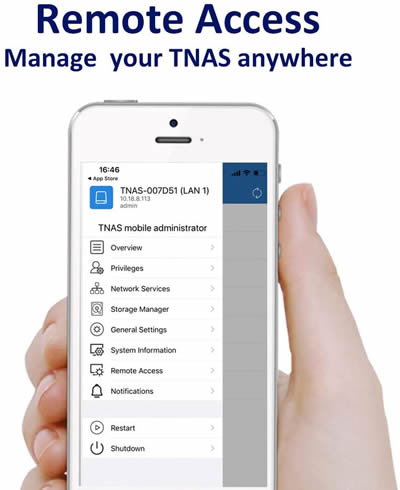

TNAS mobile is a dedicated mobile app developed for TNAS users by TerraMaster. The app provides quick and unrestricted access to your TNAS device through your iOS or Android. The latest update to TNAS mobile added a mobile administrator feature, which makes it easier for TNAS administrators to use mobile devices remotely to configure their devices, greatly improving flexibility and management efficiency.
Rapid Support with Exclusive Worry-Free Warranty
The TerraMaster F4-210 4-Bay NAS is backed with an exclusive worry-free two-year warranty. In any case of hardware failure, TerraMaster will replace the NAS device immediately. Users can also enjoy top-notch customer support service with 24-hour rapid response warranty.
-Specifications
Processor | |
Processor Model | Realtek RTD1296 |
Processor Architecture | ARM V8 64-bit |
Processor Frequency | Quad Core 1.4GHz |
Hardware Encryption Engine | √ |
Memory | |
System Memory | 2GB |
Maximum Supported Memory | 2GB |
Storage | |
Disk Slot Number | 4 |
Compatible Drive types | 3.5" SATA HDD |
2.5" SATA HDD | |
2.5" SATA SSD | |
Maximum Internal Raw Storage Capacity | 64TB (16TB x 4) (Capacity may vary by RAID types) |
Max Single Volume | 108TB |
Drive Hot Swap | √ |
File System | |
Internal Drive | EXT4,BTRFS |
External Drive | EXT3, EXT4, NTFS, FAT32, HFS+ |
External Ports | |
RJ-45 1GbE Network Jack | 1 |
USB 3.0 Port | 2 |
Others | |
Noise Level | 19.8dB(A) |
Power Supply | 90W |
AC Input Voltage | 100V - 240V AC |
Current Frequency | 50/60 Hz, single frequency |
Power Consumption | 25.6W |
Limited warranty | 2 years |
Temperature | |
Working Temperature | 5°C ~ 40°C (40°F ~ 104°F) |
Storage Temperature | -20°C ~ 60°C (-5°F ~ 140°F) |
Relative Humidity | 5% ~ 95% RH |
TOS Features | |
OS Supported | |
Supported Client OS | Windows OS, Mac OS, Linux OS |
Supported Web Browsers | Google Chrome 48, Microsoft Internet Explorer 9, Mozilla Firefox 30,Apple Safari 4.5 or later version; Microsoft Edge is not recommened. |
Supported mobile OS | Ios 8.2, Android 6.0 or later version |
Storage Management | |
Supported RAID Types | Single, JBOD, RAID 0, RAID 1, RAID5, RAID 6, RAID 10 |
Maximum Internal Volume Number | 64 |
Maximum iSCSI Target | 32 |
Maximum iSCSI LUN | 32 |
Volume Expansion with Larger HDDs | RAID 1,RAID5,RAID 6,RAID10 |
Volume Expansion by Adding a HDD | RAID5 |
RAID Migration | √ |
SSD Cache | √ |
Hot Spare | √ |
SSD TRIM | / |
Hard Drive S.M.A.R.T. | √ |
Seagate IHM | √ |
Shared Folder Snapshot | √ |
File Services | |
File Protocol | SAMBA/AFP/NFS/FTP/WebDAV |
Maximum Concurrent SAMBA/AFP/FTP Connections | 100 |
Windows Access Control List (ACL) Integration | √ |
NFS Kerberos Authentication | √ |
Account & Shared Folder | |
Maximum local user's account number | 128 |
Maximum local group number | 128 |
Maximum shared folders number | 128 |
Maximum shared folders syncing tasks | 2 |
Backup | |
Rsync Server | √ |
Rsync Backup | √ |
Schedule Backup | √ |
USB Device Backup | √ |
Cloud Sync | √ |
Time Machine Server | √ |
File System Gluster | / |
Networking | |
TCP/IP | IPv4 |
Protocols | CIFS/SAMBA, NFS, FTP, TFTP, HTTPS, SSH, iSCSI, SNMP, SMTP |
Link Aggregation | / |
DLNA Compliance | √ |
VPN Client | / |
VPN Server | / |
Proxy lient | √ |
Proxy Server | / |
UPnP/Bonjour Discovery | √ |
TNAS.online Remote Access | √ |
DDNS | √ |
Access Right Management | |
Batch users creation | / |
Import/Export users | / |
User Quota Managerment | √ |
Local user access control for CIFS/SAMBA and FTP | √ |
Domain Authentication | |
Microsoft Active Directory | / |
LDAP Client | / |
LDAP Server | / |
SSO | / |
Security | |
Firewall Protection | √ |
Account Auto-block Protection | √ |
AES Shared Folder Encryption | √ |
Importable SSL certificate | √ |
Instant Alert via email, SMS, Beep | √ |
Power Managerment | |
Automatic Power On After Power Recovery | √ |
Scheduled Power On/Off | √ |
Wakeup On LAN | / |
UPS Supported | √ |
Administration | |
Multi-window, Multi-task System Management | √ |
Custom Desktop | √ |
Control Panel | √ |
Resource Monitor | √ |
Syslog | √ |
OS UI Language | English,German, French, Spanish, Italian, Magyar, Chineses,Japanese,Korean |
Applications | |
Application Center | √ |
Mail Server | √ |
Web Server | √ |
Clam Antivirus | √ |
Download | √ |
Multi Media Server | √ |
Docker | √ |
Plex Media Server | √ |
Snapshot | √ |
