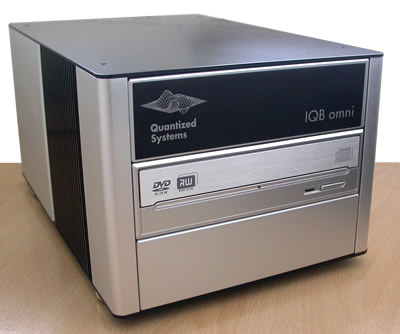

All CD/DVD writing quality tests are done using the IQB Omni CD DVD Analyser by Quantized. The IQB Omni from Quantized Systems is a physical disc analyser, covering all CD and DVD formats, designed to meet the Quality Control demands of the duplication and replication sectors.

Omni's features allows you to identify media quality issues and highlight drive performance and recording problems.

The system is based on a Philips CD/DVD drive. It supports the majority of the optical disc formats, including CD-ROM, CD-R/RW, CD-A
DVD-R/-RW, DVD-R DL, DVD+R/+RW, DVD+R DL, DVD-ROM 5 and DVD-ROM.

The platform can test the media for the following signals:

Test speeds for CD media are set at 16X and for DVD media at 4X.

The equipment is capable of providing mesasurments on the complete data area or at specific positions defined by the user (Quick Test mode). This zone testing procedure allows multiple areas of the disc to be tested in a single operation.

All numerical and graphical data are stored in a database. Data can be recalled with user defined criteria to create sets of related key results. Data can also be imported into most common software packages - MS Excel etc.

For more information on the Quantized IQB Omni Analyser, visit http://www.quantized.com.

In the following pages, we present the writing quality measurements of various CD and DVD recordable and rewritable media, burned with the LiteOn SLIMTYPE eSAU 208 burner.
