Teac DV-W50D and Memorex Dual-X1 - Page 15

KProbe PI/PO measurements

Memorex Dual-X1

In the following screenshots you can see the PI/PO scans for various 4X DVD-R/+R and DVD-RW/+RW media, recorded with Memorex Dual-X1 at the maximum speed.

The software we used for the measurements is the KProbe, and the reader is LiteOn XJ-HD-165H. The specific methodology is very depended on the drive we use as a reader, and the reliability of the PI/PO provided output is also not technically confirmed. As a result, we cannot safely come up with absolute results, but we are allowed to compare the behavior of the drive with various DVD recordable/rewritable media.

The recordable discs we used come from Pioneer, TDK, Memorex and Ritek. More information about each disc type is available in the bottom of the page.

• Ritek 4x DVD-R

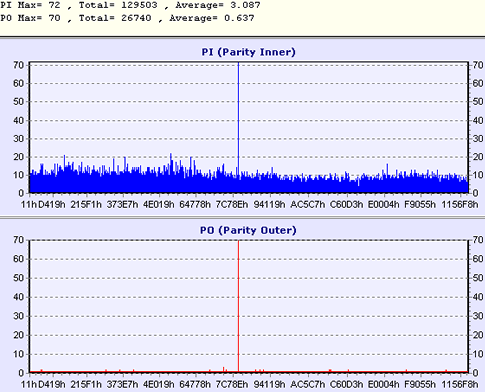

• TDK 4x DVD-R

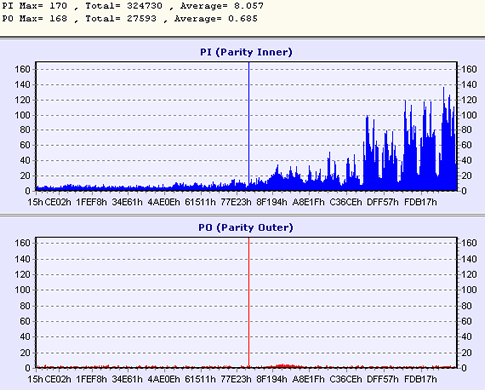

• Pioneer DVD-RW

• Sentinel DVD+RW

The performance of Memorex is familiar with Teac's. Again PI measurements were good but the PO values were increased.
