Asus DRW-1608P

May 19,2005 0

18. CDSpeed/PlexTools Scans - Page 7



Review Pages

1. Introduction
2. Transfer Rate Reading Tests
3. CD Error Correction Tests
4. DVD Error Correction Tests
5. Protected Disc Tests
6. DAE Tests
7. Protected AudioCDs
8. CD Recording Tests
9. Writing Quality Tests - Clover System Tests
10. Writing Quality Tests - C1 / C2 Error Measurements
11. DVD Recording Tests
12. CDSpeed/PlexTools Scans - Page 1
13. CDSpeed/PlexTools Scans - Page 2
14. CDSpeed/PlexTools Scans - Page 3
15. CDSpeed/PlexTools Scans - Page 4
16. CDSpeed/PlexTools Scans - Page 5
17. CDSpeed/PlexTools Scans - Page 6
18. CDSpeed/PlexTools Scans - Page 7
19. Writing Quality Tests - Almedio AEC-1000
20. DVDR DL - Page 1
21. DVDR DL - Page 2
22. 1608P vs SA300
23. Bitsetting
24. Conclusion



In order to test the writing quality and readability of the burned media we used two readers with two software applications:

  • The LiteON SOHD-167T with patched firmware being able to read DVD5 up to 16X CAV and DVD9 up to 10X CAV. For the transfer rate tests we used the latest Nero CDSpeed version.
  • The Plextor PX-712A with the latest available firmware. For scanning the disc, we used the latest PlexTools version at 2X CLV reading speed, BURST mode, with middle accuracy.

In general, a "perfect" disc should have a smooth reading curve, very low PIE/POE and zero (0) POF error rates. Most times however, even though a disc has very low PIE/POE error rates, the reading curve may not be smooth containing dropoffs. Due to the fact that we oversped the reading capabilities of the LiteON SOHD-167T, such drops are expected, especially near the outer area of the disc.

The measurements below should be taken not as the absolute criteria of the burning quality, but as an indication level.

DVD±RW Writing Speed

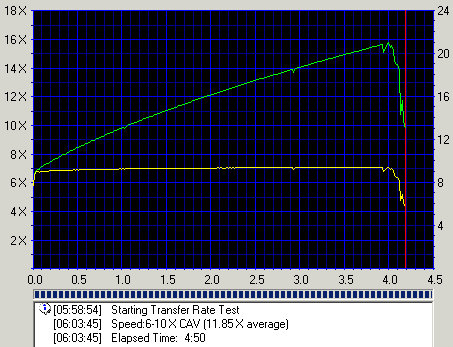

  • Traxdata 6X DVD-RW @ 6X

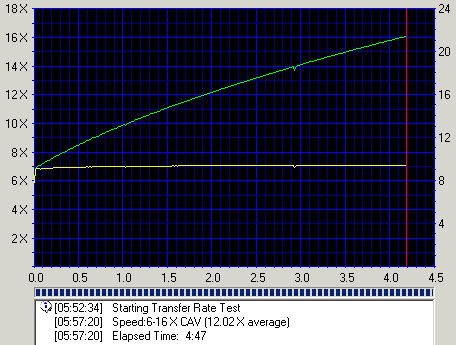

  • Verbatim 6X DVD-RW @ 6X

  • MKM 4X DVD+RW @ 4X

  • Traxdata 4X DVD+RW @ 4X

- Summary

DVD-RW recorded at 6X reported very good quality with both Traxdata and Verbatim media. The DVD+RW burning with the ASUS 1608P however needs some improvement.
