BIOSTAR TA970 Plus AMD Mainboard Offers Advanced Clock Calibration Options

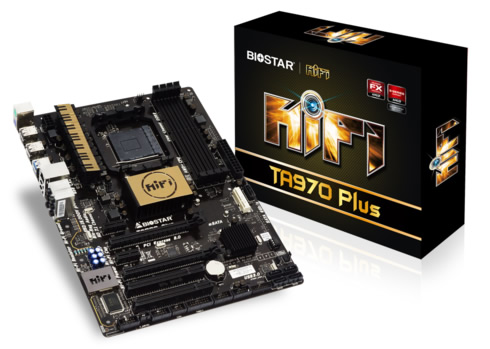

BIOSTAR has released an AMD socket AM3+ motherboard, the TA970 Plus with AMD OverDrive and the ACC (Advanced Clock Calibration) feature. Designed for gamers and enthusiasts, the new AMD 970 chipset board supports AMD multi-Core (x8, x6) and Socket AM3 processors including the AMD FX/ Phenom II and Athlon II versions.
It is a full sized ATX board with 4 DDR3 DIMM slots and mSATA/Mini PCI-E combo connector. It supports SATA 6Gb/s speeds, which are two times the speed of current SATA 3G. Of course there is USB 3.0 support as well. Powerful graphics are supported with AMDs CrossfireX capability.
To get every power advantage the TA970 Plus features the AMD OverDrive and the ACC (Advanced Clock Calibration) function. This allows power users to overclock their system by precisely calibrating the clock timings between the processor and RAM chips. These timings are critical in maintaining system stability when overclocking.
BIOSTAR exclusive features of the TA970 Plus include the BIO-Remote II, Smart Speed LAN and PURO Hi-Fi technology. The PURO Hi-Fi technology features an integrated independent audio power design with a built-in amplifier. The technology utilizes audio components with an independent power delivery design for a reduction in electronic noise. The noise-blocking multi-layer PCB layout is conducive for a clean signal. That design feature, together with a sampling rate of 192 kHz/24-bit, delivers high quality audio through an analog connection to your home theater system, multi-channel speakers or high-end headphones.
Chipset | AMD 970 / SB950 |
CPU SUPPORT | AMD FX Processor AMD Phenom II X6 Processor AMD Phenom II X4 Processor AMD Phenom II X3 Processor AMD Phenom II X2 Processor AMD Athlon II X4 Processor AMD Athlon II X3 Processor AMD Athlon II X2 Processor AMD Sempron Processor Maximum CPU TDP (Thermal Design Power) : 140Watt |
HT | Support HT 4.8G |
MEMORY | Support Dual Channel DDR3 2133(OC)/2000(OC)/1866/1600/1333/1066/800 MHz 4 x DDR3 DIMM Memory Slot Max. Supports up to 64GB Memory |
EXPANSION SLOT | 2 x PCI-E x16 2.0 Slot (x16, x4) 2 x PCI-E x1 2.0 Slot 2 x PCI Slot |
STORAGE | 5 x SATA3 Connector 1 x mSATA Connector Support SATA RAID: 0,1,5,10 |
USB | ASMedia ASM1042A USB 3.0 Controller 2 x USB 3.0 Port 1 x USB 3.0 Header 6 x USB 2.0 Port 2 x USB 2.0 Header |
LAN | Realtek RTL8111GR - 10/100/1000 Controller |
MULTI GRAPHICS | AMD CrossFireX |
CODEC | Realtek ALC892 8-Channel Blu-ray Audio Support Biostar Hi-Fi |
REAR I/O | 1 x PS/2 Mouse 1 x PS/2 Keyboard 2 x USB 3.0 Port 6 x USB 2.0 Port 1 x RJ-45 Port 6 x Audio Connector |
INTERNAL I/O | 1 x USB 3.0 Header 2 x USB 2.0 Header 5 x SATA3 6Gb/s Connector 1 x mSATA/Mini PCI-E Combo Connector 1 x Front Audio Header 1 x Front Panel Header 1 x S/PDIF-Out Header 1 x CPU Fan Header 2 x System Fan Header 1 x Serial Header 1 x CIR Header |
H/W MONITORING | CPU / System Temperature Monitoring CPU / System Fan Monitoring Smart / Manual CPU Fan Control System Voltage Monitoring |
DIMENSION | ATX Form Factor Dimension: 30.5cm x 22.5cm ( W x L ) |
OS SUPPORT | Support Windows XP / Vista / 7 / 8 |
SOFTWARE | BullGuard BIO-Remote2 BIO-Remote Biostar MAGIX Multimedia Software Suite Smart Speed LAN |
ACCESSORIES | 2 x SATA Cable 1 x I/O Shield 1 x DVD Driver 1 x User Manual |
FEATURES | Supports PURO Hi-Fi Supports AOD ACC Supports 100% Solid capacitor Supports BIOS-Flasher Supports Charger Booster Supports BIOS Online Update |
