Product Highlights

Microsoft^® Windows Mobile^TM 5.0 software with Windows Media Player 10 Mobile
Powered by the Intel^® XScale^TM PXA270 Processor at 624MHz
Brilliant 3.7" color TFT VGA display with 640x480 resolution
Integrated Intel^® 2700G multimedia accelerator with 16MB video memory
Integrated 802.11b and Bluetooth^TM Wireless Technologies
Packed with 64MB SDRAM and 256MB Flash ROM
Integrated CompactFlash Type II and Secure Digital / SDIO Now! / MMC card slots provide flexible expansion
VGA-Out Support with optional VGA Presentation Bundle
Removable Primary Battery with optional High Capacity Battery
3.5mm Headphone / Headset Jack for Headsets to support VoIP and voice recognition applications
Built-in microphone and speaker for easy recording on the go
USB Cradle including Battery Charging Slot
Sleek, stylish design

Technical Specifications

Processor

Intel^® XScale^TM PXA270 624MHz

Operating System

Microsoft^® Windows Mobile^TM 5.0 software with Windows Media Player 10 Mobile

Memory

	RAM: 64MB SDRAM
	ROM: 256MB Flash memory

Display

	TFT Color 16-bit, Touch Sensitive, Transflective LCD
	3.7 inches
	480 x 640 resolution at 65,536 colors (VGA)

Graphics

Intel^® 2700G multimedia accelerator with 16MB video memory

Control and Lights

5-way Navigation button

Wireless On/Off Button
Lock Switch

4 Program Buttons: Calendar, Contacts, Inbox, Home

Voice Record Button

Reset Button

Backlit Power Button

	Event Notification
	Charge Status
	Wireless Status

Expansion Slots

	1 CompactFlash Type II Card Slot (3.3v)
	1 Secure Digital / SDIO Now / MMC Memory Card Slot (3.3v)

Ports and Connectors

	Standard v1.2 (115 kbps) Infrared Port
	36-pin Cradle/Sync Connector
	3.5mm Headphone/Headset Jack

Dimensions

	Length 119 mm (4.7 inches)
	Width 73 mm (2.9 inches)
	Height 16.9 mm (0.7 inches)
	Weight 175 grams (6.2 oz)

Audio

	Audio Controller I2S Codec, WM8750 sound chip
	Stereo Conversion 16-bit stereo; 8.0, 11.025, 22.05 and 44.1KHz sample rate
	Full Duplex Record and Playback
	Integrated Microphone and Speaker

Power Supply

AC Adapter

Battery Type

	1100 mAh Lithium-Ion Removable, Rechargeable (standard)
	2200 mAh Lithium-Ion Removable, Rechargeable (optional)

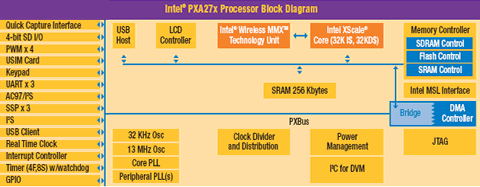

Intel PXA270 Features and Benefits

Dell logo The Intel PXA270 processor is the first Intel XScale® technology-based processor to include Intel® Wireless MMX™ technology. This enables high-performance multimedia acceleration with an industry proven instruction set.

Another innovative feature is the Intel® Quick Capture technology, which provides one of the industry's most flexible and powerful camera interfaces for capturing digital images and video.

The new capabilities of Wireless Intel SpeedStep® Power Manager technology provide a quantum leap forward in low-power operation, while maintaining the highest levels of performance.

Intel XScale® Technology	Highly scalable core up to 520 MHz
Embedded Packaging	23x23 mm with 1.0 mm ball pitch 13x13 mm with 0.5 mm ball pitch also available
Extended Temperature Range	–40°C to 85°C ambient temperature range available
Product Life Cycle	Anticipated five-year life cycle.¹
Incredible Multimedia	Familiar Intel® Wireless MMX™ technology instructions designed for high-performance multimedia, 3-D games and advanced video.
Advanced Camera Interface	Intel® Quick Capture technology supports 4+ megapixel cameras for capturing digital images, video and low-power, real-time previews.
Enhanced LCD Controller	Dual-panel LCD with up to 24-bit color. Hardware color space conversion with 256 KB of on-chip SRAM for faster video. Two overlays reduce LCD bandwidth. Integrated Intel Quick Capture technology enables fast video preview.
Reduced Power Consumption	Wireless Intel SpeedStep® Power Manager technology with five low-power modes can change frequency and voltage dynamically. Wireless Intel SpeedStep Power Manager software enables built-in, intelligent power management.
Fast Access to Wireless Data	Intel® Mobile Scalable Link provides up to 416 Mbps link between communications and applications processors.
Large Peripheral Set	USB Host/Client USB OTG 4-bit SD I/O MMC/SDCard Memory Stick USIM card interface Keypad controller
Memory Interface	100 MHz memory bus supports a variety of 1.8 V, 2.5 V, 3.0 V and 3.3 V memory.
¹ Intel anticipates providing support for the Intel® PXA270 processor for a minimum of five (5) years from launch, pending sufficient, continued customer demand and other market conditions and factors. If and when Intel decides to no longer provide support for these products, we will follow our standard product discontinuance notification guidelines of six months to place last time orders and an additional six months to take delivery of the product.
