Intel Introduces New SSD for Notebook and Desktop Computers

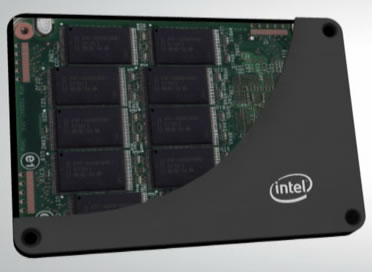

Intel announced today it has begun shipping Intel X18-M and X25-M Mainstream SATA Solid-State Drives (SSDs) based on multi-level cell (MLC) NAND flash technology for laptop and desktop computers.
The new high-performing data storage devices give computer buyers a new level of system responsiveness in a lightweight package that could replace traditional hard disk drives.
Validated for Intel-based computers, the X18-M is a 1.8-inch drive and the X25-M a 2.5-inch drive, offering faster overall system response, boot and resume times. With no moving parts, SSDs run cooler and quieter and are a more reliable option than hard drives. In addition, SSDs remove input/output (I/O) performance bottlenecks associated with hard disk drives that help maximize the efficiency of Intel processors, such as the company's Core family of products. Lab tests conducted by Intel show that the Intel X18-M and X25M increase storage system performance nine times over traditional hard disk drive performance.
"Validated by our rigorous testing and OEM customer feedback, we believe that we have developed an SSD that delivers on the promises of SSD computing," said Randy Wilhelm, Intel vice president and general manager of the NAND Products Group. "By combining our experience in flash memory design with our processor and computing expertise, we have added advances such as our parallel 10-channel architecture, proprietary controller, firmware and memory management algorithms that address write amplification and wear leveling issues to redefine SSD performance and reliability for computing platforms."
The Intel X18-M and X25-M Mainstream SATA SSDs are available in 80 gigabyte (GB) capacities, with 160GB versions sampling in the fourth quarter of this year. The 80GB drive achieves up to 250MB per second read speeds, up to 70MB per second write speeds and 85-microsecond read latency. The 80GB version is priced at $595 for quantities up to 1,000. These SSDs are available now and end-customer products containing the Intel High-Performance SATA SSDs are expected to begin shipping in the next few weeks.
The company is also expected to introduce a line of single-level cell (SLC) SSDs for the server, storage and enterprise environments within the next 90 days. Called the Intel X25-E Extreme SATA Solid-State Drive, these products are designed to maximize the Input/Output Operations Per Second (IOPS), which equates to higher performance and lower enterprise costs.
Specifications
Model Name:
Intel X18-M Mainstream SATA Solid-State Drive
Intel X25-M Mainstream SATA Solid-State Drive
Capacity: 80GB and 160GB
NAND Flash Components: Intel Multi-Level Cell (MLC) NAND Flash Memory 10 Channel Parallel Architecture with 50nm MLC ONFI 1.0 NAND
Bandwidth:
Up to 250MB/s Read Speeds
Up to 70MB/s Write Speeds
Read Latency: 85 microseconds
Interface: SATA 1.5 Gb/s and 3.0 Gb/s
Form factor:
X18-M: 1.8" Industry Standard Hard Drive Form Factor
X25-M: 2.5" Industry Standard Hard Drive Form Factor
Compatibility: SATA Revision 2.6 Compliant. Compatible with SATA 3.0 Gb/s with Native Command Queuing and SATA 1.5 Gb/s interface rates
Life expectancy: 1.2 million hours Mean Time Before Failure (MTBF)
Power consumption:
Active: 150mW Typical (PC workload?)
Idle (DIPM): 0.06W Typical
Operating shock: 1,000G / 0.5ms
Operating temperature: 0°C to +70°C
RoHS Compliance: Meets the requirements of EU RoHS Compliance Directives
Product health monitoring: Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.) commands plus additional SSD monitoring
Validated for Intel-based computers, the X18-M is a 1.8-inch drive and the X25-M a 2.5-inch drive, offering faster overall system response, boot and resume times. With no moving parts, SSDs run cooler and quieter and are a more reliable option than hard drives. In addition, SSDs remove input/output (I/O) performance bottlenecks associated with hard disk drives that help maximize the efficiency of Intel processors, such as the company's Core family of products. Lab tests conducted by Intel show that the Intel X18-M and X25M increase storage system performance nine times over traditional hard disk drive performance.
"Validated by our rigorous testing and OEM customer feedback, we believe that we have developed an SSD that delivers on the promises of SSD computing," said Randy Wilhelm, Intel vice president and general manager of the NAND Products Group. "By combining our experience in flash memory design with our processor and computing expertise, we have added advances such as our parallel 10-channel architecture, proprietary controller, firmware and memory management algorithms that address write amplification and wear leveling issues to redefine SSD performance and reliability for computing platforms."
The Intel X18-M and X25-M Mainstream SATA SSDs are available in 80 gigabyte (GB) capacities, with 160GB versions sampling in the fourth quarter of this year. The 80GB drive achieves up to 250MB per second read speeds, up to 70MB per second write speeds and 85-microsecond read latency. The 80GB version is priced at $595 for quantities up to 1,000. These SSDs are available now and end-customer products containing the Intel High-Performance SATA SSDs are expected to begin shipping in the next few weeks.
The company is also expected to introduce a line of single-level cell (SLC) SSDs for the server, storage and enterprise environments within the next 90 days. Called the Intel X25-E Extreme SATA Solid-State Drive, these products are designed to maximize the Input/Output Operations Per Second (IOPS), which equates to higher performance and lower enterprise costs.
Specifications
Model Name:
Intel X18-M Mainstream SATA Solid-State Drive
Intel X25-M Mainstream SATA Solid-State Drive
Capacity: 80GB and 160GB
NAND Flash Components: Intel Multi-Level Cell (MLC) NAND Flash Memory 10 Channel Parallel Architecture with 50nm MLC ONFI 1.0 NAND
Bandwidth:
Up to 250MB/s Read Speeds
Up to 70MB/s Write Speeds
Read Latency: 85 microseconds
Interface: SATA 1.5 Gb/s and 3.0 Gb/s
Form factor:
X18-M: 1.8" Industry Standard Hard Drive Form Factor
X25-M: 2.5" Industry Standard Hard Drive Form Factor
Compatibility: SATA Revision 2.6 Compliant. Compatible with SATA 3.0 Gb/s with Native Command Queuing and SATA 1.5 Gb/s interface rates
Life expectancy: 1.2 million hours Mean Time Before Failure (MTBF)
Power consumption:
Active: 150mW Typical (PC workload?)
Idle (DIPM): 0.06W Typical
Operating shock: 1,000G / 0.5ms
Operating temperature: 0°C to +70°C
RoHS Compliance: Meets the requirements of EU RoHS Compliance Directives
Product health monitoring: Self-Monitoring, Analysis and Reporting Technology (S.M.A.R.T.) commands plus additional SSD monitoring
