LG GSA-4081B Multi DVD Recorder - Page 13

KProbe PI/PO quality results

The following screenshots show the PI/PO scans for the various DVD-/+R and DVD-/+RW media, recorded with the LG GSA-4081B Multi DVD Recorder at the maximum permitted speed.

The software used for the measurements was KProbe v1.1.28, the reader was LiteOn LDW-811s and the ECC was set to 8. The specific methodology is very dependent on the drive used as a reader, while the reliability of the PI/PO provided output is also not technically confirmed. Hence as a result, we cannot safely come up with conclusive results, although we do make a comparison of the drive's behaviour when using various DVD recordable/rewritable media.

The recordable discs used came from Mitsubishi Chemicals, CMC Magnetics, N-Tech, Plextor, Ritek, Philips, Pioneer, and Ricoh. Further details about each disc type are presented at the bottom of this page.

• Mitshubishi Chemicals 8x DVD+R (recorder at 4x)

• CMC Magnetics 8x DVD+R (recorder at 4x)

• Philips 8x DVD+R (recorder at 4x)

• Plextor 8x DVD+R (recorder at 4x)

• Mitshubishi Chemicals 4x DVD+R (recorder at 4x)

• N-Tech 4x DVD+R (recorder at 4x)

• Ricoh 4x DVD+RW (recorder at 4x)

• Mitshubishi Chemicals 4x DVD+RW (recorder at 4x)

• CMC Magnetics 4x DVD-R (recorder at 4x)

• Ritek 4x DVD-R (recorder at 4x)

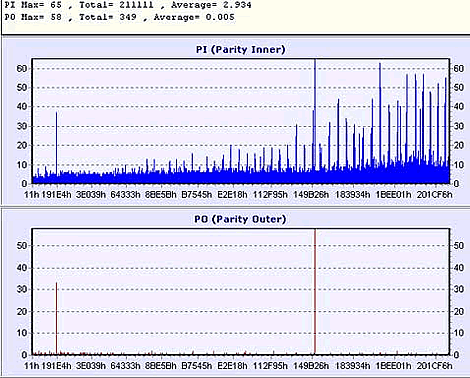

• Mitshubishi Chemicals 4x DVD-R (recorder at 4x)

• Pioneer 2x DVD-RW (recorder at 2x)

• CMC Magnetics 2x DVD-RW (recorder at 2x)
