LG GSA-4120B DL Recorder - Page 9

Writing Quality Tests - 3T Jitter Tests

On this page, we present the 3T Pit & Land Jitter graphs when using various media burned at 40X CAV writing speed.

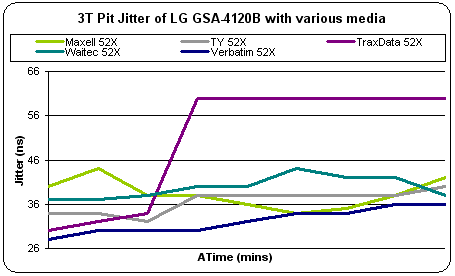

- 3T Pit results

Generally, the drive performed well but with selected media. Best results were achieved with Verbatim 52X CD-R media. With TraxData 52X, the results were very bad, the disc reached very high 3T Pit/Land values.

Below are the average 3T Pit Jitter for the various media:

- 3T Land results

The average 3T Land results are high, with the best results with the Verbatim media.
