LG GSA-4163B DL Burner - Page 22

DVD-RAM Tests

The LG recorders are the first ever PC recorders to support 5X DVD-RAM media. Maxell announced on 26th of May, 2004, the release of 5X DVD-RAM media. DVD-RAM media is the most appropriate media for large file storage and recovery, since it combines an error correction system and BCM (Bismuth Coupling Material) recording layer technology, which improves signal to noise ratio for higher reliability during high-speed recording.

As Maxell stated: "DVD-RAM is an advanced recording media format that offers a range of digital data applications. Its phase-change recording material allows discs to be re-recordable and erasable, and a superior defect management system ensures accurate recording and playback. DVD-RAM allows instant, random access to any location on the disc for fast and easy data reading and writing. Because DVD-RAM supports fast formatting and no finalizing, it is an extremely easy-to-use media. And with DVD-RAM, changes can be made directly on the disc without the need to transfer data to a hard drive first, speeding up the editing tasks..."

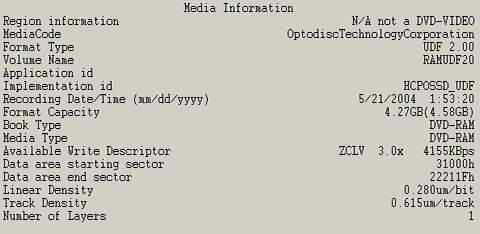

For our test, we used two different DVD-RAM media, Optodisc 3X DVD-RAM media and Maxell 5X DVD-RAM media. Below, you can see the media information according to DVDInfoPro:

You can see that the Optodisc media comes pre-formatted with UDF2.00, meaning WinXP/2k will recognize the disc directly, since DVD-RAM is supported by Microsoft. Of course, you can format (erase) the disc and use it with a normal application like Nero. LG includes the well known InCD for packet writing.

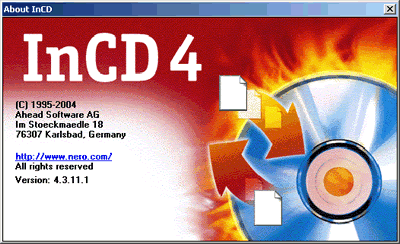

For our tests, we used the latest InCD version 4.3.11.1:

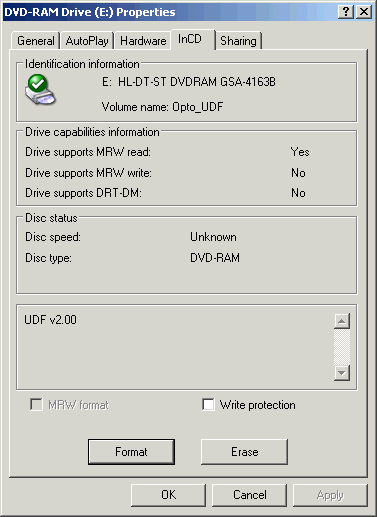

After installing InCD, a new TAB was added to the drive's properties providing information about the media file system:

• Optodisc DVD-RAM media

• Maxell DVD-RAM media

Since the Maxell media was not formatted, we used InCD for this.

Then we were able to copy files from the HD onto the DVD-RAM media, using the drag'n'drop method, as well as delete them.

- Burning Tests

Using NeroCDSpeed, we got the following graph:

The drive started writing at 1.39X using the P-CAV writing strategy and reached 2.35X, giving an average writing speed of 2.15X. To find an explanation as to why the drive cannot reach 5X writing speed, we need to look at writing strategies. The LG drive uses the "write and verify" function while writing to DVD-RAM media, as opposed to +R/+RW or -R/-RW media, where the verify function is not used. Hence, with DVD-RAM media, the drive automatically verifies all written data. This explains why the drive reports or implies a slower speed than the specifications give.

LG commented that "...In the case of DVD-RAM, it has Write and Verify feature. This means drive reads after write to verify written data.  Default setting of GSA-4163B for this Write and Verify feature is enabled.  This is the reason why you see ~1.4-2.1X writing speed, which is just below half of 5X speed.  In the case of video streaming data write, Write and Verify feature is disabled, therefore, in this case writing speed is 5X ZCLV..."

Using the latest Nero version, we burned our usual Single Layer DVD complilation.

• Maxell 5X DVD-RAM media

• Optodisc 3X DVD-RAM media

We hope to see better recording times in the near future, or at least the choice to select between "write and verify" or simply "write" with DVD-RAM media.
