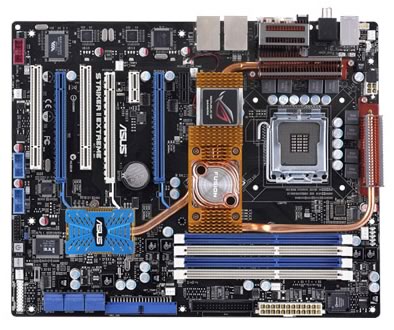

The Asus Striker II Extreme is the "The Ultimate Gaming/Overclocking Platform" according to Asus. The motherboard has been designed by Asus and it is based on Nvidia's 790i SLI chipset, the only chipset that offers SLI support for Intel C2D processors.
The motherboard supports the DDR3-2000 dual-channel memory architecture and has three PCI Express 2.0 x16 lanes for extreme graphics performance (3-way SLI). It also comes with the ASUS EPU (Energy Processing Unit) for power efficiency. The included water cooling solution makes overclocking a really easy task for experienced users.
- Intel® Quad-core CPU Ready
- Intel® Core™2 Extreme / Core™2 Duo Ready
- Support Intel next generation 45nm Multi-Core CPU
- NVIDIA nForce® 790i Ultra SLI™
- Dual-channel DDR3 2000(O.C.)/1800(O.C.)/1600(O.C)/1333/1066/800 Support
- Fusion Block System
- CPU Level Up
- Memory Level Up
- LCD Poster
- SupremeFX II 8-CH Audio
LGA775 Intel® Core™2 Processor Ready This motherboard supports the latest Intel® Core™2 processors in LGA775 package. It also can support Intel® next generation 45nm Multi-Core CPU. With new Intel® Core™ microarchitecture technology and 1600 / 1333 / 1066 / 800 MHz FSB, Intel® Core™2 processor is one of the most powerful and energy efficient CPU in the world. |
|
PCIe 2.0 |
|
Fusion Block System
H2O ready: The next step in thermal solution. The Fusion Block System is a more efficient thermal solution compared to competing followers with complicated looks. It is a hybrid thermal design that combines the ROG's renowned heatpipe design with the additional ability to connect to a water cooling system. By taking the entire integrated solution into design considerations, the user can enjoy exceptional thermal improvement to north bridge, south bridge, Crosslinx, and even VRM with a single connection. The Fusion Block System is the most versatile, efficient, and the most advanced thermal system there is on a motherboard. |
|
CPU Level Up - A Simple click for instant upgrade Ever wish that you could have a more expansive CPU? Upgrade your CPU at no additional cost with ROG´s CPU Level Up! Simply pick the processor you wanted to OC to, and the motherboard will do the rest! See the new CPU speed and enjoy that performance instantly. Overclocking is never as easy as this. |
More information on the Asus Striker II Extreme is available on Asus website.
- Full specifications
CPU |
Intel Socket 775 Core™2 Extreme/Core™2 Duo/Pentium® Extreme/Pentium® D/Pentium® 4/Celeron Processors Compatible with Intel® 05B/05A/06 processors Support Intel® next generation 45nm CPU * Refer to www.asus.com for Intel CPU support list |
Chipset |
NVIDIA nForce 790i Ultra SLI |
Front Side Bus |
1600/1333/1066/800 MHz |
Memory |
4 x DIMM, Max. 8 GB, DDR3 2000*/1800*/1600*/1333/800 Non-ECC,Un-buffered Memory Dual channel memory architecture - supports NVIDIA® SLI™-ready technology *Overclock speed **Refer to www.asus.com or this user manual for the Memory QVL(Qualified Vendors Lidts). |
Expansion Slots |
2 x PCIe 2.0 x16 ,support NVIDIA® SLI™ technology, at full x16, x16 speed(blue) 1 x PCIe x16 ,at x16 speed(middle) 2 x PCIe x1 ( the PCIEx1_1 (black) is compatible with audio slot) 2 x PCI 2.2 |
Scalable Link Interface (SLI™) |
Support NVIDIA 3-way SLI graphics cards (triple at x16 mode) |
Storage |
Southbridge 1 xUltraDMA 133/100/66/33 6 xSATA 3 Gb/s ports NVIDIA MediaShield™ RAID Support RAID 0,1,0+1,5,JBOD span cross Serial ATA drives JMicron® JMB363 PATA and SATA controller 2 xExternal SATA 3.0Gb/s port on back I/O (SATA On-the-Go) |
LAN |
Dual Gigabit LAN, both featuring AI NET2 Support Teaming Technology |
Audio |
SupremeFX II Audio Card ADI 1988B 8 -Channel High Definition Audio CODEC Coaxial / Optical S/PDIF out ports at back I/O ASUS Noise Filter |
IEEE 1394 |
2 x 1394a ports (1 port at back I/O, 1 port onboard) |
USB |
10 USB 2.0 ports (6 ports at mid-board, 4 ports at back panel) |
Overclocking Features |
Extreme Tweaker Loadline Calibration 2-Phase DDR 3 Intelligent overclocking tools - CPU Level Up - Memory Level Up - AI Gear 3+ - AI Overclocking (intelligent CPU frequency tuner) - ASUS AI Booster Utility - ASUS O.C. Profile: overclocking configuration-sharing tool Overclocking Protection - COP EX (Component Overheat Protection - EX) - Frequency LED - Voltiminder LED - ASUS C.P.R.(CPU Parameter Recall) |
Special Features |
LCD Poster Fusion Block System EL I/O Onboard Switches: Power / Reset / Cls CMOS (at rear) ASUS EPU (Energy Processing Unit) Q-Connector Q-Fan Plus ASUS EZ Flash 2 ASUS Q-fan 2 ASUS CrashFree BIOS BIOS Wallpaper ASUS MyLogo3 |
Back Panel I/O Ports |
1 x PS/2 Keyboard 2 x External SATA 1 x IEEE 1394a 2 x LAN(RJ45) port 6 x USB 2.0/1.1 1 x Clr CMOS switch 1 x Optical + 1 x Coaxial S/PDIF Output1 x onboard LED switch |
Internal I/O Connectors |
2 x USB connectors supports additional 6 USB 2.0 ports 1 x Floppy disk drive connector 1 x IDE connector 6 x SATA connectors 1 x IEEE 1394a connector 8 x Fan connectors: 1 x CPU / 1 x PWR / 3 x Chassis / 3 x Optional 1 x S/PDIF Out connector 1 x8-pin ATX 12V Power connector 24-pin ATX Power connector 1 x EL I/O Shield Connector 1 x En/Dis-able Clr CMOS connector 3 x thermal sensor connectors Chassis Intrusion connector System Panel 1 x ROG connector |
BIOS |
8 Mb Flash ROM DMI 2.0 PnP WfM 2.0 SM BIOS 2.4 Award BIOS ACPI 2.0a Multi-language BIOS |
Manageability |
WOL by PME,WOR by PME,Chasis Intrusion,PXE |
Accessories |
LCD Poster ASUS Optional Fan SupremeFX II Audio Card 3 in 1 ASUS Q-Connector Kit UltraDMA 133/100/66 cable Floppy disk drive cable 3-way SLI bridge ASUS SLI bridge SATA cables SATA power cables 2-port USB2.0 + IEEE 1394a module EL I/O Shield Thermal sensor cables DIY Pedestal Fusion Block System Accessory Cable Ties User's manual |
Support Disc |
The hottest DX10 Game: Company of Heroes: Opposing Fronts Support DVD: - Drivers and applications ASUS PC Probe II ASUS Update ASUS AI Suite Futuremark ® 3DMark® 06 Advanced Edition Kaspersky® Anti-Virus |
Form Factor |
ATX Form Factor 12 inch x 9.6 inch ( 30.5 cm x 24.5 cm ) |
