Philips JackRabbit4 DVD+RW recorder - Page 10

Writing Quality Tests - 3T Jitter Tests

Here we used 80min CD-R media from various manufacturers and burned the same AudioCD project at 16x. The following graphs show the 3T Pit & Land Jitter results.

- 3T Pit results

All media brands we tried revealed high writing quality for the drive. Only HiSpace gave slightly increased values while all other media were rather low. Check the performance with Ritek.

The average 3T Jitter values for all manufacturers discs are illustrated in the following graph. Here you can see that all values are bellow the Red Book Limit.

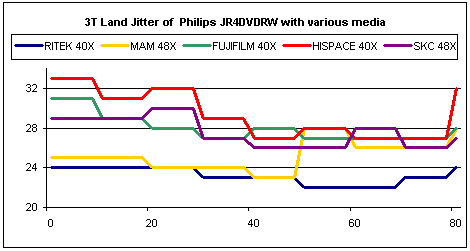

- 3T Land results

Once again the measurements were very low with all media brands used.

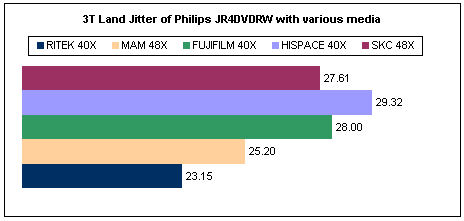

The average values presented below confirm the ability of the Philips drive to burn CD's at high quality. Notice that the average values are almost the same with the 3T Pit jitter ones from the previous, similar graph.

- Summary

Ending this set of tests, we can easily conclude, for one more time, that although the drive is not as fast as it could be, it is an excellent recorder.
