CD Recording Tests

- CD-R Writing

The Pioneer DVR-SK12D supports 4x, 8x, 12x and 16x writing speeds under Z-CLV mode.

The writing procedure starts at 8x CLV remaining steady until the 20min address mark on the disc, climbing up to 12x. A third speed switch occurs at the 50min address mark, where the Pioneer DVR-K12D reaches a maximum speed of 16x.

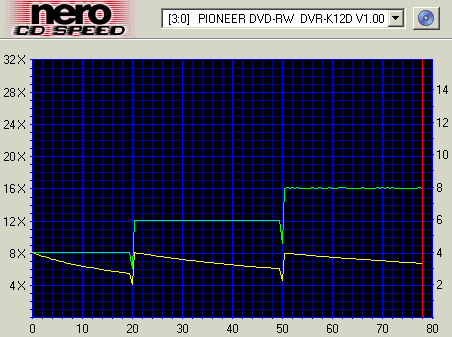

According to CDSpeed, the average writing speed with an 80min blank disc is 12.35x. The writing simulation graph is given below:



For the burning tests we created an 80min data compilation through Nero Burning Rom, and recorded the data on a 700MB disc. Pioneer finished the task in 7:49 minutes, when we selected the 16x writing speed. Below can be seen the best writing times (sec) of the dirve at speeds of 8x, 12x and 16x.

- Other features

Overburning	Up to 90:07 min
CD text reading/writing	Yes

- CD-RW Writing

The Pioneer DVR-SK12D supports the 4x and 10x CLV rewriting speeds, with High Speed CD-RW. Below is the CDSpeed writing simulation graph with 10x HS-RW media. The average writing speed for the test was 10.28x.

For the burning tests we created a 74min data compilation through Nero Burning Rom, and recorded the data on a 650MB HS-RW disc. The drive completed the task in 8:01 minutes, when we selected the 10x writing speed:

- Packet Writing Tests

We used InCD and a 10x HS-RW media from Mitsubishi Chemicals for all Packet Writing tests (22 KB) from a local Hard Disk onto the formatted RW media through Windows explorer (drag and drop).



	Duration	Average speed
Read	6:59 min	6.57X
Write	7:09 min	6.41X

The drive achieved competitive times and speed in this test. The numbers were almost the same for both read and write processes.
