Model 16X DVD Dual Drive with Double Layer Writing
Interface:
ATAPI/E-IDE
Data Buffer Memory 2MB
Data Transfer Rate (max)

DVD+R Writing
16X
DVD+R DL Writing
4X
DVD+RW Rewriting
8X
DVD-R
16X
DVD-RW Rewriting
6X
DVD-ROM Reading
16X
CD-R Writing 48X
CD-RW Rewriting 24X
CD-ROM Reading 48X
Random Acces Time 120ms
Support Media for Reading DVD : DVD Single/dual layer (PTP, OTP), DVD-R, DVD+R, DVD-RW, DVD+RW, DVD+R DL (8.5GB)
CD : All CD-ROM/R/RW formats
Installation Angle Horizontal/Vertical
Audio Specification
Line output level 0.85±0.15 Vrms
S/N Ratio 75dB
Enviroment
Temperature Operating: 5°C to 45°C
Storage: -20°C to 60°C
Humidity Operating: 15-80% ( Non-condensation)
Power Requirement DC+12V±5%, DC+5V±5%
Compatibility Windows 98 SE/ME/XP/2000
Physical Dimensions
WxHxD 145 x 41.3 x 170mm
Weight 0.9kg (typical)

- 4X DVD+R @ 4X

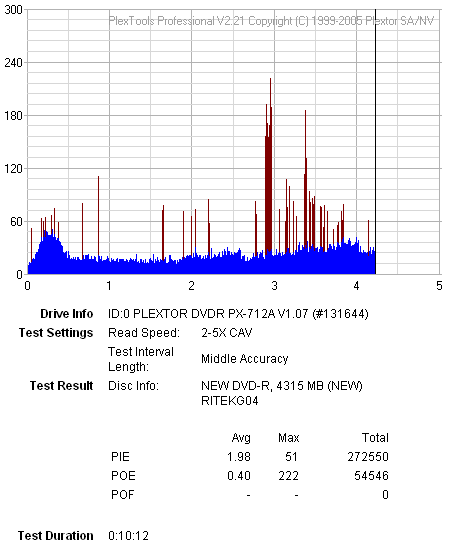

- 4X DVD-R @ 4X

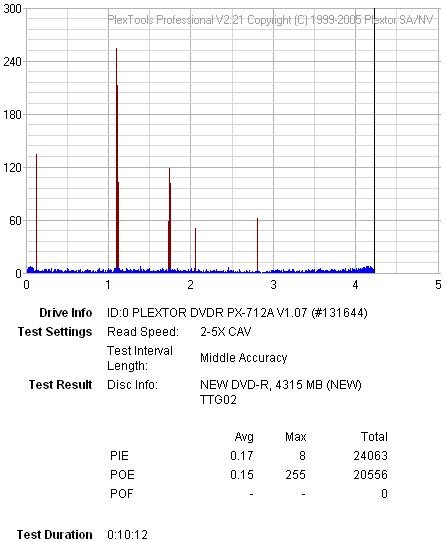

- 8X DVD-R @ 8X ( TTG02)

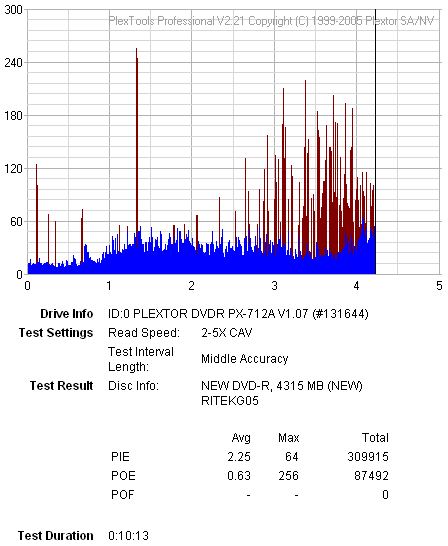

- 8X DVD-R @ 8X ( RITEK G05)

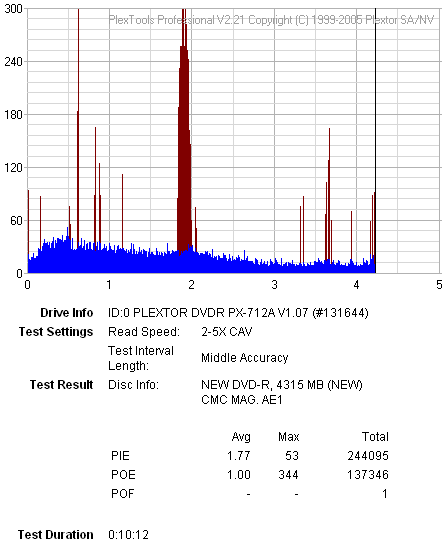

- 8X DVD-R @ 8X ( CMC MAG AE1)

- 16X DVD+R @ 16X ( CMC MAG M01)

- Summary

Media Code ID Speed Time
4X DVD+R RICOHJPNR01 4X 14:16
4X DVD-R RITEK G04 4X 15:01
8X DVD-R TTG02 8X 8:52
8X DVD-R RITEK G05 8X 9:00
8X DVD-R pr. CMC MAG AE1 8X 8:38
16X DVD+R CMC MAG M01 16X 6:19
