Samsung SH-W162L

Jan 9,2006 0

5. Protected Discs



Review Pages

1. Introduction
2. Reading Tests
3. CD Error Correction
4. DVD Error Correction
5. Protected Discs
6. CD Recording Tests
7. CD Writing Quality - Plextools
8. CD Writing Quality - Clover System
9. DVD Writing Tests
10. DVD Writing Quality - Page 1
11. DVD Writing Quality - Page 2
12. DVD Writing Quality - Page 3
13. DVD Writing Quality - Page 4
14. DVD Writing Quality - Page 5
15. DVD Writing Quality - Almedio
16. DVDR DL - Page 1
17. DVDR DL - Page 2
18. Booktype Setting
19. LightScribe Feature
20. Conclusion



At this point we will check the drive's ability to read and backup protected CDs.

- AudioCD protection

For the test procedure, we used three audio discs with different audio copy protection schemes. The ripping process on all protected Audio discs was carried out with Exact Audio Copy v0.9 beta5.

The protected audio discs tested, were:

Audio Discs Protection
Celine Dion - New Day Has Come Sony's Key2Audio
Natalie Imbruglia - White Lilies Island Cactus Data Shield 200
Aiko Katsukino - The Love Letter Cactus Data Shield 200.0.4 - 3.0 build 16a

The Cactus Data Shield 200, contains artificial errors that are not easily bypassed by the reader, while the Key2Audio contains a second session causing problems to readers when trying to read the Table Of Contents (TOC).

The tested tasks are:

- Recognition of the inserted disc (Yes/No).

- Ripping all wav files(with EAC's Burst Mode) to the hard disk through copy&compare function.

- Listening to the produced wav files to detect any possible click/skips.

The drive recognized up to the 12th Audio track in the CDS200 disc,

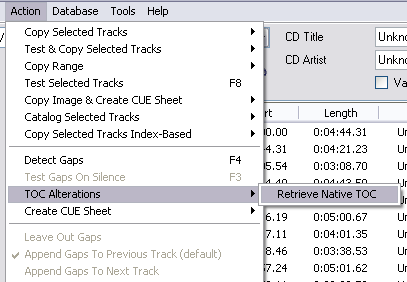

and with the "Retrieve Native TOC" option removed, the drive recognized the 13th track.

The test results are shown in the following table:

Samsung SH-W162L Key2Audio CDS200
Ripping process completed, EAC reports no problems, Read&Test CRC comparison successful for all tracks The drive could not rip the specific media.

The Samsung SH-W162L did not managed to read/rip Cactus Data Shield 200 AudioCD protection.

- Cactus Data Shield 200.0.4 - 3.0 build 16a (Aiko Katsukino - The Love Letter)

This is a "special" CDS200 build, since it doesn't contain any artificial errors which create problems during the ripping process. Most problems occur when trying to write the ripped wav files, since the produced CD-R disc contains C2 and CU errors! This "problem" is rumored to be connected to specific chipset weaknesses.

Samsung SH-W162L CDS 200.0.4 - 3.0 build 16a
Reading performed without any errors.

- Games Protections

To create the image of the various protected titles on the hard disk, we used Alcohol 120% software and the appropriate settings, in accordance with the protection type of the inserted discs. Below you can see the duration of each process as well as the transfer rate in each case.

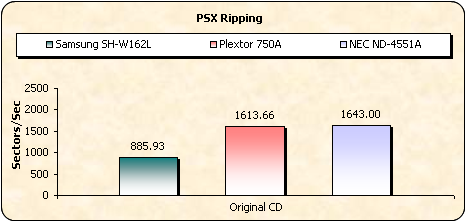

SecuROM and PSX ripping present no problem for the Samsung drive although for PSX, it's ripping rate was around half that of the other two drives. With Safedisc protection, the Samsung drive was quite impressive especially considering the fact that the Plextor couldn't even rip the SafeDisc media, when after three hours, the overall progress was less than 1% completed.

- Writing Tests

The Samsung SH-W162L supports the DAO-RAW writing mode. To check the drive's EFM correction status we used 2 different game titles with two different SafeDisc versions, having the latest software patches installed. After making the images of the various titles onto the hard disk, we burned them (at maximum speed) with Alcohol 120% v1.9.2.3105. Two different discs were recorded for each title; one with the "Rectify Sub-Channel Data" enabled and one with the function disabled.

- Quake 4 - Safedisc v4.6x

- Fifa 2004 - Safedisc v3.1x

Surprisingly enough, the Samsung SH-W162L succeeded in making a working back-up of Safedisc v3.1x, but failed to do the same with Safedisc v4.6x, since there is no drive to date that is able of bypassing this protection scheme.
